| Prod Model: |
WRR/WRP |
| Output Signal Type: |
Mv |
Product Description
r s b type thermocouple Specification:
1. Model:WRP-132;
2. Graduation Mark: S, R, B;
3. Wire number: Simplex type (2cores);
4. Outer protection tube:

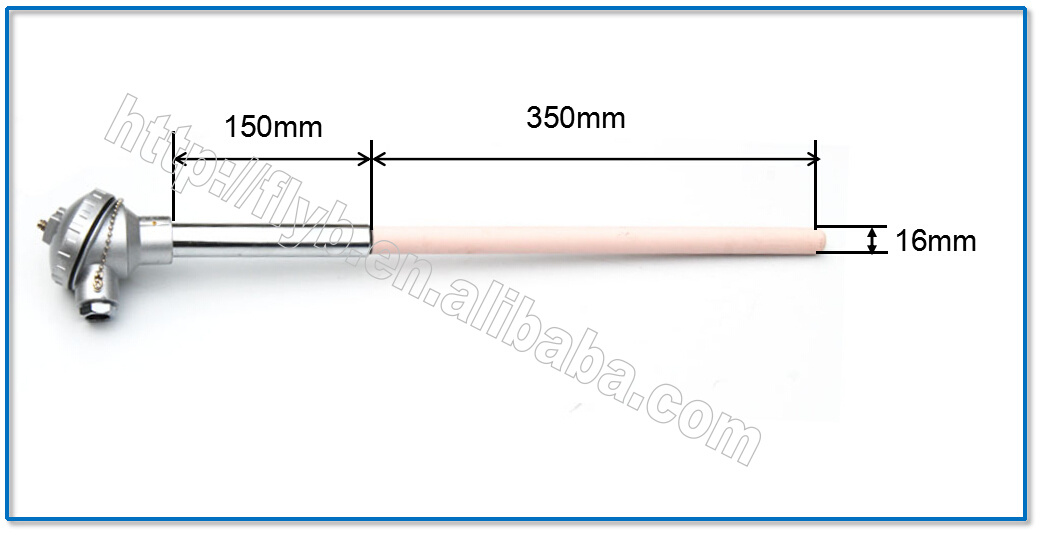

1) Steel tube parts: a.Material :304; b.Diameter: 18mm; c.Length: 150mm
2) Cermaic Part: a.Material: Ceramic Tube; b.Diameter: 16mm c.Length: 350mm
5. Totally Length: 500mm
6. Thermcouple connector details:
1)Model:KZL-033 Water proof model
2)Size:M20*1
3)Cermic block model:2P-C
7. Usage Temperature: More than 1500C
8. Special requirements can be customized !!!
Applications:
- Widely Used In Science and Industry
- Temperature Measurement for kilns
- Gas Turbine Exhaust Application
- Used For Diesel Engines and Other Industrial Processes
R S B Type Ceramic Thermocouple Technical Indicators
Conductir material | Type | Graduation | Spec. of protection tube(mm) | Use temperature°C |
Total Lenght | Length in fluid | external diameter of ceramic tube | Material of protection tube |
PtRh10-Pt | WRP | S | 300 350 400 450 550 650 900 1150 1250 | 150 200 250 300 400 500 750 1000 1100 | φ16 φ25 | High Al content tube | 0-1300 |
PtRh30-Ptrh6 | WRR | B | Corundum tube | 0-1600 |
PtRh13-pT | WRQ | R | φ16 φ20 | High Al content tube | 0-1200 |
Mini PtRh10-Pt | WRP-100 | S | 252 | 252 | φ7 | High Al content tube | 0-1200 |

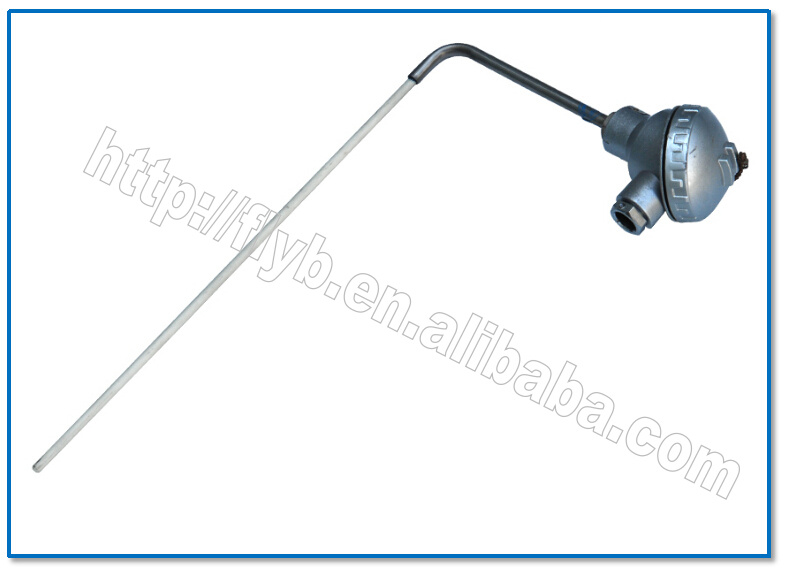

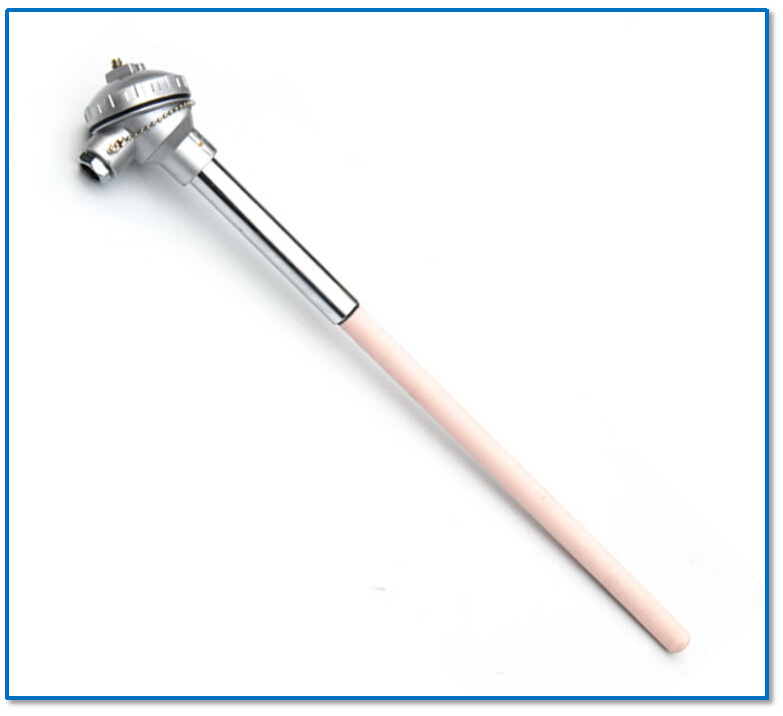

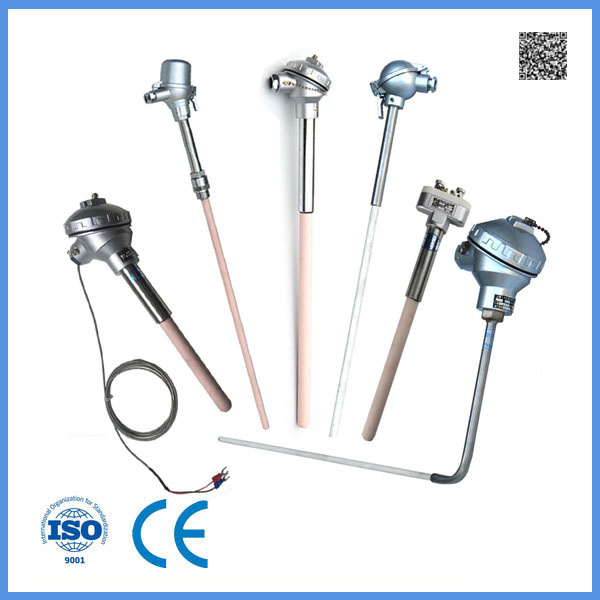

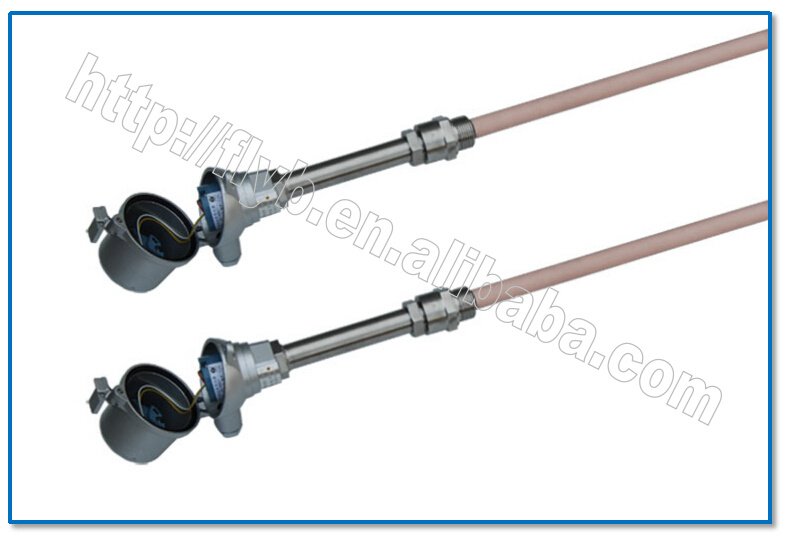

Product Pictures:
Certificates:
FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.
2. When will you arrange the production?
In 12 hours since we get your payment.
3. What is your main products?
Thermocouple, PT100 sensor, termperture controller, infared thermometer and son on.
4. Product certifications?
ISO9001, CE, ROHS, FDA, SGS and other certificates.
5. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.
6. What is your warranty ?
For most of our products, the warranty will be 12 months.
7. When will I get a solution for defective products?
Within 48 hours (on working days )
8. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
9. What is your shipping time?
For General Orders, the shipping time will be 5 workdays.
Shanghai Feilong Meters & Electronics Co., Ltd.
Is a regional high-tech enterprise, and a production base of temperature sensors and temperature control instruments. We have jointly developed and produced a series of thermocouples (thermal resistances) and temperature control electronics with many R & D institutions and academies in Shanghai, they are salable in all over the country and world with the advantage in cost performance. Our products always have famous reputation in the market and win customers'trust as a result of excellent performance, nice appearance, high reliability, advanced technology, and good cost performance. In 2000, we passed ISO9001: 2008 Quality System Certificate and then obtained CE Certification. Our self-developed energy-efficient AC contactor obtained national invention patent and a number of utility patents, as well as China Compulsory Certification. This product has good energy saving effect, long service life and noiseless, and has participated in setting national standard GB21518-2008 . Recently we have developed thermocouples for special conditions, such as solutions of liquid steel, copper water, aluminum water, and zinc water, as well as salt furnace; The thermocouples applied under special environment as cement plant and power plant, which have high accuracy and long service life; New type anti-oxidation tungsten-rhenium thermocouple with low cost and high temperature measurement, which is the ideal product displacing platinum-rhodium thermocouple, some products have reached military level. New products of wireless temperature control and measurement solved the problem for the places where are not convenient for wiring. In 2013, we have obtained National explosion-proof production qualification certificate for explosion-proof thermocouple and thermal resistance and National Good Standardizing Practice Certificate. PTFE tube, plate, bar, gasket, and irregular part produced by our company are ideal products against strong acid, strong alkali, corrosion, and high temperature, which are green, environmental and widely used. With strong technical development team and patent results, we can undertake business for normal and special specifications, and can design & install various large scale and small scale of automatic temperature control box and temperature control room and remote monitoring temperature control systems for customers.
