R Type Thermocouple Temperature Sensor

Name: R Type Thermocouple Temperature Sensor
Brand: all-electronics-online.com
SKU: 805532295
Availability: InStock
Rating: 4.3 (46 reviews)

Price:	Negotiable/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WR
Accuracy:	0.5
Ambiient Temperature:	-10~70 Celsius,
Measurement Range:	-40~1800 Celsius
Display Type:	LCD
Input Signal: Thermocouple:	Rtd:PT100\Cu50\Cu100; K\E\J\T\S\B
Structural Type:	Assemble, Armour
Site Display:	Site Display
Output Signal Type:	4-20mA (1-5V); 4-20mA with Hart Protocol
Certification:	Ce, RoHS, Ex

Product Description

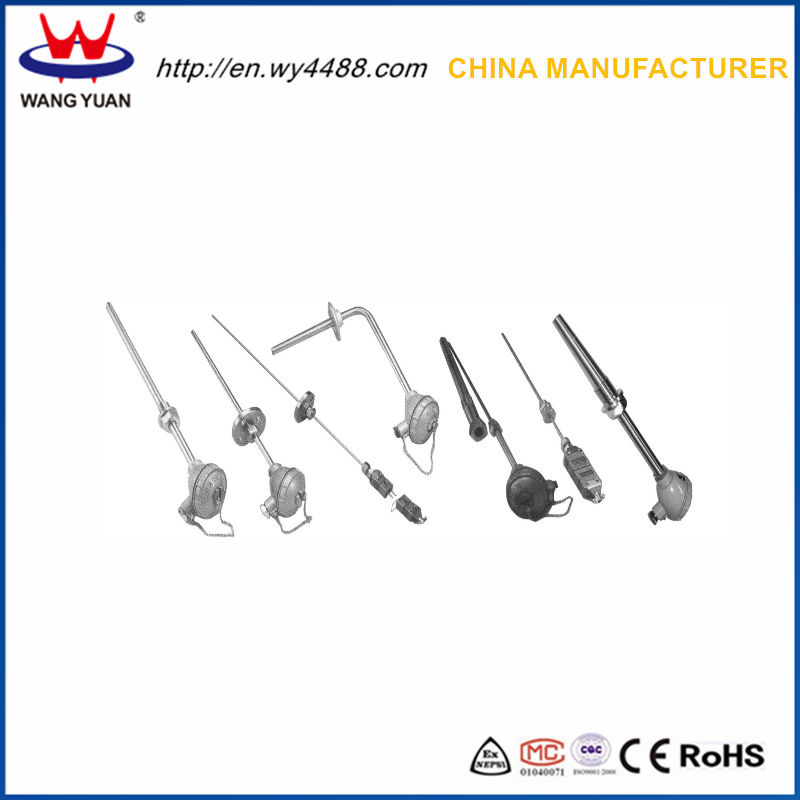

WR type thermocouple temperature sensor

Model: WR

Application
This series assembly thermocouple can be used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food , boiler and other industries.
Description
This series assembly thermocouple can be used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food , boiler and other industries.
Features
Low Thermal Drift
Measurement range:-40~1800ºC
Media: liquid, gas, vapour, solid
Thermocouple type J,K,E,B,S,N optional
Explosion proof, Water proof, Splash proof
Excellent Long Term Output Stability at High Temperatures
Excellent Oxidation, Carburization and Chlorination Resistance
Specification
WR type thermocouple temperature sensor

Model	WR type thermocouple temperature sensor
Temperature element	K,E,J,T, B,S,N, PT100,Cu50
Temperature range	-40~1800ºC
Explosion proof grade	dIIBT4, iaIICT 6
Type	Assembly, Armored
Thermocouple's quantity	Single or double (optional)
Installation type	No fixtures device, Fixed thread, Moveable flange, Fixed flange (optional)
Junction box	Splash proof type, Water proof type, Explosion proof type (optional)
Diameter of Protect tube	Φ16mm SS304, Φ20mm SS304, (optional)

Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.

Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.

Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.

In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.

With our on-site experience, research and development services we are a leader in the industrial automation field, and provide global customers with high quality products and services.
