R Type Three-Phase Power Transformer, Low Magnetic Leakage and High Efficiency (XP-RT-R150)
| Price: |
US $ 10.99-15.99/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
XP-RT-R150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Instrument |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Shape Of Coil: |
R-Type |
| Brand: |
XP Power |
Product Description
Key Specifications/Special Features:-Low profile-Lightweight-High efficiency-Low magnetic leakage-Nice appearance-Lower core losses from no cuts in core and minimized distance between core and windings-Lower stray EM field from round cross-sectional area and balanced windings on either side-Lower temperature rise and noise form round cross-sectional area and tapered slittingApplications: -Medical electronic equipment-High precision measuring and test equipment-Hi-fi loudspeakers-Alarm monitoring equipment-Flameproof power equipment-monitor, printer, computer terminals, fax machine, digital satellite and metro logical instrumentReasons of our top-quality components help your business succeed:-22 years of experience customizing and power transformers and inductors-Your professional and reliable partner for various electronics- Over 1000 buyers value our products-20000m2 factory with 21 production lines and 800 employees- 5 million units annual capacity

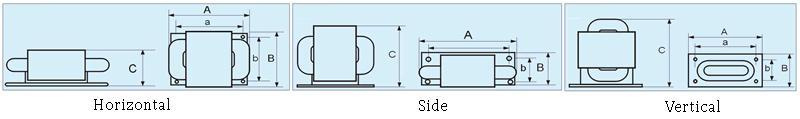

| Specification(VA) | Form | External dimension(mm) | Installment(mm) | Weight(KG) |
| A | B | C | a | b | Φ |
| SR-20 | Horizontal | 104 | 90 | 38 | 90 | 70 | 4*Φ4 | 0.63 |
| Vertical | / | / | / | / | / |
| SR-30 | Horizontal | 110 | 90 | 40 | 96 | 70 | 4*Φ4
| 0.89 |
| Vertical | 105 | 48 | 85 | 70 | 35 |
| SR-50 | Horizontal | 116 | 96 | 42 | 95 | 85 | 4*Φ4
| 1.38 |
| Vertical | 116 | 60 | 107 | 95(65) | 40 |
| SR-75 | Horizontal | 130 | 112 | 60 | 96 | 80 | 4*Φ4
| 1.9 |
| Vertical | 130 | 60 | 115 | 95 | 45 |
| SR-120 | Horizontal | 136 | 128 | 55 | 118 | 100 | 4*Φ5
| 2.5 |
| Vertical | 136 | 55 | 130 | 110 |
|
| SR-150 | Horizontal | 153 | 132 | 60 | 130 | 100 | 4*Φ5
| 3.32 |
| Vertical | 155 | 75 | 128 | 85 | 48 |
| SR-250 | Horizontal | 175 | 148 | 73 | 135 | 110 | 4*Φ5
| 4.9 |
| Vertical | 175 | 80 | 145 | 120 | 56 |
| SR-400 | Horizontal | 178 | 155 | 80 | 155 | 120 | 4*Φ5
| 5.48 |
| Vertical | 178 | 80 | 155 | 150 | 50 |
| SR-500 | Horizontal | 200 | 165 | 80 | 150 | 158 | 4*Φ5
| 6.6 |
| Vertical | 200 | 80 | 165 | 150 | 50 |
| SR-900 | Horizontal | 220 | 190 | 85 | 190 | 145 | 4*Φ6
| 9.5 |
| Vertical | 200 | 100 | 190 | 205 | 56 |
| SR-1200 | Horizontal | 250 | 195 | 110 | 210 | 155 | 4*Φ6
| 13.8 |
| Vertical | 250 | 110 | 195 | 180 | 85 |
| SR-1500 | Horizontal | 270 | 220 | 110 | 220 | 175 | 4*Φ6
| 15.9 |
| Vertical | 270 | 110 | 220 | 210 | 75 |
| SR-2K | Horizontal | 290 | 230 | 110 | 246 | 190 | 4*Φ6
| 19.85 |
| Vertical | 290 | 110 | 240 | 274 | 75 |
| SR-3K | Horizontal | 306 | 260 | 125 | 260 | 185 | 4*Φ6
| 25.14 |
| Vertical | 306 | 125 | 260 | 290 | 95 |
| SR-5K | Horizontal | 360 | 290 | 145 | 340 | 230 | 4*Φ6
| 40.64 |
| Vertical | 360 | 145 | 280 | 330 | 105 |
| SR-7.5K | Horizontal | / | / | / | / | / | 4*Φ10 | 50 |
| Vertical | 390 | 150 | 325 | 148 | 117 |
| SR-10K | Horizontal | 410 | 340 | 225 | 370 | 310 | 4*Φ10 | 68 |
| Vertical | 410 | 183 | 340 | 310 | 105 |
| SR-15K | Horizontal | 450 | 380 | 250 | 400 | 340 | 4*Φ10 | 83 |
| Vertical | 450 | 220 | 380 | 370 | 120 |
| SR-20K | Horizontal | / | / | / | / | / | 4*Φ10 | 108 |
| Vertical | 540 | 240 | 380 | 470 | 120 |
| SR-30K | Horizontal | / | / | / | / | / | 4*Φ10 | 148 |
| Vertical | 625 | 300 | 486 | 558 | 137 |
