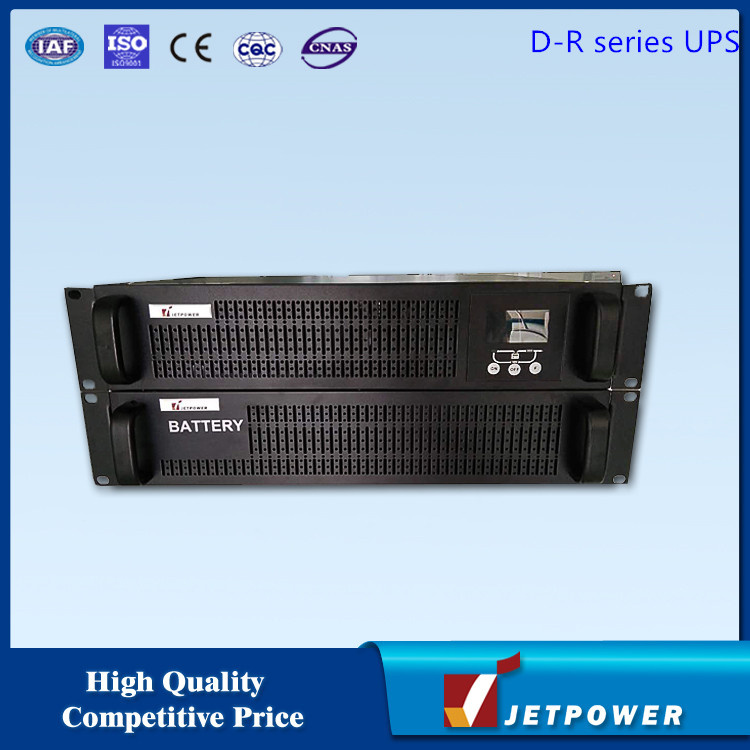

Rack Mount Online 10kVA UPS
| Price: |
US $ 200-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
D-R 10K |
| Design: |
Online UPS |
| Wave Form: |
True Sine Wave |
| Input Voltage Range: |
110VAC-288VAC |
| Output Voltage: |
220V |
| Battery Voltage: |
192VDC |
| Output Power Factor: |
0.8 |
| Capacity: |
10kVA/8000W |
| Efficiency: |
92% |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overload |
| Brand: |
Jetpower |
Product Description
Dragon-R Series Rack Mounted High Frequency Online UPS ( 1-10K)
Product Snapshot:
Model: D-R 10KL without battery
Capacity: 10KVA/8000W (1-in/1-out)
Keys:Rack mounted , Online, High Frequency, Pure Sine Wave Output. Single Phase
Specifications:
| Model | 1K | 1KL | 2K | 2KL | 3K | 3KL | 6KL | 10KL |
| Rated Capacity | 1000VA | 2000VA | 3000VA | 6000VA | 10000VA |
| 800W | 1600W | 2400W | 4800W | 8000W |
| Input Voltage Range | 90±5~290±5VAC | 176~276VAC |
| Input Current (Max) | 6A | 12A | 16A | 31A | 60A |
| Input Frequency | 40-70Hz |
| Input Power Factor | Conformity EN60555-2 (≥0.95) | ≥0.95(Max) |
| Output Rated Voltage | 220VAC(1±2%) | 220VAC(1±1%) |
| Output Rated Current | 4.55A | 9.1A | 13.6A | 27.3A | 64A |
| Output Frequency | (50±2)Hz |
| Output Power Factor | 0.8 |
| Waveform | Sine Wave |
| Waveform Distortion | Linear <=7% when RCD 100% loading (Non-line); Linear <=3% when RCD 100% loading (Line) |
| Overload Capacity | >105% <125%-50s; >125% <150%-25s; >150%-300ms | 100%~125%, 1 minute to transfer to bypass; >150%, 100ms to transfer to bypass |
| Transfer Time | 0ms |
| Type of Battery | Sealed lead acid maintenance-free |
| Efficiency | 87% | 91% | 90% | 92% |
| External Battery Voltage | 3*7Ah | 36 VDC | 6*7Ah | 72VDC | 8*7Ah | 96VDC | 192VDC/240VDC |
| Interface | RS232, SNMP |
| Optional | USB, SNMP, Dry Contactor, Parallel Kit | USB, SNMP, Dry Contactor, Parallel Kit, Battery Cabinet |
| Display | LCD/LED |
| Temperature | Work:0ºC~40ºC; Storage: '-15ºC~45ºC |
| Altitude | <1000m |
| Work Humidity | 0~95% |
| Size(W*D*H,mm) | 2U 482*450*88 | Standard type (3U):482*680*132.5 Long backup type (2U):482*450*88 | 3U 482*680*132.5 |
| Net Weight (kg) | 14.3 | 8 | 22 | 9.8 | 26 | 9.8 | 20 | 25 |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
