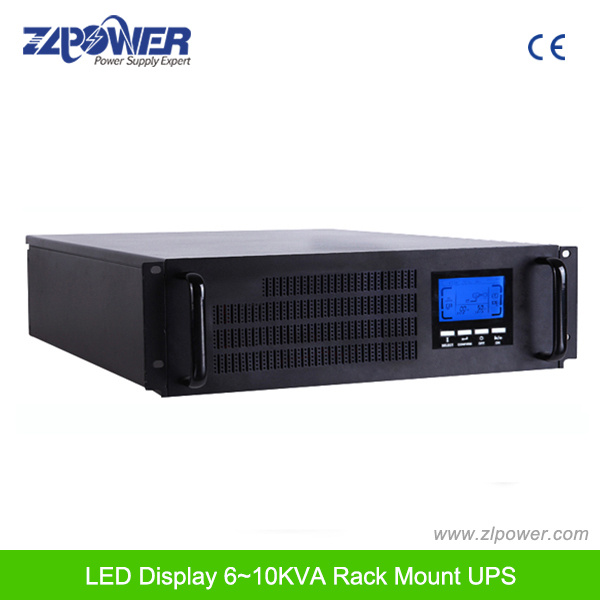

Rack Mount UPS, Rack UPS, 1kVA-6kVA for Server
| Price: |
US $ 600-1500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
RM1K~RM10KL |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe |
| Operation Temperature: |
0-40° |
| Battery Type: |
Sealed Lead Acid Battery |
| Backup Time: |
5-25mins |
| Demension: |
482.6*450*88mm |
| Weight: |
16kg |
| Overload Capacity: |
107%-150%% Fro 30sec, 150% For300ms |
| Operating Battery: |
12V 7.2ah |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overcurrent |
| Standby UPS: |
Pure Sine Wave |
| Brand: |
Zlpower |
Product Description
Model: Rack Mount UPS, Rack UPS, 1kVA-6kVA for server
1. High Frequency UPS 1kVA~6kVA
2. Zero transfer
3. SNMP monitor software
4. CE
Key feature:
High frequency UPS with GIBT technology
Module design UPS
Overload and short circuit protection
LED statue display( LCD display)
Intelligent slot for SNMP adaptor(optional)
Cold start
Bypass protection
APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc
| Rack Mount UPS Model | RM1KE | RM2KE | RM3KE | RM1KE-L | RM2KE-L | RM3KE-L | RM6KE-L | RM10KE-L |
| Rated Power | VA/W | 1kVA/0.7kW | 2kVA/1.4kW | 3kVA/2.1kW | 1kVA/0.7kW | 2kVA/1.4kW | 3kVA/2.1kW | 6kVA/4.8kW | 10Kva/8Kw |
| Input | Phase | Single Phase with Ground |
| Nominal Voltage | 110/115/120Vac or 220/230/240Vac | 220/230/240Vac |
| Voltage Range | 60-138VAC or 115 ~ 300VAC | 176 ~ 276VAC |
| Frequency Range | 46 ~ 54Hz(default), user adjustable within 40~60Hz | 46 ~ 54Hz |
| Power Factor | 0.97 | 0.98 |
| Connection | IEC320-10A inlet | IEC320-16A inlet | IEC320-10A inlet | IEC320-16A inlet | Terminal Block |
| Output | Phase | Single Phase |
| Voltage | 110/115/120Vac or 220/230/240VAC ± 2% | 110/115/120Vac or 220/230/240VAC± 1% |
| Frequency | 46~54Hz or 50Hz ± 0.2Hz (Line mode) | 46~54Hz (Line mode) |
| 50Hz ± 0.2Hz ( Battery mode) | 50Hz ± 0.05Hz ( Battery mode) |
| Waveform | Pure Sine Wave |
| Overload Capability | 108%~150% for 30 sec., 150% for 300 ms | 105%~130% for 10 min.,130% for 1 min. |
| Current Crest Ratio | 3:1 |
| Connections | IEC320 -10A * 4 | IEC320 -10A * 4 | IEC320-10A and Terminal Block | IEC320 -10A * 4 | IEC320 -10A * 4 | IEC320-10A and Terminal Block | IEC320-10A * 4 and Terminal Block |
| Bypass | Automatic Transfer | on overload and UPS failure |
| Before UPS Power-on | Default "NO", user adjustable to "YES" | Yes |
| Voltage Range | 80~264VAC (Default), user adjustable within 80~286VAC | 176 ~ 261VAC |
| Transfer Time | 0 ms; less than 4 ms from inverter to bypass and vice versa | Zero |
| LED indicators | Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault |
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault |
| Communications | RS-232 Serial Interface |
| Intelligent Slot; |
| OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC) |
| Network Surge Protection | RJ45 I/O port available for network or Fax/Modem |
| Environmental | Operating Temperature | 0 ~ 40centi-degree |
| Operating Humidity | 20 ~ 90% non-condensing |
| Main Unit | Net Weight (Kg) | 16.3 | 10.3 | 11.2 | 9.1 | 11.5 | 12.3 | 18.3 | 20.3 |
| Dimensions (L x W x H) mm | 482 x 420 x 88 (2U) | 600 x 482.6 x 130 (3U) |
| Battery Pack | Type | Internal Batteries | External Battery Pack |
| Nominal DC Voltage | 36VDC | 96VDC | 36VDC | 96VDC | 192VDC |
| Battery Numbers & Capacity | 3Pcs *12V7.2Ah | 8Pcs *12V7.2Ah | 8Pcs *12V7.2Ah | Depending on the capacity of external battery packs |
| Backup Time (Full load) | 5 min | 9 min (with 1 BP) | 5 min (with 1 BP) |
|
| Recharge Time | 5hrs to 90% | 5hrs to 90% | 5hrs to 90% |
| Charging Current (Max.) | 1.0A | 1.0A | 1.0A | 8A±1A | 4.2A |
| Charging Voltage | 41.1Vdc±0.6V | 110Vdc±0.4V | 41.1Vdc±0.6V | 110Vdc±0.4V | 216Vdc±1%V |
| Net Weight (Kg) | --- | 25.3 | 25.3 | --- | --- | --- | --- |
| Dimensions (L x W x H) mm | --- | 482 x 420 x88 (2U) | 482 x 420 x88 (2U) | --- | --- | --- | --- |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
