Rack Mounted UPS, High Frequency Online UPS 1KVA-10KVA

Name: Rack Mounted UPS, High Frequency Online UPS 1KVA-10KVA
Brand: all-electronics-online.com
SKU: 674128795
Availability: InStock
Rating: 4.7 (37 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RM1K~RM10KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Rack
Height:	2u, 3u
Technology:	Mcu Control, IGBT
Communication Port:	RS232, USB, Snmp, RJ45, Rj11
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit

Product Description

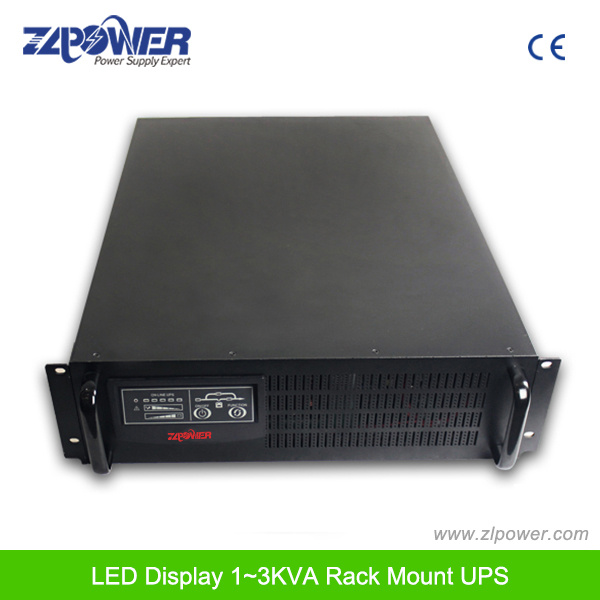

Rack mounted UPS, High frequency online UPS 1KVA-10KVA

Product Name: Rack UPS TR series
Model: RM1K~RM10KL

IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz

KEY FEATURES
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On battery power-on function
Smart RS232 communication interface
Intelligent slot available
Sealed lead-acid, maintenance free battery
True online double conversion technology with advanced microprocessor control

APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc

Model

RM1K

RM1KL

RM2K

RM2KL

RM3K

RM3KL

RM6KL

Capacity

1000VA/800W

2000VA/1600W

3000VA/2400W

6KVA/4800W

Input

Voltage

(115~300)VAC

(176~276)VAC

Frequency

46~54Hz/56~64Hz

Output

Voltage

220/230/240(1±1%)VAC

Frequency

50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz);Battery Mode: 50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode(AC Range 56~64Hz);Battery Mode: 60Hz(1±0.2%)

Output Wave Form

Sine Wave

Back-up Time

Full Load

≥5′

Depends on the capacity of the external batteries bank

≥9′

Depends on the capacity of the external batteries bank

≥5′

Depends on the capacity of the external batteries bank

Half Load

≥14′

≥21′

≥15′

Battery Nominal Voltage

36VDC

96VDC

192VDC

Transfer Time

0ms

Overload Capacity

110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms

105%~130% 10min, over 150%1min

Communications

RS-232+Intelligent Slot

Operating Environment

Temperature

0C~40C

Humidity

15%~90%

Dimensions(W*D*H)mm

482.6*450*88

482.6*600*130

Net Weight(Kg)

10.5

11.5

12.5

19.5
