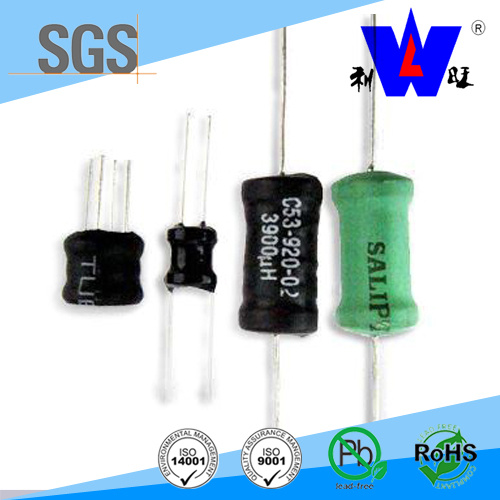

Radial Leaded Power Axial Leaded Power Inductor

Prod Model:	inductor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	8*10,9*12,6*8
Core:	Mn-Zn ,Ni-Zn
Sleeve Tube:	UL Sleeve Tube
Wire:	Enamelled Wire
Pin Pitch:	5mm
Color:	Black &Blue
Type:	Fixed Inductor
Structure:	Magnetic Bead

Product Description

Radial leaded inductor

Key Specifications/Special Features:
Applications: Used in switching regulators, power amplifiers, power supplies, SCR and Triac controls, speaker crossover networks, RFI suppression and filters
Inductance: 12uH to 15mH
Inductance tolerance: ± 10% and ± 20%
Operating temperature: -25 to +85° C
DCR (maximum): 0.002 to 3.390Ω
Saturated current: 1.3 to 27A
Testing: Inductance is tested on an HP4284A at 1.0kHz 0.1V
Mounting: Center hole furnished for mechanical mounting
Miscellaneous: Non-standard tolerances and other values are available
RoHS Directive-compliant
Additional information: Additional electrical and physical information available upon request:
Axial and radial leaded power inductor
UL-polyolefin shrinking tubing
Leaded inductor with ferrite core
High-current
High-reliability
Low-resistance
Radial choke inductors
Axial lead fixed inductors
Small, medium and large quantities are available
Packing: Bulk
Type: Size indctance tolerance
LGB-0810 1mH +-5% +-10% 20%
0406
0507
0912
1015
0608








Application:
1. Output smoothly in Power Supply;
2. Chopper Control;
3. Output smoothly(LPF) in large current digital amplifier
4. Switching Mode Power Supply output smoothing circuit;
5. Electromagnetic Interference(EMI) and Radio Frequency Interference(RFI) filers;
6. Other oscillation circuits.

Why Choose us?
1. Samples timely
2. We have RoHS and REACH certification.
3. Provide third-party inspection certification (such as SGS report).
4. Our Products has the UL Insulation System. Quality is guaranteed.
5. Our company has pass the ISO9001: 2008 and ISO 14001: 2004

Note:
1. MOQ: 1000PCS
2. Delivery time: 10-12 days or as per customer's quantity
3. Payment terms: 50% deposit of total amount in advance and the rest before ship.
4. Samples is free, but the fee of freight must be paid by recipient
5. Port: Shenzhen
6. Package: As per customer's requirements

We will feel appreciated if you can provide the parameters of the product or the photo of the item.
All products of the size, electrical performance can be designed
According to customer requirements in R&D.
Don't hesitate to contact us if any interested in our products.
