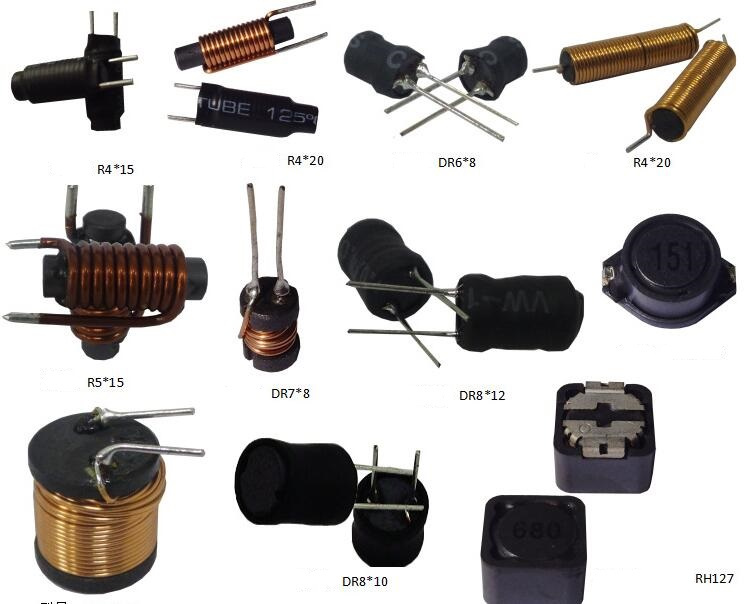

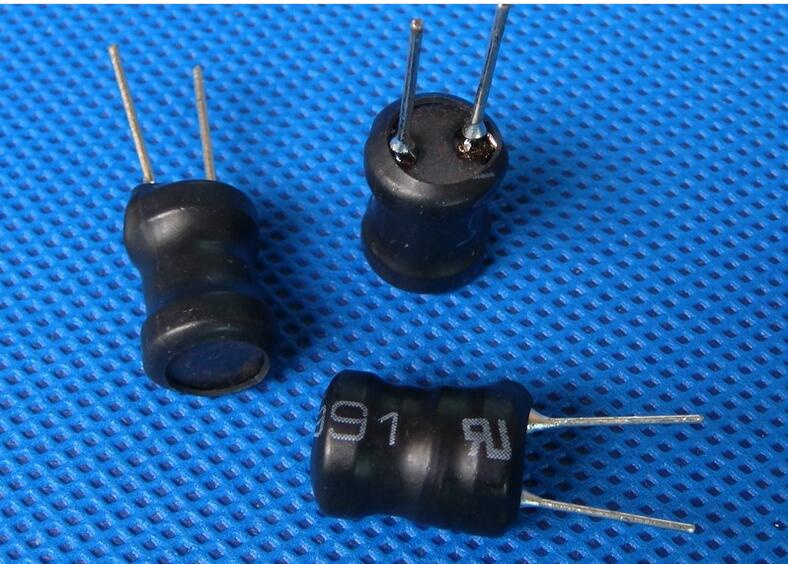

Radial Type Inductors for LED with RoHS

Prod Model:	6X8
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer

Product Description

Applicattions of Radial Type Inductors for LED with RoHS:
1. Power supplies, DC-DC converters
2. VTRs
3. Computers
4. Home Electric Appliance
5. printer
6. color TV
7. Lighting and car electronics

Features of Radial Type Inductors for LED with RoHS:
1. Contain high-frequency ferrite
2. Comparaticely large rated current
3. wide range of inductance
4. high reliability
5. inductance tolerance:±5%,±10%,±20%
6.shielded and unshielded types available

Storage conditions:
Do not expose to direct sunlight


Component	Materials
1.Core	Ferrite core
2.Wire	Poiyurethane enameled copper wires
3.Lead wire	Tinned copper wires
4.Tube	Heat shrinkable tube,PVC or UL
5.Glue	Epoxy resin

Notes:
1.Idc current value obtained when current flows and the pemperature has risen to 25ºC or when DC current flows and the initial value of inductance has fallen by 10%,whichever is smaller.
2.When the series of inductor used in electronic ballasts,L value of the test frequency generally 1KHZ or 10KHZ to prevail.
3.Test meter:L&Q HP4284A;Srf HM2770;For special specifications please contact with us.
4.The series of inductor,we offer a cut pin and molding process.

Advantage of our company:
1. Fastest lead time
2. Factory price driectly
3. Low minimum order
4. Standard Boxes, Special carton was required!
5. Large Inductance range
6.professional & experienced management team

Selling point:
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand
