| Prod Model: |
AP-05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
10 Months |
| Function: |
Headphone Plug |
| Shape: |
EP |
| Standard: |
Motorola Radio |
| Certification: |
Ce/RoHS |
| Application: |
Two Way Radio |
| Brand: |
Raytalk |
Product Description
Motorola GP900/HT1000/XTS to Visar 3.5mm Threaded Plug Type Audio Accessory Adapter
Built to receive Quick Disconnect connector
| Product Specs | Professional grade
Screws onto radio
Prevents wear and tear on radio connection
8 month warranty
|
Adaptor is not compatible with Motorola Quick Discount products such as surveillance kits, mics etc.
This well-priced audio accessory adapter is manufactured using only the highest quality components. The use of the audio adapter for the models listed below is generally a more cost effective option in the long-term than purchasing hardwired accessories.
This is a compact audio adapter for use with the following Motorola handheld transceivers: Astro Digital XTS3000 Model I, Astro Digital XTS3000 Model II, Astro Digital XTS3000 Model III, Astro Digital XTS3500 Model I, Astro Digital XTS3500 Model II, Astro Digital XTS3500 Model III, Astro Digital XTS3500R Model I, Astro Digital XTS3500R Model II, Astro Digital XTS3500R Model III, GP1200, GP900, GP9000, HT1000, HT1100, HT6000, JT1000, Mö Bius, MOF230, MT2000, MT2100, MT6000, MT6000E, MTS2000, MTS2010, MTS2013, MTX2000, MTX8000, MTX838, MTX9000, MTX-LS, PTX1200, PTX3600, etc. As well as with Motorola Astro 25 Network Portable I, II, and III handheld transceivers: MT1500, PR1500, XTS1500, XTS2250, XTS2500, XTS4250, and XTS5000.

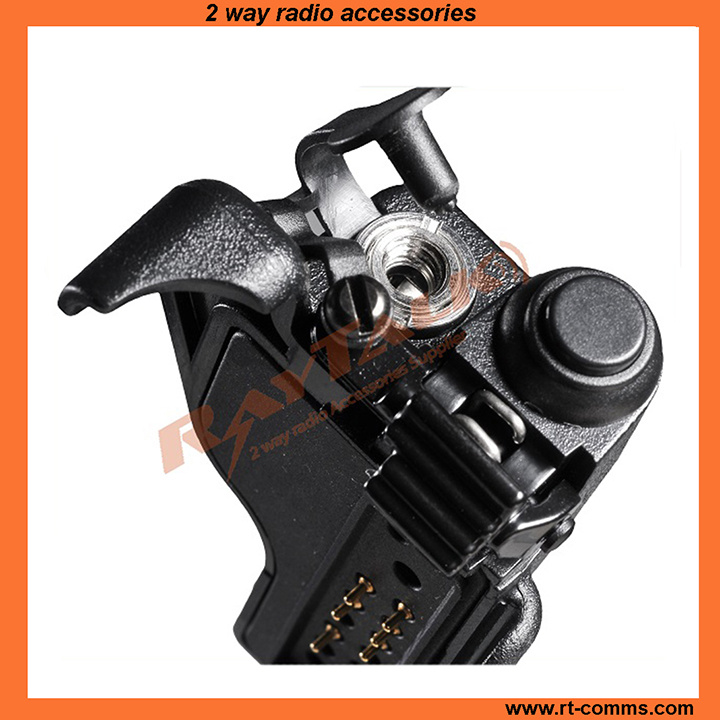

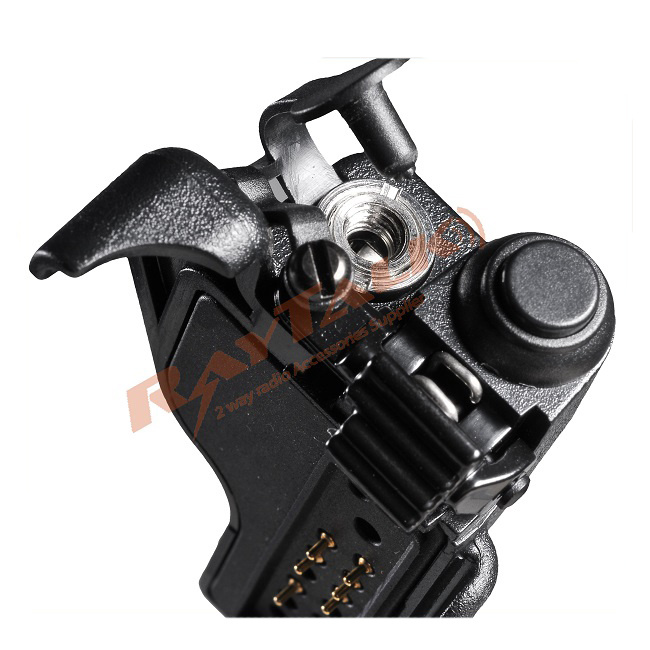

It enables you to use above mentioned radios with the headsets designed for Motorola Visar handhelds fitted with a 3.5mm threaded connector. The adapter is secured to the radio side with a single screw fixing and incorporates 3.5mm threaded socket to fit a standard Visar plug. The socket, with integral dust cover fitted, is located on the top of the adapter to minimise the overall width when an accessory is connected.
There are a few essential benefits using this audio adapter:
Accessories that plug into the adaptor are a cheaper option than the direct connection accessory.
Quick disconnection of the accessory is ideal for staff sharing a radio but not sharing the accessory.
Different staff can use a variation of accessories on the one radio with the ability to quickly interchange.
In the event that an accessory is damaged the replacement cost is far cheaper
Other audio adaptor for Motorola/Kenwood/Icom/Hirose
AP-01: Adaptor for Motorola GP328/HT750/HT1250/PR5150 to Motorola 2 pin connector
AP-01H:Adapter for Motorola GP328 to Hirose 12 pin connector
AP-02: Adaptor for Motorola GP344/EX500 to Motorola Visar(3.5mm threaded connector)
AP-02A: Adaptor for Motorola GP328plus/gp344/ex500/ex600 to Motorola2 pin connector
AP-03: Adaptor for Kenwood TK385 Multi pin to Kenwood 2 pin connector
AP-04: Adaptor for MOTO TRBO to Motorola 2 pin connector
AP-04H:Adapter for Motorola HT750 to Hirose 6 pin connector
AP-05: Adaptor for HT1000/GP9000/XTS3000 to Motorola visar(3.5mm threaded connector)
AP-06: Audio adaptor convert Icom multi pin to 2 pin connectors, for IC-F50/F51/F30GS
AP-07:Adaptor for Moto DP2400/DP2000 to Motorola 2 Pin Connector
Hirose series adaptor
AP03-Hirose: Kenwood TK385 Audio Adapter to Hirose Female connector
Available for: TK-280, TK-290, TK-380, TK-390, TK-480, TK-481, TK-2041, TK-2140, TK3140, TK-3148
AP04-Hirose: MotoTRBO DP3600 Audio adapter to Hirose Female connector, Available for: XPR6300, XPR6350, XPR6500, XPR6550, APX7000.
AP05-Hirose: Motorola HT-1000 Audio Adapter to Hirose Female connector,
Available for: GP900, GP9000, HT1000, JT1000, MT2000, MTS2000, MT6000, MTX838, MTX900, MTX1000, MTX8000, MTX9000, MTX-LS, XTS2000, XTS2500, XTS3000, XTS3500, XTS5000/5100/7700.
AP06-Hirose: Allows the use of accessories with Hirose plug Provides a quick disconnect for audio accessorie. Available for GP328, GP340, HT750, PRO5150 etc
