Radio Transceiver with High Performance

Name: Radio Transceiver with High Performance
Brand: all-electronics-online.com
SKU: 674904755
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,others
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

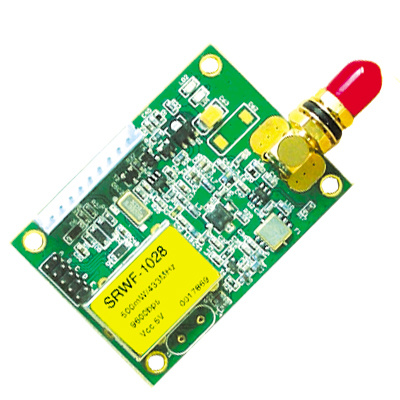

Prod Model:	SRWF-1028
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions:	53 X 38 X 10mm
Type:	Wireless
Information Content:	Data
Condition:	New
Support Network:	RF

Product Description

High power and long RF line of sight range
Stable and safe cable-free data links
Integrated high performance TI CC1020 chip and ATMEL MCU
Easy-to-use, perform "play and plug"
Supported network topology: Point to point and point to multi-point
Modulation: Half-duplex
Communication: GFSK/FSK
Frequency band: 403, 433, 470, 868 and 915MHz
Output power: 27dBm (500mW)
Rx sensitivity: -115 to -119dBm
Channels: 8 (default), 16 or 32 (customized)
Data rate: 1, 200 to 19, 200bps optional
Interface: Selectable TTL, RS232 and RS485
Dimensions: 53 x 38 x 10mm
RF line of sight range: 4, 500m in open field
Supply voltage: +4.5 to 5.5V DC
Tx current: 300 to 550mA
Rx current: 32 to 38mA
Power-down current: 5 to 30μ A
Operating temperature: -20 to +70° C

Founded in 2004, Minsen Meter Co., Ltd., is dedicated to design, manufacturing and marketing of compact short range radio modules and radio modems for rapid implementation of cable-free data links.

Sunray wireless provide high-quality, cost-effective and easy-to-integrate RF products for operation in the license-free ISM bands at 403/ 433/ 470/ 868/ 915 MHz and 2.4 GHz. The products include a range of RF transceivers, RF modules, RF modems as well as complete AMR equipments & systems

Our built-in radio modules are fully integrated wireless solutions, and allow clients to make any product wireless without RF experience and without months of hardware as well as software development time.

All process complies with ISO 9001: 2000 standards. Our products are CE/FCC compliant. Only the best quality materials are used. Thanks to the great standard of workmanship, we win good reputation and enjoy long term & mutually beneficial business relationship with many domestic and international customers.

Inquiry today! Your ODM/OEMrequests are Welcome.
