| Prod Model: |
f21-e1b |
| Name: |
Radio Transmitter Receiver Remote Controller Manuf |
| Protection Level: |
IP65 |
| Application: |
Audio / Video Players |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AA Battery |
| Voltage: |
AC/DC18-65V,AC/DC65-440V |
| Material: |
Glass Fiber Reinforced Nylon |
Product Description
Radio Transmitter Receiver Remote Controller Manufacturer f21-e1b
| name | Radio Transmitter Receiver Remote Controller Manufacturer f21-e1b |
| number of buttons | 6 single speed buttons+start/alarm button+stop+security key |
| transmitter size | 16.4*7.5*4.6cm |
| receiver size | 18.7*8.6*7.9cm |
| protection degreen | PI65 |
| housing material | glass fiber-reinforced nylon |
| operating temperature | -35°C ~ +85°C(not take into battery into consideration) |
| security code | 43 billon |
| control distance | up to 100m |
| frequency range | VHF:310.0325-331.165MHZ
UHF:425.5925-446.725MHZ |
| transmit power | <10dbm |
| receive sensitivity | >-110dbm |
| transmitter power | DC3V( need 2 pieces 1.5V battery , AA size) |
| receiver power | AC/DC18-65V , AC/DC65-440V |
| voltage warning | TX Red LED will flash slowly when the volts under 2.2V,unable to start TX under 1.8V. |
| fault detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX RED LED will flash slowly:
1.Please change two new batteries. |
| security measures | if the receiver haven't receive the singal , transmitter will retransmit same singal in 1.5s , if receiver still haven receive it ,receiver power will turn off in 2s to avoid unexpect things |

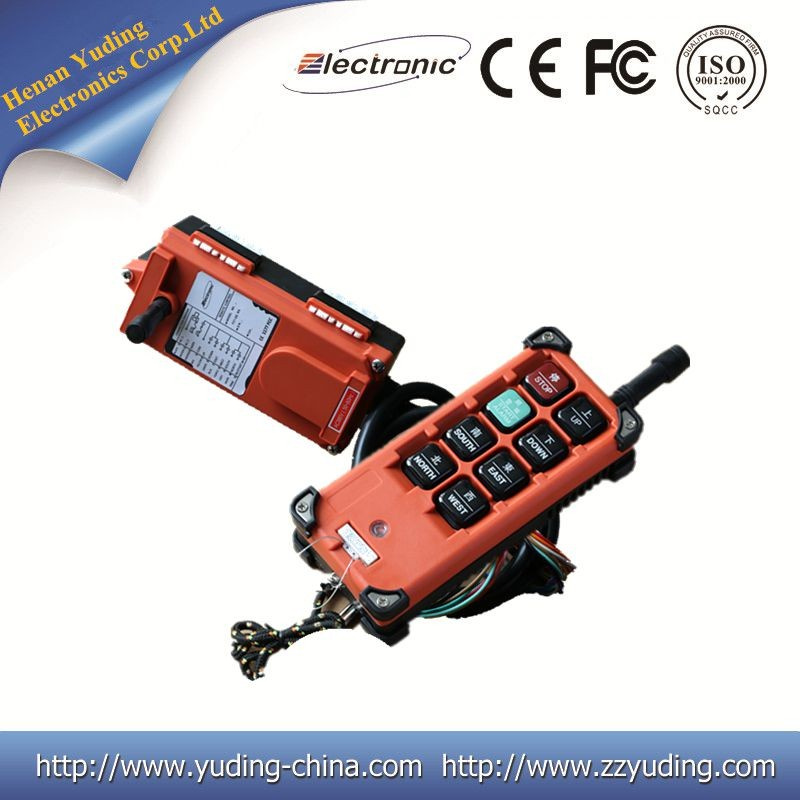

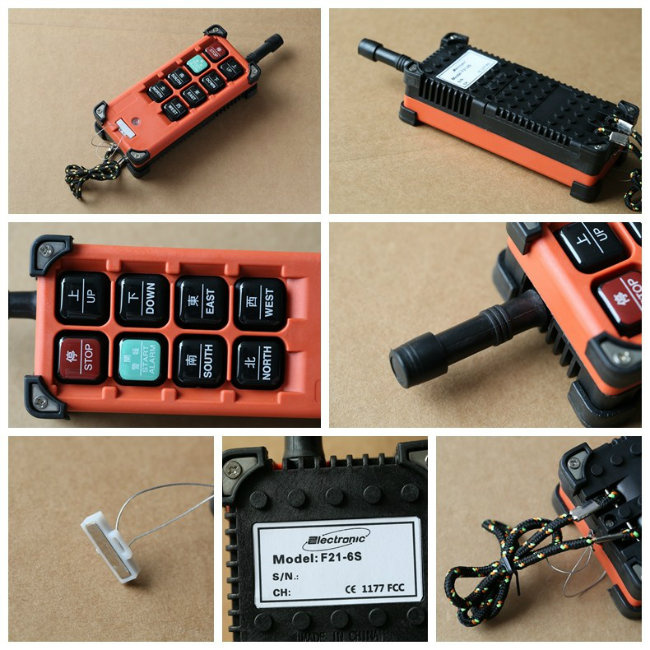

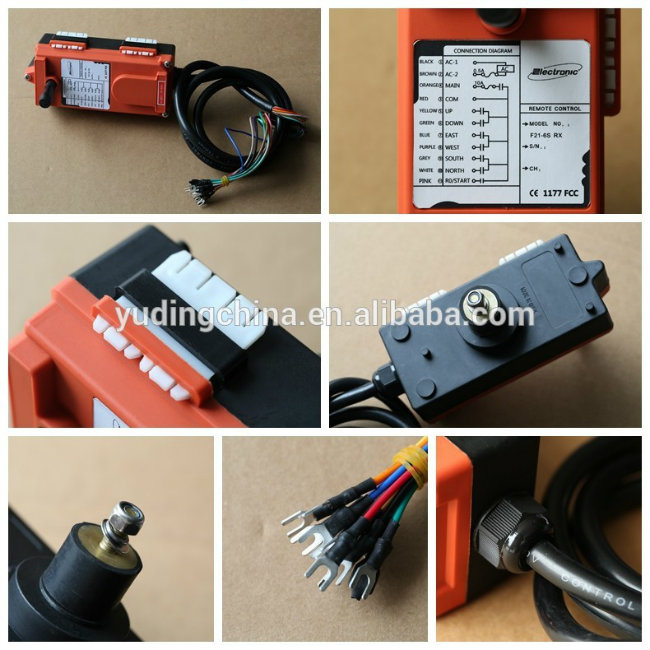

Radio Transmitter Receiver Remote Controller Manufacturer f21-e1b pictures
Industrial wireless remote control is a device that use radio transmission to realize remote-
controlled operation or remote control of industrial machinery ,f21-e1b industrial remote
control is widely used in machinery filed such as lifting machinery ,construction machinery , cargo loading/unloading machines , iron-smelting and steel -making automobilmachinery ,paper-making and chemical industry , shipbuilding , railroad , bridge , tunnel construction
Radio Transmitter Receiver Remote Controller Manufacturer f21-e1b for industrial machinery packing and shipping details
1.usually one set /inner carton , 10 sets /outer button
2.By DHL / TNT / UPS / EMS / SEA
About us
Henan Yuding electronics co.,ltd was founded in 2010 years, mainly for industrial radio remote control device such as F21 serises , F24 serises ,C-E1Q, 60 etc ,production line is more than 5000sq.m ,more than 400 employee , we has build multiple internationally leading SMT production lines , BGA production lines and DIP production lines , we have obtainer ISO9001-2008 ,CE certificate and Anti-explosion certification in 2011 , on the other side ,our company accept OEM,ODM for different mainboard ,LED ,EPC,FPC etc .
Certificate for our industrial wireless radio remote control f21-e1b
FAQ
1.are you manufacturer or trading company?
yes , we are manufacturer , more than 10 year experience in industrial radio remote control system we have our own R&D department , more than 15 production lines
2.what's your MOQ?
one set is accept for trail order
3.how long is the guarantee?
one year warranty , technical support always
4.what's your delivery time?
usually 3-10 working days according to your order quantity
5.how is your quality control?
all working process according to ISO9001-2008 , each industrial radio control equipment will be checked by machines two times and by work stuff one time , total 3 times
6.what certificate you have ?
ISO9001-2008 , CE ,FCC
7.what's your payment terms?
usually by T/T , also accept western union ,L/C at sight
contact us
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
