Rail-Mounted 4-20mA Signal Isolation Distributor (Get Power from Output Terminal)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
ISO 4-20mA-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Signal: |
4-20mA |
| Output Signal: |
4-20mA |
| Power Supply: |
Non |
| Installation: |
35mm DIN Rail-Mounted Type |
| Usage: |
Consumption Sensor, Acceleration Sensor, Ray Sensor, Position Sensor, Liquid Level Sensor, Speed Sensor, Angular Velocity Sensor, Thermal Sensor, Pressure Sensitive Sensor |
Product Description
Rail-mounted 4-20mA Signal Isolation Distributor (Get Power from Output Terminal)
DIN3 ISO 4-20MA-F Series
4-20mA Isolation Distributor Features:
>Two-wire 4-20mA signal loop (explosion proof) input.
>Two-wire 4-20mA power distribution, active output.
>High precision and linearity in full measuring range (error <0.2%).
>3KVDC high isolation between input and output.
>Low impedance (overall pressure drop <2V)
>No external components and power required.
>DIN Rail 3 small size, UL94V-0 flame retardant package.
> Power distribution for sensor: 16V ~ 21.5VDC
>Frequency response (small signal bandwidth):2KHZ (Io=20mA)
>Industrial operating temperature range: - 45ºC ~ + 85ºC
4-20mA Isolation Distributor Applications:
>Supply power to two-wire passive sensor and signal transmission.
>PLC, DCS analog signal isolation and data acquisition.
>Ground wire current loop isolation and interference inhibition.
>Monitoring and controlling signals from metering and instruments to sensors
>Analog signal data acquisition and long-distance transmission without distortion.
>Electric meters, medical equipments monitoring.
>Isolated safety bar for mining or explosion-proof equipments.
4-20mA Isolation Distributor Model Selection:
4-20mA Isolation Distributor Parameters:

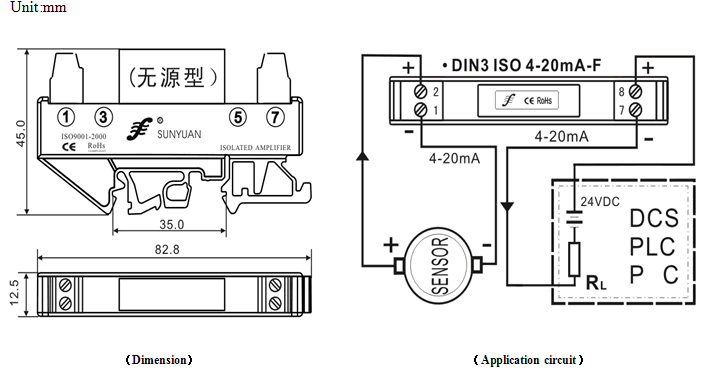

4-20mA Isolation Distributor Dimension & Wiring:
Note: For detailed parameters, please inquire us for data sheet.
