| Prod Model: |
DIN1X1 ISO AC-P-O Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
AC Current/Voltage |
| Output: |
DC 4-20mA/0-20mA/0-5V/0-10V/1-5V |
| Isolation Voltage: |
3000VDC |
| Auxiliary Power Supply: |
5VDC, 12VDC, 24VDC, etc |
| Accuracy Grade: |
0.5 |
| Package: |
DIN35 Rail Mounted |
| Operating Temperature Range: |
-45~+85 Centigrade |
Product Description

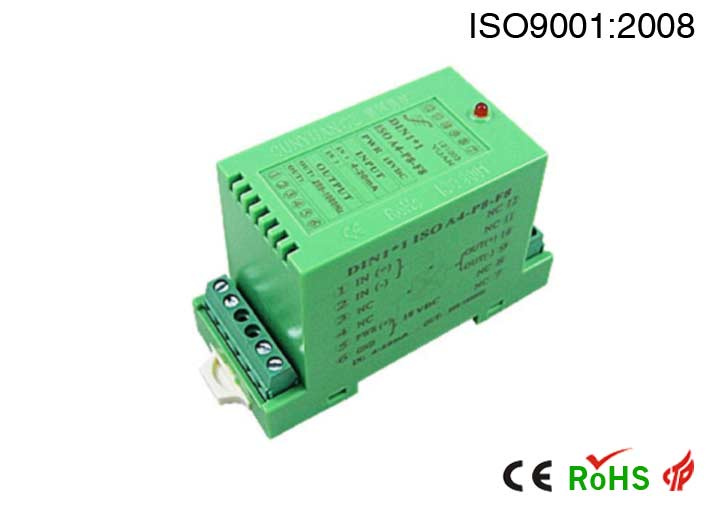

DIN 1X1 Rail-mounted Isolated AC to DC Voltage (Current) Signal Transducer
Features:
Accuracy/linearity error grade: 0.5
Input: 0-1Vrms AC current (50~60Hz)
Power supply: 5V/12V/15V/24VDC
International standard output signal: 0-10mA /4-20mA/0-5V/0-10V
Low cost, small size, SIP12 UL94V-0 package
Temperature Range: - 45 ~ + 85 centigrade
Applications:
AC signal acquisition and transformation
High-precision monitoring used for power transmission and distribution
AC small-signal amplification and conversion
Sensor AC signal converter to standard DC Signal
No distortion in long distance signal transmission
Can be connected to an external transformer to compose single-phase or multiphase transmitter
Specification:
SunYuan ISO series AC-DC signal transmitter IC, is a hybrid integrated circuit that convert the AC
Signal acquisition corresponds to a linear DC signal. This circuit integrates a group of multi-channel
High-isolation DC / DC power supplies and a group of AC / DC signal converter circuit on the same
Chip. Sensors can be collected from the 0-1Vrms (50 ~ 60Hz) AC signal proportional to convert
4-20mA/0-10mA / 0-20mA DC current signal or 0-1V/0-2.5V/0-5V/0- 10V DC voltage signal. An
External transformer can be formed after the single-phase or multiphase transmitter isolation
Between the input and output signal isolation. Remote monitoring and control products in the
Electrical, instrumentation, medical equipment, widely used in the fields of industrial automation.
Product Model Sellection:
DIN1X1 ISO NNAC-P-O
Input Signal:
AC: 0-1Vrms
NNAC: 0-500mA-5AAC
P: Power Supply
P1: 24VDC
P2: 12VDC
P3: 5VDC
P4: 15VDC
P8: User define
Output Signal:
O1: 4-20mA
O2: 0-20mA
O4: 0-5V
O5: 0-10V
O6: 1-5V
O8; User define
Example:
Eg. 1. Input: 0-5AAC, Auxiliary Power Supply: 24VDC, Output: 4-20mA
Model No.: DIN1X1 ISO-5AAC-P1-O1
Eg. 2. Input: 0-10VAC, Auxiliary Power Supply: 24VDC, Outout: 4-20mA
Model No.: DIN1X! ISO-10VAC-P1-O1
