| Prod Model: |
S800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
0.4~2.2kw |
| Control Method: |
V/F Control, Space Vector Control. |
| Rail Drives: |
35mm Rail Mounting |
| Frequency Range: |
0.10~400.00Hz |
| Pid Control: |
Built-in Pid Control |
| Mini Drive: |
Cheapest Frequency Inverter |
| Warranty: |
18 Months |
| MOQ: |
1 PC |
| Feature: |
Easy |
| Size: |
Mini |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
Product Description
News: We will attend the 11th International Automation Exhibition & conference.
Place: Mumbai
Time: 22nd, Aug. to 25th, Aug.
Booth No.: Exhibition Hall B20
Welcome to visit us.
Keywords:
AC frequency inverter, Variable frequency drive, AC drives
Variable Frequency Drive / Variable Speed Drive / frequency converter / AC converter
Frequency Inverter / AC Driver / AC Drives / AC Motor Drives / VFD, VSD / transistorized drives

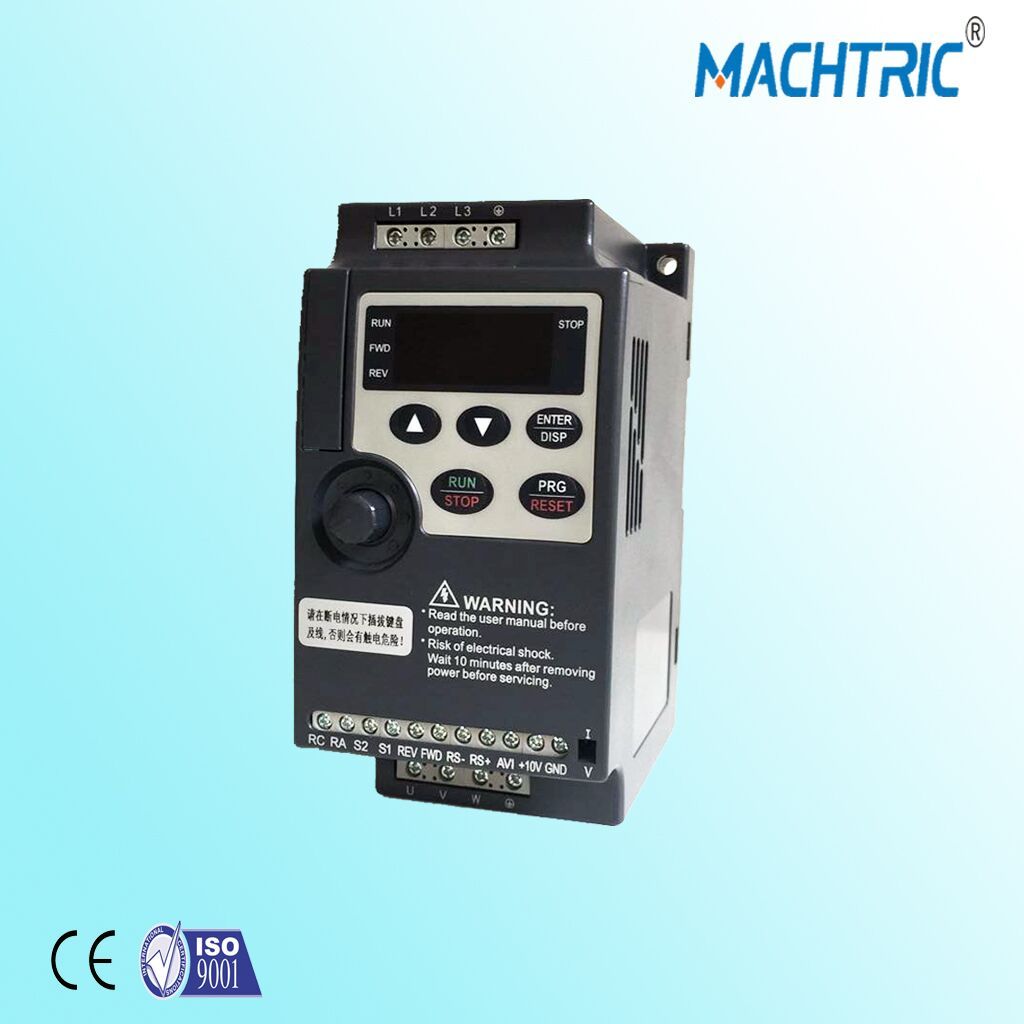

I'd like to share our hot selling inverter for you---S800E.
1. Easy operation and install
2. Cheap
3. DIN installation
4. Soon we will phase in 380V range for this type
About us.
1). More than 20 years-- manufacture of frequency inverter.
2). More than 10 years-- experience in OEM items
3). More than 60 countries-- exported
4). More than 70 R&D team-- OEM, ODM accepted
5). More than 10,000 pcs production capacity per month
6). Certification-- CE, ISO9000, ISO14001, OHSAS18000
7). Service-- Stand on customer's position to solve problem, reply within 24 hours
Specification
Items |
S800E |
Output |
Voltage Range |
220V: 0~220V |
Frequency Range |
0.10~400.00Hz |
Control method |
V/F control, Space vector control. |
Indication |
Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control Specialations |
Output Frequency
Range |
0.10Hz~400.00Hz |
Frequency Setting
Resolution |
Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy |
0.01Hz |
V/F Control |
Setting V/F curve to satisfy various load
Requirements. |
Torque
Control |
Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal |
Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal |
1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
Acceleration/ deceleration Time Setting |
0~999.9s acceleration/deceleration time can be set individually. |
Other functions
|
PID Control |
Built-in PID control |
RS485 |
Standard RS485 communication function(MODBUS) |
Frequency Setting |
Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
Multi-speed |
Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage ID ControlliAlation regulation |
Automatic voltage regulation function can be
Selected |
Counter |
Built-in 2 group of counters |
Protection/Warning
Function |
Overload |
150%, 60 second(Constant torque) |
Over Voltage |
Over voltage protection can be set. |
Under Voltage |
Under voltage protection can be set |
Other Protections |
Overheat,output short circuit,over current, and
Parameter lock and so on. |
Environment |
Ambient Temperature |
-10ºC to 40ºC(non-freezing) |
Ambient Humidity |
Max. 95% (non-condensing) |
Altitude |
Lower than 1000m |
Vibration |
Max.0.5G |
Structure |
Cooling Mode |
Forced air cooling |
Protective
Structure |
IP 20 |
Installation |
Mode |
Wall-mounted or standard 35MM rail mounting |
FAQ
| Questions | Answers |
| What is your payment ? | Our payment is by T/T. Western Union. L/C and Money. |
| Is there a discount on the price of your product? | It depends the quantity of order. |
| Is same quality between the sample and big order? | Our products are always as good as the samples we send, I can promise there will be no debasement of quality. |
| Is the price for FOB? | Yes. |
| How much is your minimum order quantity? | 1 pcs or unit. |
| How do we send goods to customer? | Shipping by Express: DHL, TNT, UPS, Fedex, by Sea and by Air; Or customer forwarder are accepted. |
Our other products:
1. Computerized control system of textile machines:
Seamless Underwear machine, Computerized Flat Knitting Machine, Glove Machine, Circular Knitting machine, Auto-Stripper Knitting Machine, Hosiery Machine, Automatic Winding Machine, Automatic Spooler Machine etc.
2. Inverter series:
Vector series: Z900, S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series, S2100S series
Mini Series:S800E
3. Power controller: SPC3 series
4. Knitting panel: SC-2000E, SC-2200M
