Railway Scale/Truck Scale Load Cell
| Price: |
US $ 88-388/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
4/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
QH-41A load cell |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1klb to 75klb |
| Accuracy: |
0.03%Fs |
| Signal Output: |
3.0mv/V |
| Power Supply: |
10 ~ 15VDC |
| Application: |
Railway Scale,Truck Scale |
| Pattern: |
Double Shear Beam Load Cell |
| Material: |
Alloy Steel |
| IP Rating: |
IP66 |
Product Description

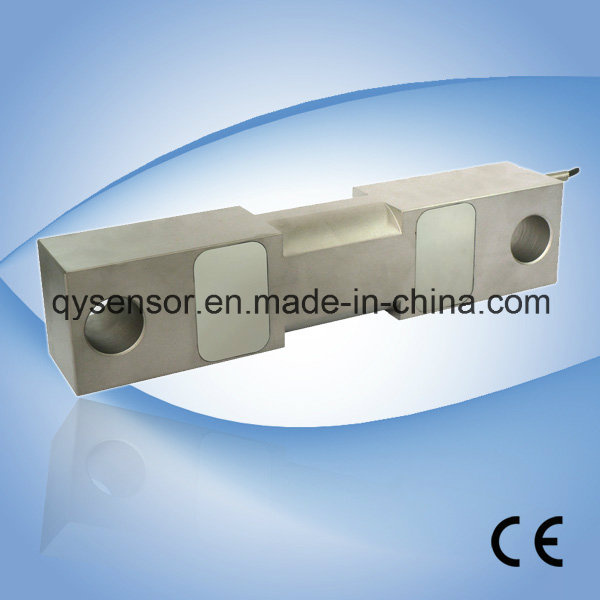

Product Introduction:
QH-41A load cells are available in the capacities from 1klb to 75klb,
Alloy steel construction with double shear beam type,
Silicon adhesive sealed inside, waterproof and anti-corrosion,suitable for multiform environments
Integral structure and easy installation.
Suitable for electronic truck scales, railway scales and other electronic weighing devices.
Features:
Capacity: 1klb to 75klb
Defend grade:IP66
High accuracy.
Alloy steel construction.
Integral structure, reliable performance, and easy installation.

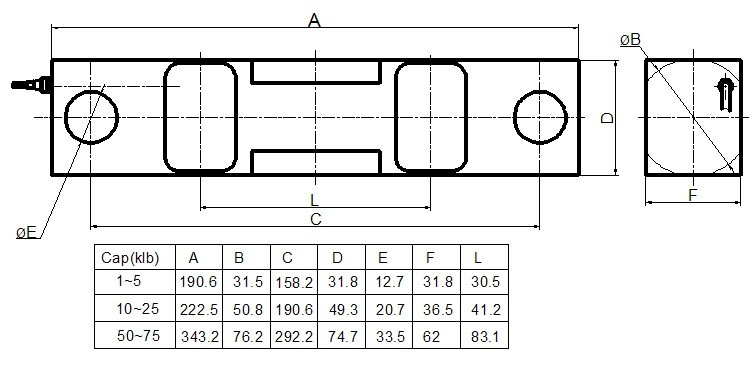

Electrical connection and Dimensions: (dimension unit: mm)
Technical Specifications: | Specifications: |
| capacity | klb | 1,5,10,25,50,75 |
| safe overload | %FS | 150 |
| ultimate overload | %FS | 200 |
| rated output | mV/V | 3.0± 0.006 |
| excitation voltage | Vdc | 10 ~ 15 |
| combined error | %FS | ± 0.03 |
| zero unbalance | %FS | ± 1 |
| non-linearity | %FS | ± 0.03 |
| hysteresis | %FS | ± 0.02 |
| repeatability | %FS | ± 0.02 |
| creep | %FS/30min | ± 0.02 |
| input resistance | Ω | 700 ± 10 |
| output resistance | Ω | 700 ± 5 |
| insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
| operating temperature range | ºC | -20 ~ +55 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.02 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.03 |
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:10 m
Cable diameter :¢5mm
The cable length could be chose by customer's application.
Packaging & Shipping:
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
Our Services:
1. OEM/ODM Services:
Our company provides OEM/ODM service and Customized products service.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.
FAQ:
Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
