Rain Proof Circular Crimp Connector

Name: Rain Proof Circular Crimp Connector
Brand: all-electronics-online.com
SKU: 648920725
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	US $ 38/Set
Trade Terms:	3 weeks
Min Order:	5/Set
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TY48 Series
Size:	Ty48k26ty+Ty48j26zy
Size1:	Ty48j26ty+Ty48k26zy
Contacts Size:	1.5 Diameter

Product Description

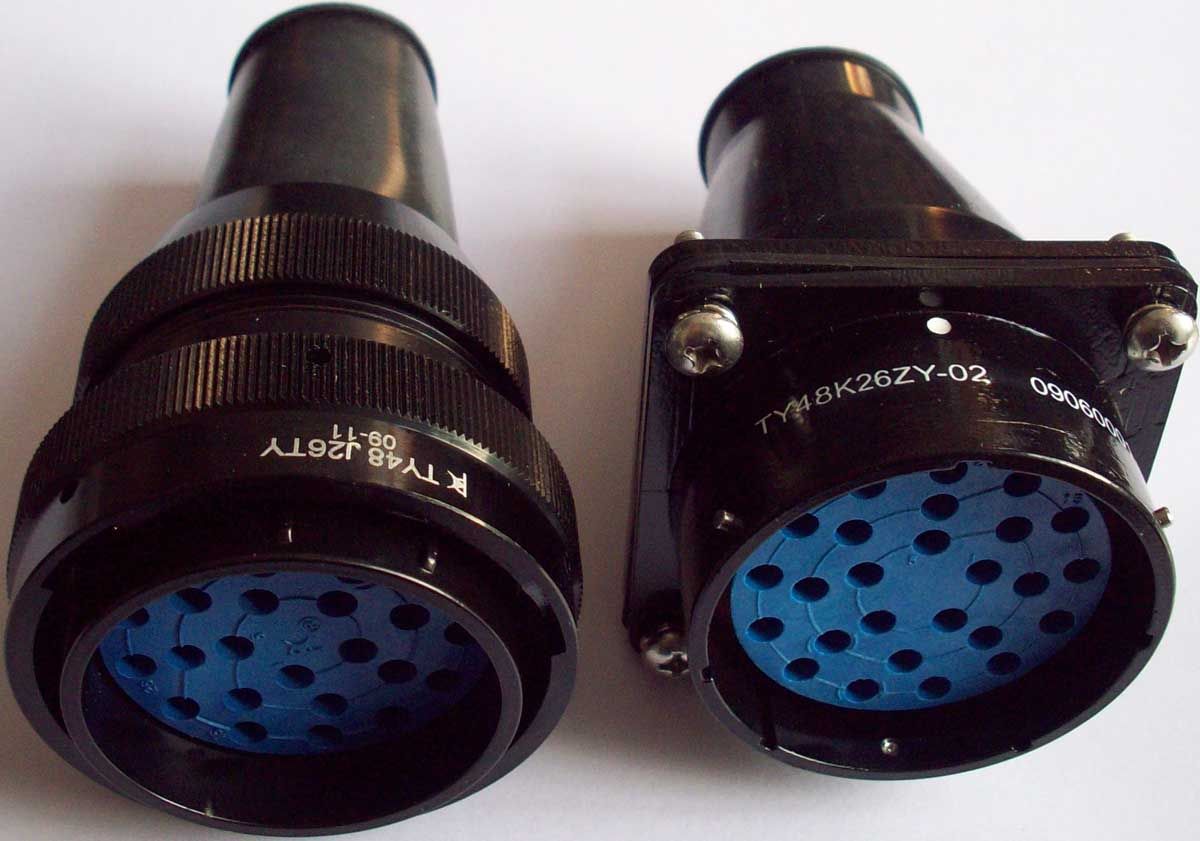

TY48 series circular connectors use the high reliable hyperboloid socket as the contacts. This connector has the features of low contact resistance, soft force of mating and unmating, anti-vibration, shock-proof, high reliability, etc. The main technical characteristics is in accordance with Ministry of Railway standard TB/T2761. The type of connection between socket and plug is bayonet coupling. This product is widely used for the connection between electrical and electronic equipments for the railway, electricity, etc. Both plug and receptacle may be mounted with pins or sockets.

Product Ordering
TY48 J 26 Z Y
1 2 3 4 5
1. Name of series: TY48
2. J_Pin, K_Socket
3. Number of contacts: 4, 20, 26, 31, 37
4. T_Plug, Z_Receptacle
5. Y_Crimp

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
