Rainproof 12V 500W 180-250vinput LED Driver with CCC

Name: Rainproof 12V 500W 180-250vinput LED Driver with CCC
Brand: all-electronics-online.com
SKU: 780244135
Availability: InStock
Rating: 4.4 (118 reviews)

Price:	US $ 20.5-21.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RLDV-12E500C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	500W Constant Voltage Switching Power Supply
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	41.67A Max
Output Voltage:	12VDC
IP Rating:	IP23
Installation:	Outdoor Rainproof
Weight(Kg):	1.05 Kg
Packing Information:	20 PCS/ Carton, G.W 23 Kg
Cooling:	Built-in Electric Fan
Dimensions(LWH):	19714066 mm
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

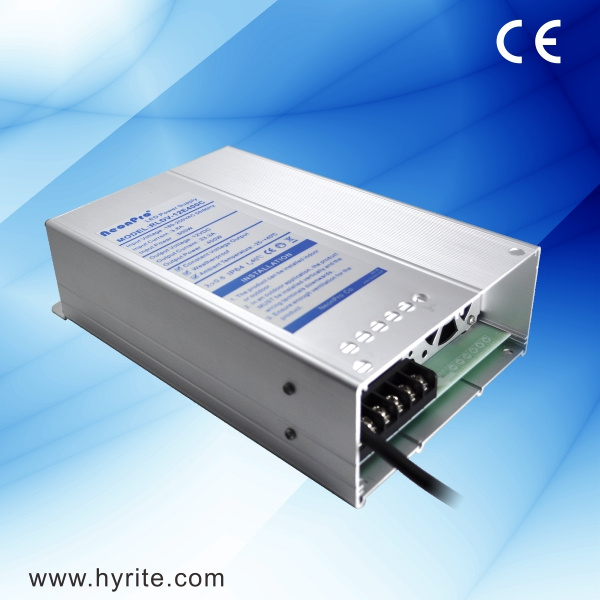

500W 12V AC/DC Constant Voltage LED Power Supply with CCC

Features
*Rainproof
*Constant voltage output
*Short circuit and overload protection
*Special heat dissipation design with aluminium housing and hot start ventilating fan
*Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock
*100% burn-in test
*2 years warrenty

Applications
*LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc...

Specification

Model no.	RLDV-12E500C
Input voltage	180-250 VAC 50/60Hz
Max. power	500W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	>85%
Output voltage	12VDC ± 5%
Output current	41.6A
Operating temperature	-25ºC~+40ºC
Installation	Outdoor rainproof
IP rating	IP 23
Cooling	Built-in electric fan

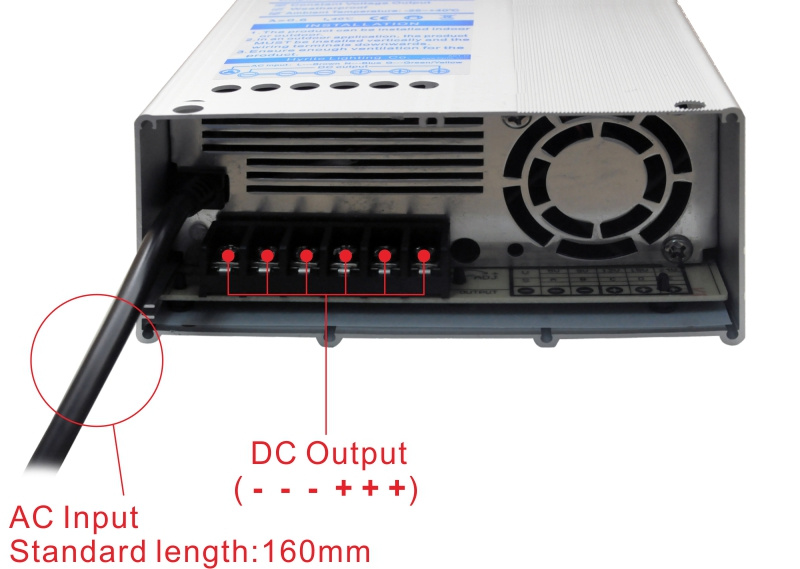

Connection input/output	Input:18AWG*3(30cm) Output: terminal(six)

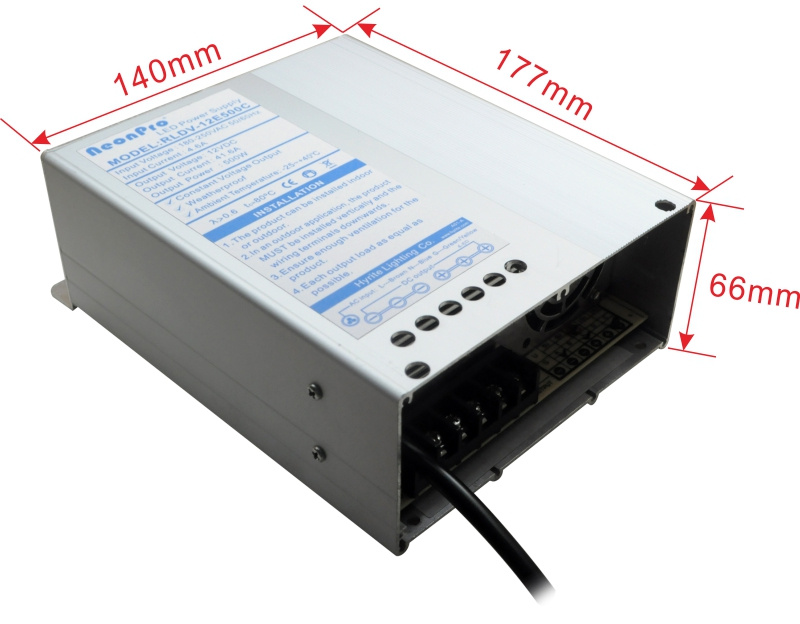

*Dimensions(LWH)*	19714066 mm

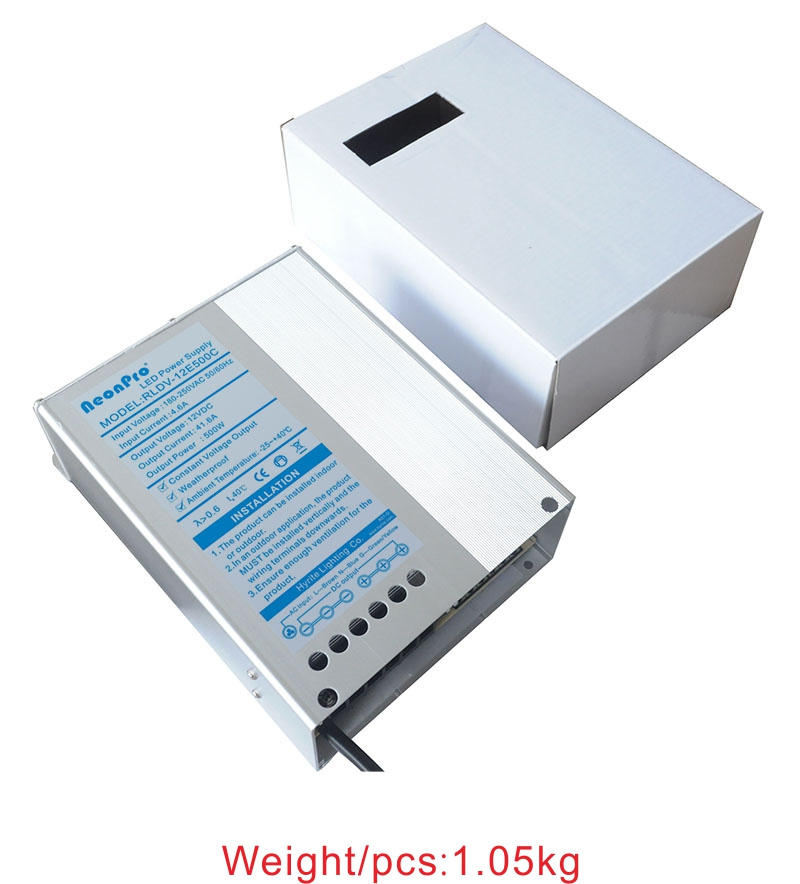

Weight(kg)	1.05 KG
Packing information	20 PCS/Carton, G.W 23 KG
*Packing Dimensions(LWH)*	430x380x320 mm

Our Strengths
*More than 20 years' experience in indoor & outdoor Lighting application
*Professional sales team and strong R&D forces
*Good quality with strict production control
*Customization and OEM service available

Successful Applications & Workshops & Exhibitions

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
