Rainproof 12V Power Supply for CCTV Security System

Name: Rainproof 12V Power Supply for CCTV Security System
Brand: all-electronics-online.com
SKU: 825119055
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 4-5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AD-S1230FSE
Input Frequency Range:	50/60Hz
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC Ce
Brand:	Sanyi Power

Product Description

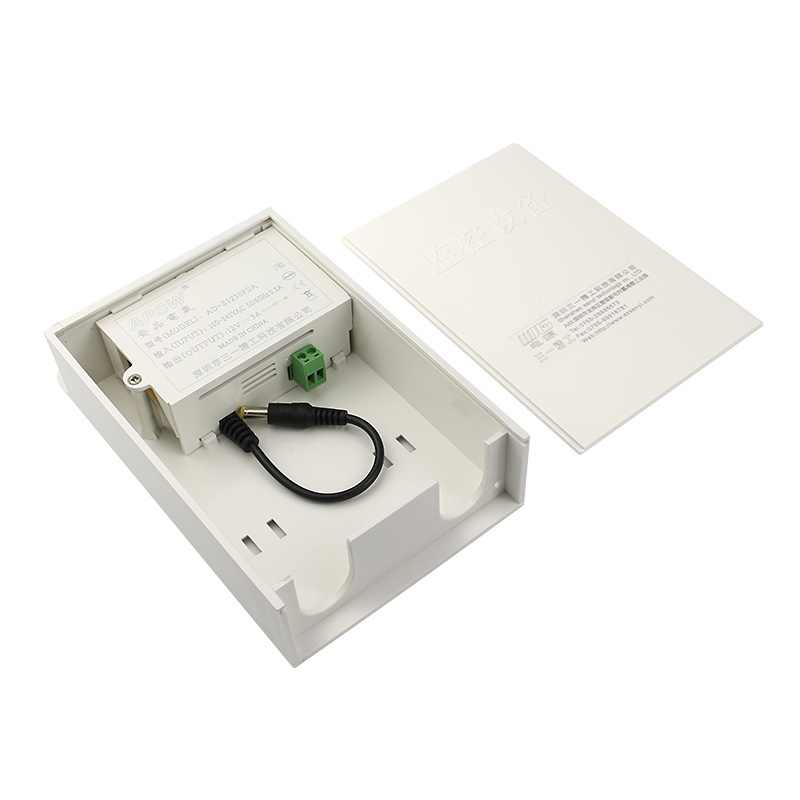

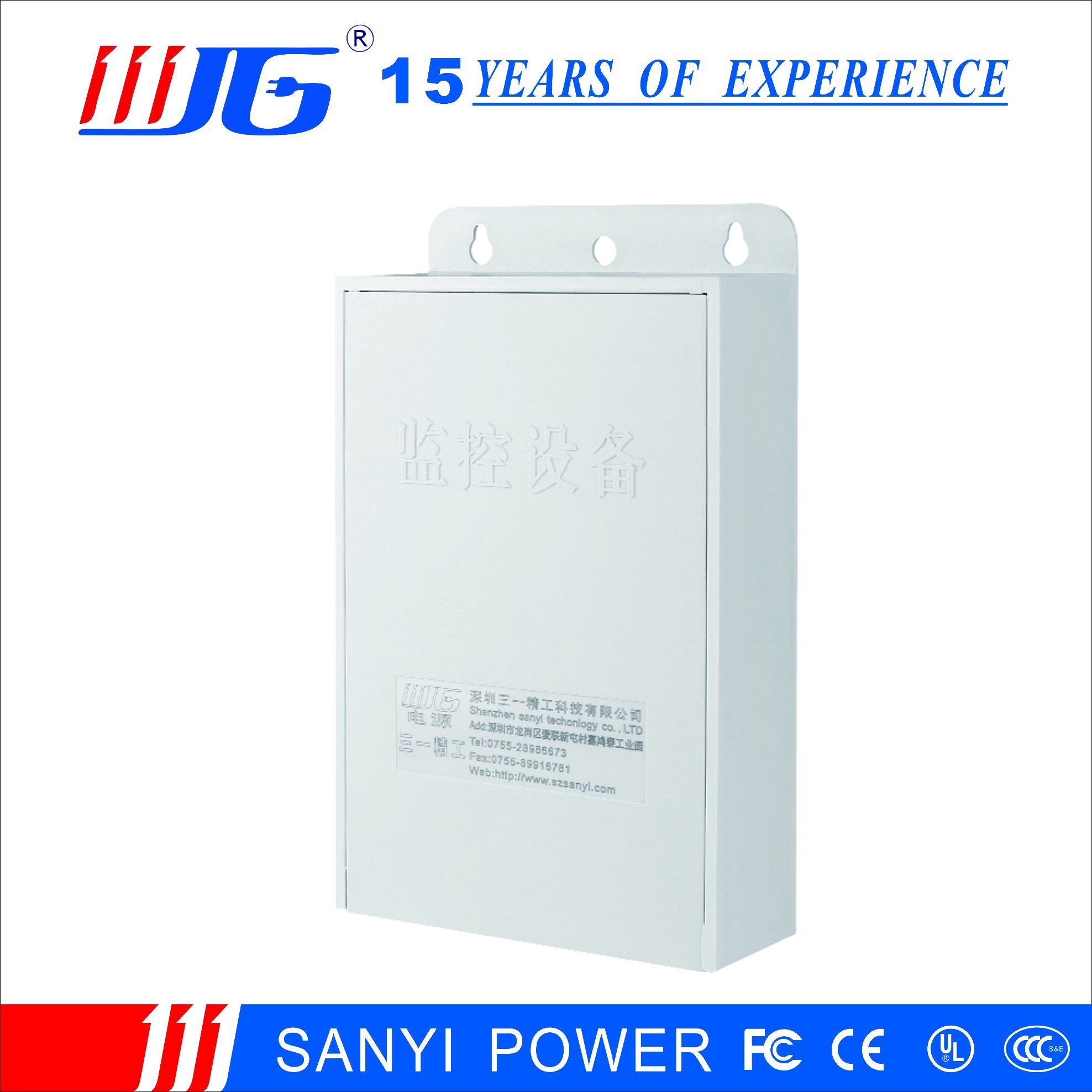

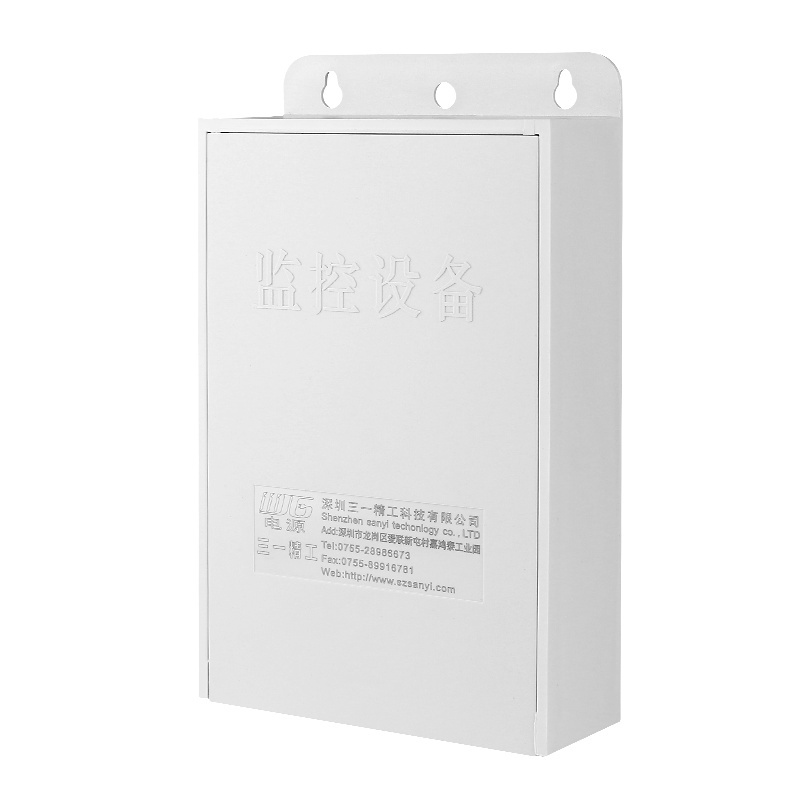

CCTV Rainproof Power supply Box 12V1A/2A/3A AC-DC
1.Main Features
_{>Universal AC input /Full range
>Built-in EMI fliter
>100% full load burin-in test}
_{>Waterproof,High efficiency,Long life and high reliability
>Protections:Short circuit/Over load /Over Voltage/Over temperature
>Can be customized according to user selection ( Current and Voltage can be adjusted)
>Certificated by
UL,TUV,CCC,CE,UL,CB,FCC,and RoHs
>}_{Three Years Warranty}
2.Model No.

AD-S1210FSE	12V/1A
AD-S1220FSE	12V/2A
AD-S1230FSE	12V/3A
AC Input Voltage/Frequency	110V-240V 50/60Hz
Inrush Current(Typ.)	Cold Start,50A at 220Vac
Leakage Current	3Ma
Over Load Protection	105%-150% hiccup mode,auto-recovery
Over Voltage Protection	115%-150% Shut down o/p voltage
Working temperature	-10ºC~60ºC
Safety Standards	GB4943,EN60950
Withstand Voltage	I/P-O/P:3KAC I/P-FG:1.5KVAC,O/P-FG:1.5KVAC

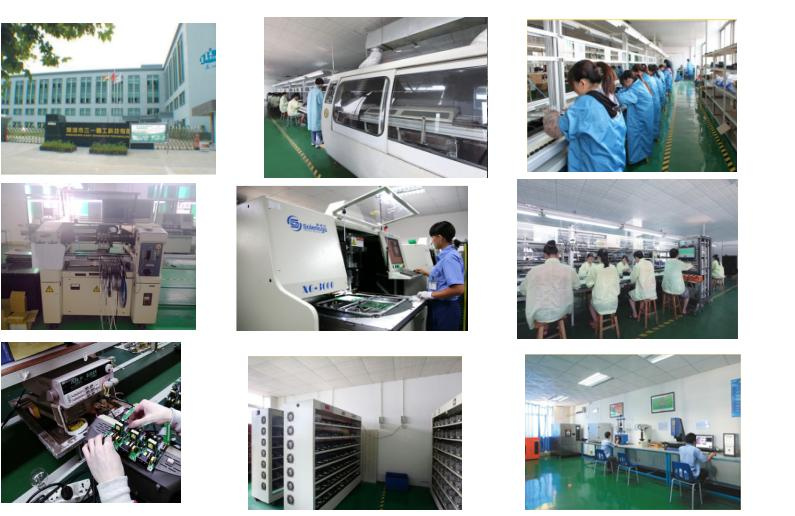

3.Factory Profiles
Hot Sale 12V1a 12V2a 12V3a AC-DC Monitor Rainproof Power Supply

4.Certificate

5.Contact

SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.

We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.

We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
