Rainproof Lamp Holder Photocontrol Outdoor Light Sensor Switch

Name: Rainproof Lamp Holder Photocontrol Outdoor Light Sensor Switch
Brand: all-electronics-online.com
SKU: 816109975
Availability: InStock
Rating: 4.9 (21 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	301
Type:	Automatic Sensor Switch

Product Description

Basic Specification:

Rated Voltage	120VAC 50/60Hz
Rated Loading	150W Tungsten
On/Off Levels	15Lx(identical degree of illumination)
Ambient Temperature	-40ºC ~ +70ºC
Communication Mode	Full-Duplex
Type	Time Switches
Application	Household
Function	Coupled Switch
Voltage	110-220V
Frequency	50HZ-60HZ

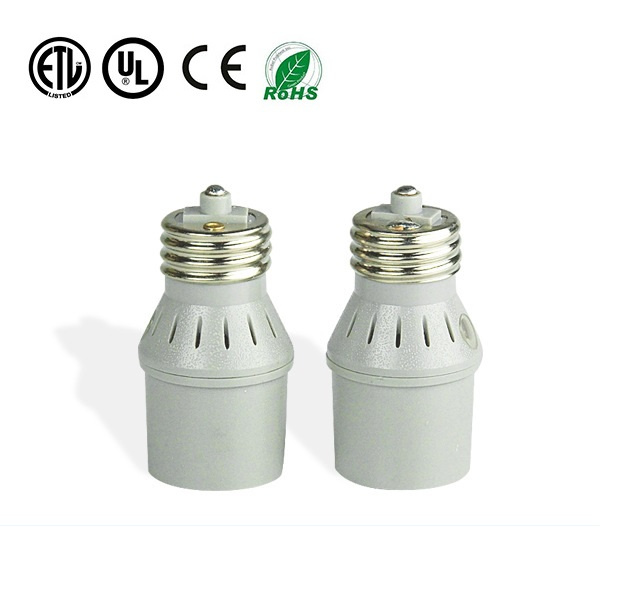

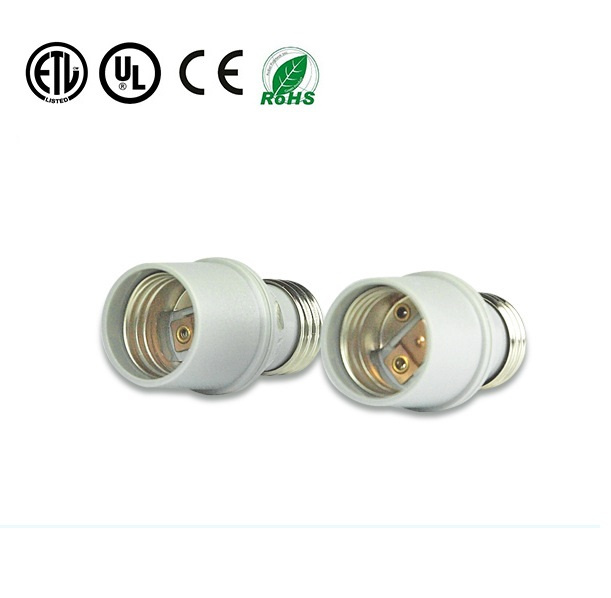

Product Pictures:

The photoelectric switch JL-301 is applicable to control the street lighting,
passage lighting and doorway lighting automatically in accordance with the ambient
lighting level.

Model	JL-301A
Rated Voltage	120VAC, 50/60Hz
Rated Loading	150W Tungsten
Power Consumption	Max 1.5W
On/Off Levels	15Lx (identical degree of illumination)
Ambient Temperature	-40ºC ~ +70ºC
Related Humidity	99%
Body Meas.	69×Φ37mm
Lamp cap & holder	E26/E27
Approx. Weight	32.5g

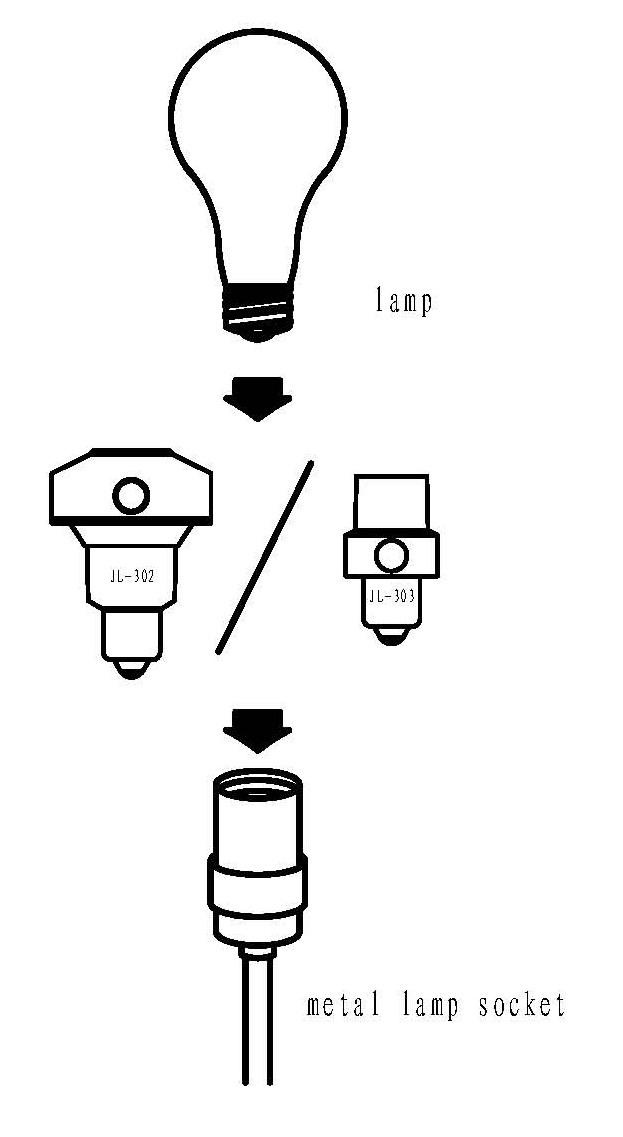

Installation:

★ Disconnect power;
★ Screw bulb off;
★ Screw the unit into bulb holder completely.
★ Screw bulb into the bulb holder of the unit.
★ Connect power. Turn lamp switch ON.

Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.

Avoid to use the unit in a opaque or reflective glass lantern, as well as use in a wet place.
