Rainproof LED Switching Power Supply with Ce

Name: Rainproof LED Switching Power Supply with Ce
Brand: all-electronics-online.com
SKU: 725372202
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 13-14/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-24E250
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	10.4A
Output Voltage:	24V
Output Power:	250W
IP Rating:	IP23
Cooling:	Built-in Electric Fan
Use:	for Wall Washer,LED Modules,Light Box Ect.
Installation:	Vertically Installed
Dimensions(LWH):	168.5116.556.5 mm
Acking Information:	20 PCS/ Carton, G.W 24 Kg
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Certification:	Bis
In-Out:	AC to DC
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

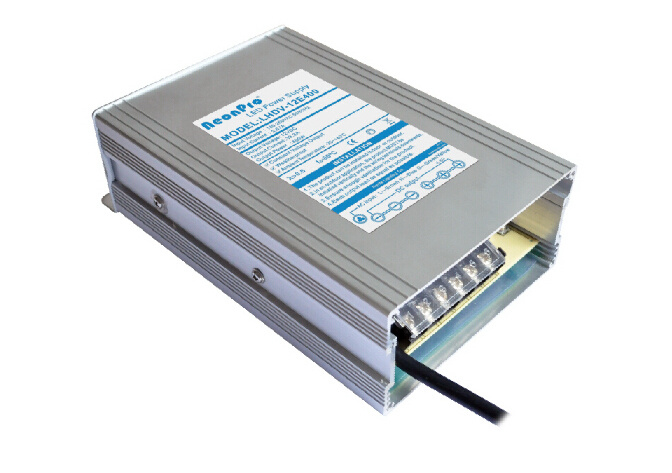

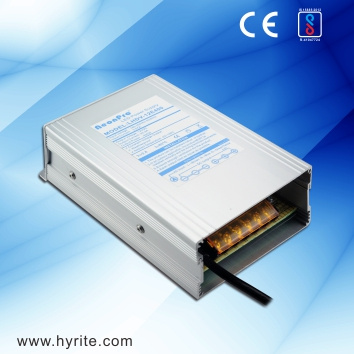

400W 24V Rainproof Economic Type Power Supply CE

Brief Introduction:
- Constant voltage output.
- Rainproof.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Safety design with separated line input power cord and low voltage output terminals, preventing
Electrical shock.
- Output voltage adjustable.

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 2-3 days for sample order
10-15 days for normal order confirmed
Payment terms: L/C, T/T, Western Union
MOQ>1 pc

Shipping Method:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification:

Model no.	LHDV-24E250
Input voltage	180-250 VAC 50/60Hz
Max. power	250W
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	0.65
Efficiency	>83%
Output voltage	24VDC ± 5%
Output current	10.4A
Operating temperature	-25~40
Installation	Outdoor rainproof
IP rating	IP 23
Cooling	Built-in electric fan
Connection input/output	Input:18AWG*3(30cm) Output: terminal(six)
Dimensions(LWH)	185.5112.556.5 mm
Weight(kg)	0.75
Packing information	20 Pcs/ Carton, G.W 24 KG

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.
