Rainproof Power Adapter, DC12V, 2000mA for CCTV Camera

Name: Rainproof Power Adapter, DC12V, 2000mA for CCTV Camera
Brand: all-electronics-online.com
SKU: 681108232
Availability: InStock
Rating: 4.4 (93 reviews)

Price:	US $ 2.25-2.4/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PSR24-12B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	DC
Connection:	Plug In
Usage:	CCTV Camera

Product Description

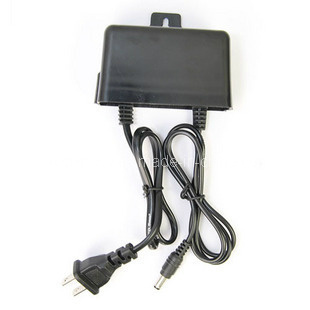

Rain-proof switching power adapter, DC12V, 2.0A and 24W (PSR24-12B). American Plug, Euro Plug and Uk Plug for your optional.

Features:

1) High efficiency, low operation temperature
2) Built-in EMI filter
3) 100% full load burn-in test
4) Protection: Overload, short circuit
5) Competitive price, high reliability
6) Output: D120U1, D120U2, D120U4
7) Input: 110/220VAC/Full range
8) Storage temperature / humidity: 0 - 50° C / 100%, -10° C / 80%, 60° C / 60%, 20% - 90% RH

MODEL No.		PSR24-12B
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	2.0A
	CURRENT RANGE	0 ~ 2.0A
	RATED POWER	24W
	RIPPLE & NOISE (max. ) Note. 2	50mVp-p
	VOLTAGE ADJ. RANGE	10.8 ~ 13.2V
	VOLTAGE TOLERANCE Note. 3	± 1.0%
	LINE REGULATION	± 0.5%
	LOAD REGULATION	± 0.5%
	SETUP, RISE, HOLD TIME	200ms, 100ms, 30ms at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ. )	68%
	AC CURRENT	0.5A/115VAC 0.25A/230VAC
	INRUSH CURRENT (max. )	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	< 0.5mA/240VAC
PROTECTION	OVERLOAD	105 ~ 135% rated output power
PROTECTION	OVERLOAD	Protection type: Constant current limiting, recovers automatically after fault condition is reoved
ENVIRONMENT	WORKING TEMP.	-10 ~ +60º C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20 ~ +85º C, 10 ~ 95% RH
	TEMP. COEFFICIENT	± 0.02%/º C (0 ~ 50º C)
	VIBRATION	10 ~ 500Hz, 2.10min. /1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	Design refer to UL1012
	WITHSTAND VOLTAGE	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
	EMI CONDUCTION & RADIATION	Design refer to FCC Part15 J Conduction Class B
