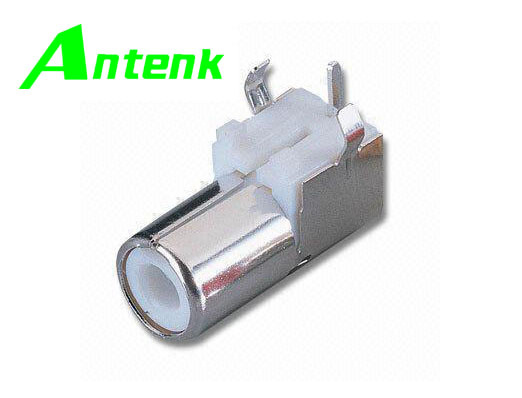

RCA Jack Connector

Name: RCA Jack Connector
Brand: all-electronics-online.com
SKU: 609256874
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RCA JACK Series 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Application:	PCB
Type:	SIM+TF Jack
Installation Mode:	Rotary Jack

Product Description

RCA Jack Connector with 500V DC Insulation Resistance

Extraction force:
Value of specifications:
0.5 to 3.0kg (initial condition)
0.4 to 3.0kg (after life test, after humidity test, after heat test, after cold test, after resistance to soldering heat test)
Contact resistance:
Contact resistance of jack shall not exceed the value defined in the table listed at a current less than 100mA with frequency of 1kHz four terminals method
Withstanding voltage:500V AC for one minute
Insulation resistance:500V DC
Value of specifications:
Plug to bushing:
30m ohms maximum (initial condition, after humidity test, after heat test, after cold test, after resistance to soldering heat test)
60m ohm maximum (after durability test)
Plug to contacts:
50m ohms maximum (initial condition, after humidity test, after heat test, after cold test, after resistance to soldering heat test)
100m ohms maximum (after durability test)

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
