| Prod Model: |
CT5082/RG59 |
| Connector Type: |
RCA |
| Body: |
Zinc Alloy, Nickel Plated |
| Center Pin: |
Zinc Alloy, Nickel Plated |
| Net Weight: |
17g/Piece |
| Applications: |
CCTV Surveillance System |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Application: |
Connectors |
| Interface Type: |
RCA |
| Brand: |
Chinasky |
Product Description

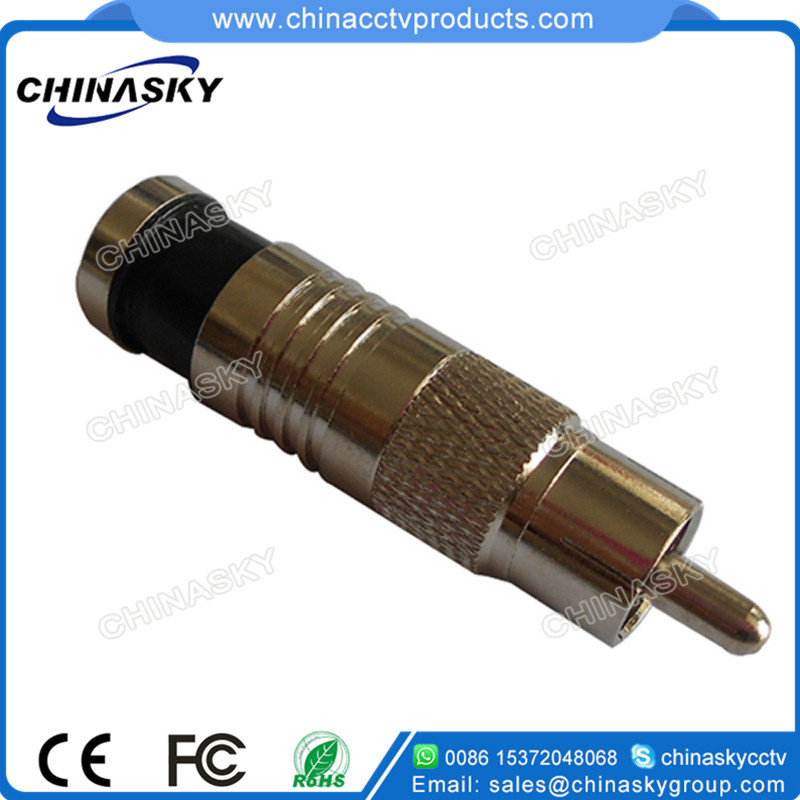

RCA Male Compression CCTV Connector for RG59 Cable (CT5082/RG59)
Description:
RCA Male Compression Connector for RG59 Cable
The RCA RG59 Compression Connector for Coax features 360-degree true radial compression.
Material:
Body:zinc alloy, nickel plated
center pin:zinc alloy, nickel plated
Net Weight: 17g/piece
Application:
An RCA connector is a plug and a jack designed for use with coaxial cable for frequencies ranging from the very lowest up to several megahertz. An RCA connector is sometimes known as a phono plug and jack.
The plug shell is slotted rather than threaded, to facilitate quick insertion to, and removal from, the female jack or receptacle. Contact is maintained by physical pressure between the slotted shell of the plug and the smooth cylindrical barrel of the jack. The plug shell is connected to the outer conductor, or shield, of the coaxial cable, normally at electrical ground. The center pin of the plug is connected to the cable center conductor, which carries the signal. In the jack, the barrel is grounded and the center hole is plated inside to conduct the signal.
RCA connectors are suitable for audio-frequency (AF) applications. They are also used in radio-frequency (RF) systems at low and medium frequencies, and at power levels up to approximately 100 watts. At higher frequencies or higher power levels, larger connectors are necessary. RCA connectors are designed for cables with small outside diameters (less than 6 or 7 mm) and are intended for indoor use only.
| Place of Origin: | China |
| Brand Name: | Chinasky |
| Model Number: | CT5082/RG59 |
| Minimum Order Quantity: | Negotiable |
| Packaging Details: | 100pcs/PP bag |
| Delivery Time: | 5-12 working days |
| Payment Terms: | T/T, Western Union |
| Nearest Port: | Ningbo or Shanghai |
