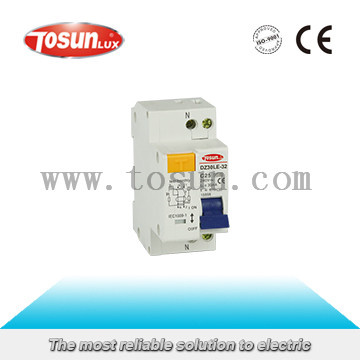

| Prod Model: |
DZ30LE-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage (V): |
230 |
| Rated Frequency: |
50/60Hz |
| Rated Current (a): |
40, 50, 63 |
| Rated Operating Current(IΔn): |
30mA |
| Rated Non Operating (IΔn): |
15mA |
| Residual Current Off-Time: |
≤0.1s |
| Short Circuit Capacity (ICU): |
4500A |
| Dimension: |
77*67*36mm |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
1 |
| Certification: |
CCC |
| Operation: |
Manual Type |
| Installation: |
Insert |
| Arc-extinguishing Medium: |
Air |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
RCBO |
Product Description
Specification
| Model | DZ30LE-32 | DZ30LE-63 |
| Number of Poles | 1P+N |
| Rated Current(A) | 6, 10, 16, 20, 25, 32 | 40, 50, 63 |
| Rated Residual Operating Current (lΔn)(mA) | 30 |
| Rated Residual Non-operating Current(lΔno)(mA) | 15 |
| Rated Voltage (V) | 230 |
| Residual Current Off-time | <=0.1S |
| Short Circuit Capacity (lcu) | 4500A |
