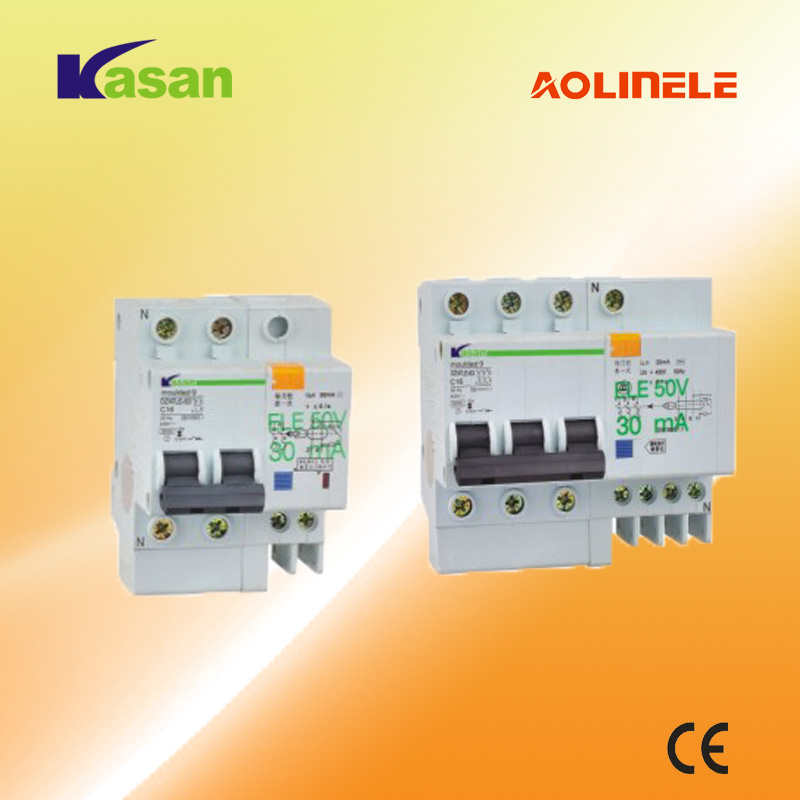

RCCB (Dz47LE-63) Earth Leakage Circuit Breaker

Name: RCCB (Dz47LE-63) Earth Leakage Circuit Breaker
Brand: all-electronics-online.com
SKU: 690105002
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole.:	1.2p
Type.:	MCB+ELCB
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	ELCB
Poles Number:	3
Certification:	CE

Product Description

mcb Application:
The product is mainly used in AC50/60HZ single-pole230V or two, three, four-poles 400Vcircuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under normal condition. It can be used in lighting and electric motor distribution system. It is characterized with novel structure ,light weight, reliable and excellent performance, high breaking capacity.
It is conformity with GB10963,IEC 60898 standards.

Type	MCB
Number of poles	1P,2P,3P,4P
Rated Current(In)	1,2,3,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un)	AC230(240)/400(415)V
Rated Frequency	50(60)HZ
Curve	B,C,D
Short-circuit breaker capacity(Cn)	6000A
Magnetic releases	B curve: between 3and 5 In C curve: between 5and 10In D curve: between 10 and 14In
Endurance	>4000
Terminal protection	IP20

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
