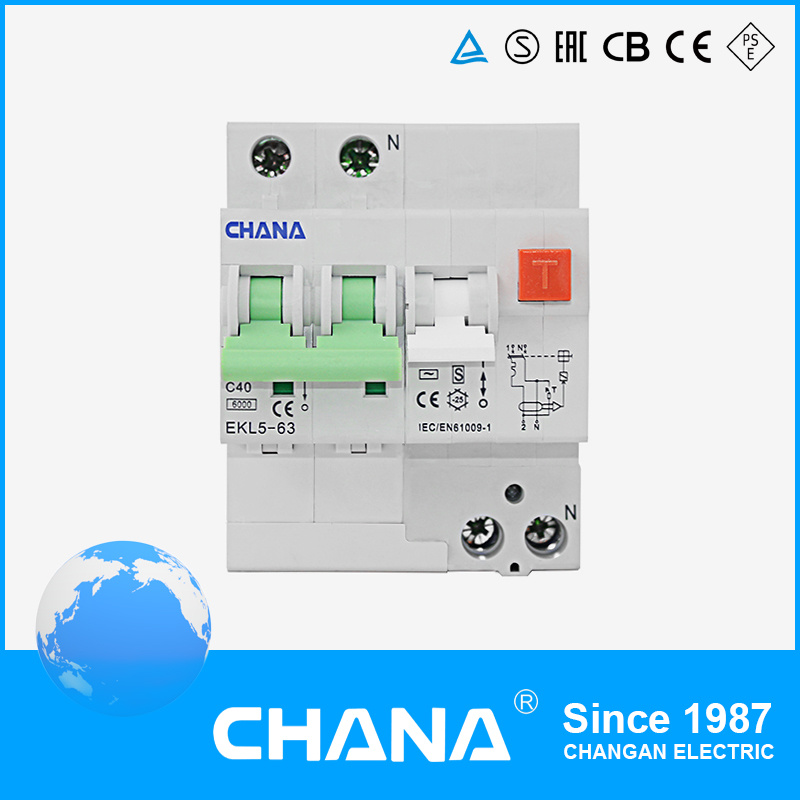

RCCB with Overcurrent Protection 4p 3p + N 63A RCBO Circuit Breaker

Prod Model:	EKL5-63
Protection Degree:	IP20
Export Market:	Global
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	SGS TUV RoHS
Poles Number:	4p(3p+N)

Product Description

RCCB with Overcurrent Protection 4P(3P+N) 63A RCBO circuit breaker
Product Description
Product Description OF RCBO
Electrical Features OF RCBO
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated current In MCB+add-on RCD block: 6, 10, 16, 20, 25, 32, 40, 50, 63A
RCBO Poles: 2P(1P+N), 4P (3P+N)
Rated voltage Ue: 240/415V
Rated sensitivity In MCB+add-on RCD block: 0.03, 0.1, 0.3A
RCBO Rated residual making and breaking capacity Im: 500A(In≤ 40A) 630(In>40A)
Rated short-circuit capacity lcn: 4, 500/6, 000A
Break time under In: ≤ 0.1s
Rated frequency: 50/60Hz
RCBO Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2
Mechanical Features OF RCBO
Contact position indicator: Yes
RCBO Protection degree: IP20
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation OF RCBO
Terminal connection type: Cable/U-type busbar/Pin-type busbar
RCBO Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2 N*m 18In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom (for combined type)
From top (MCB+add-on RCD block)
About US:
Changan Group Co., Ltd specializing in the R&D, manufacture and sale of low voltage electric applicants, such as MCB, MCCB, RCCB, Indicators, AC contactors and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS.
2. We have 27 years of manufacture and 17 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Bengal, Thailand, south American, Mid-east market and so on....


Items	Protection degree	Rated Current	Electrical Life	Mechanical Life
EKL5-63	IP20	6/10/20/32/40A	2000	2000
EKL5-63	IP20	6/10/20/32/40A	2000	2000
EKL5-63	IP20	6/10/20/32/40A	2000	2000
EKL5-63	IP20	6/10/20/32/40A	2000	2000

Dimensions (mm)



Installation instructions (mm)
