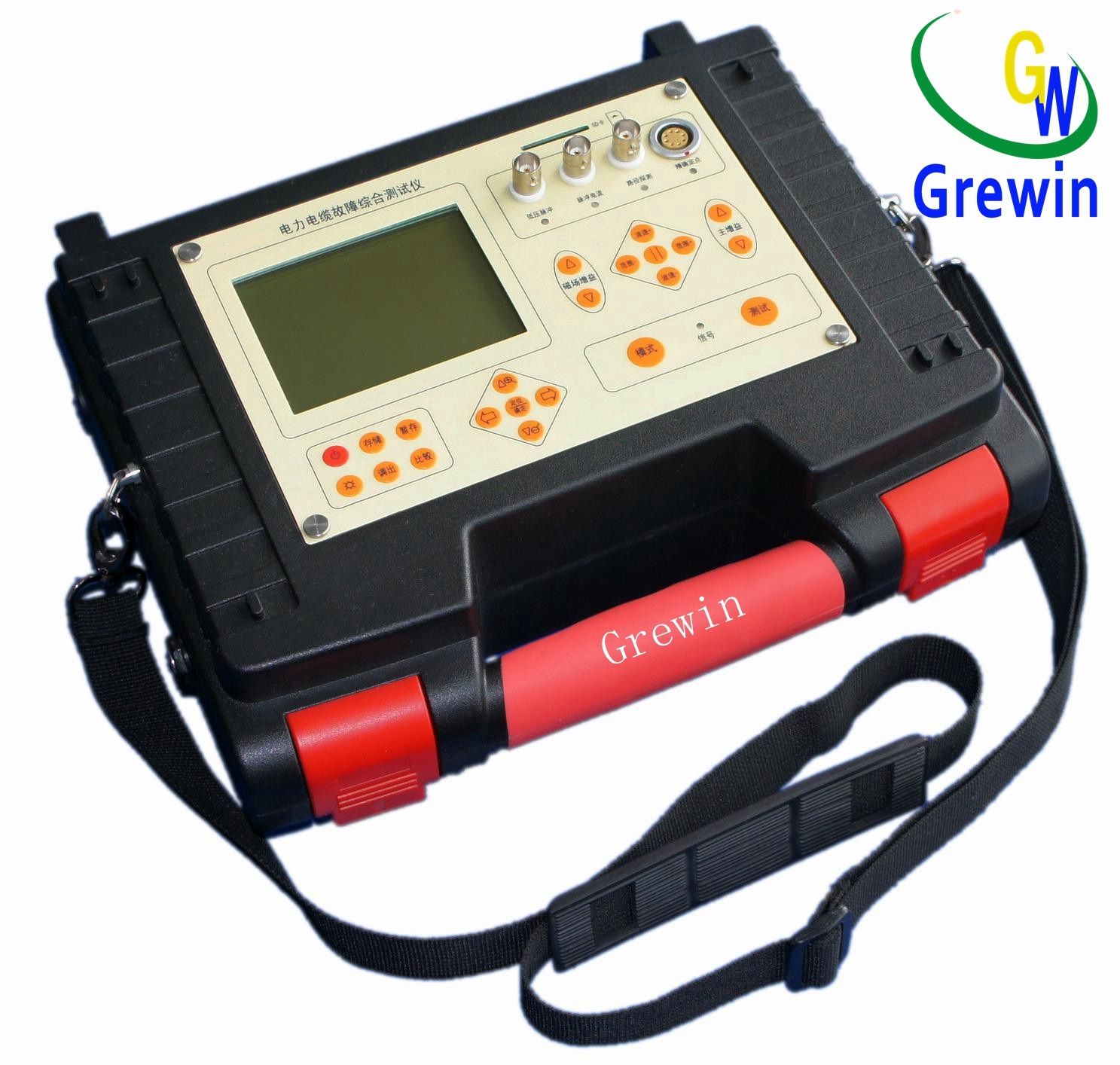

Rci 1200 Integrated Cable Fault Tester

Product Description

1. Fault locating
2. Pin-pointing
3. Basic route tracing

1. RCI-1200 M Integrated Power Cable Fault Tester

• Low voltage impulse fault distance testing
• Impulse current fault distance testing
• Audio magnetic synchronous pin-pointing
• Route tracing

1. RCI-1200T Route Tracing Signal Generator

• Transmit signal for route tracing

1. Full-featured:

1. Low voltage impulse fault distance testing
2. Impulse current fault distance testing
3. Audio magnetic synchronous pin-pointing
4. Route tracing

1. Fault distance locating:

1. Low voltage impulse method: apply to the distance measurement of low resistance fault, short circuit and open circuit fault
2. Impulse current method: apply to the distance measurement of high resistance fault, breakdown fault with current coupler for signal sampling.

1. Pin-pointing:

1. Audio and magnetic synchronously receiving with high anti-interference capability
2. Audio and magnetic signal waveform displaying to distinguish the signal and noise easily
3. Cursor test audio magnetic delay to display accurate fault point
4. Route tracing while pinpointing according the initial polarity of magnetic waveform

1. Route tracing:

1. Signal generator:

• High capacity lithium-ion battery
• Full-automatic power matching and protection
• High-power output

1. Peak and null method for route tracing
2. Signal amplitude display
3. 80% method and 45% method for depth detecting

1. Big LCD screen,4.3",320*240
2. SD card storage, easy to import to the computer
3. High capacity lithium-ion battery matched with quick charger
4. Power supply management to reduce the consumption. Auto power off in 15 min. without operation.
5. Auto power off when low battery lever to protect the battery.
6. Integrated design and small size, easy to carry.

RCI 1200 Integrated Cable Fault Tester Tech.

1. Basic steps:

1. Fault judgment
2. Fault distance testing
3. Route tracing
4. Pin-pointing

1. Fault judgment and test method chosen

1. When cable fault appeared, first determine the fault character as below:

• Test the phase to phase and phase-earth insulation resistance of one end of the cable by megger. If the result is zero, please use the multimeter to test the resistance.
• If the insulation resistance is very high but insulation is normal, please check whether open circuit fault exist. Here user can make three phases short circuit to the earth and test on the other end to distinguish.
• Fault character distinguish and test method form

1. The gray part in the form means that, for these functions, extra matched high voltage generator is needed.
2. Audio-frequency method to pinpoint the low resistance is optional. This need the matched CD-1200T route tracing signal generator.

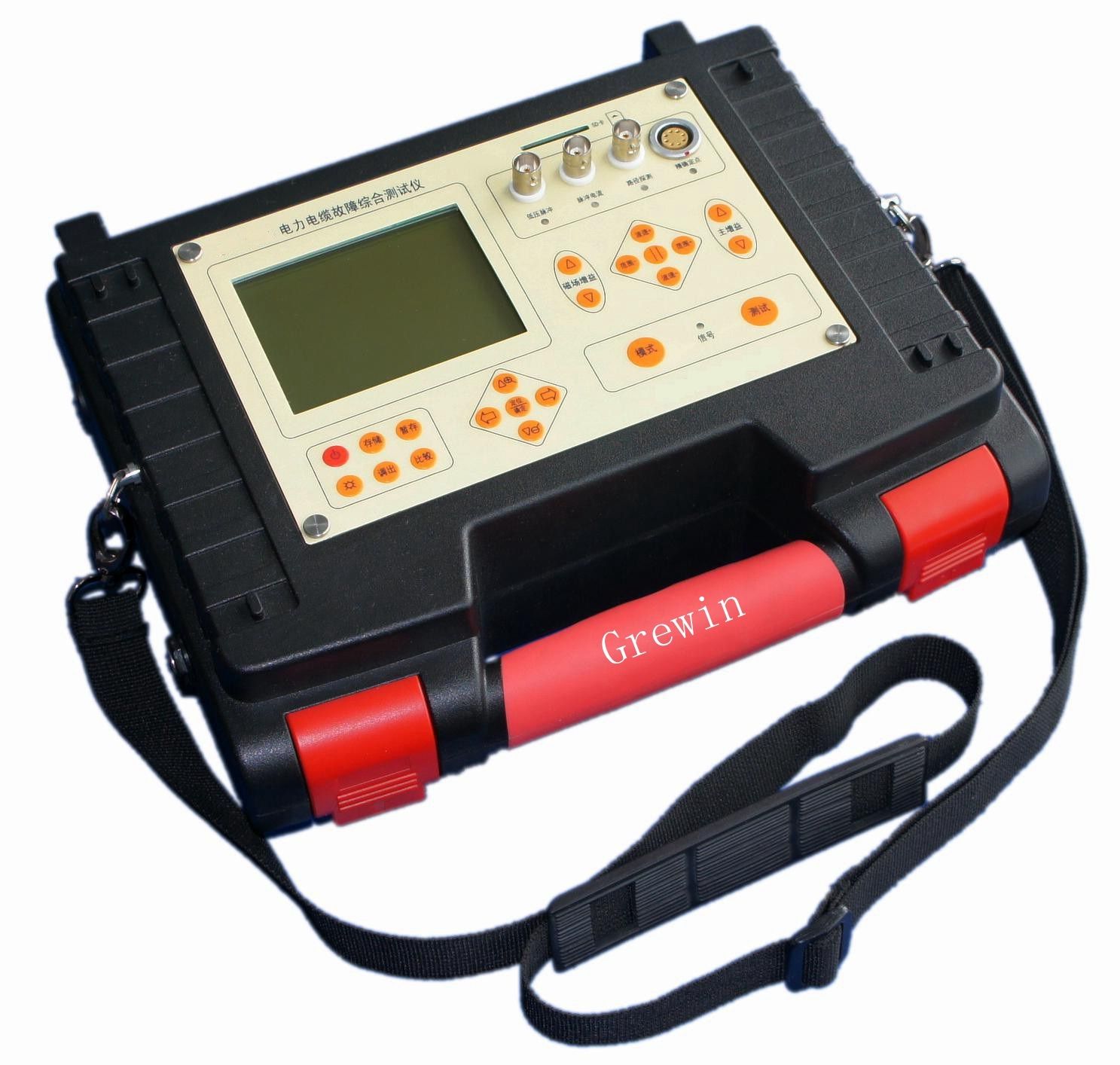

1. RCI-1200M Integrated power cable fault tester

• Function and accessories:

1. RCI-1200T route tracing signal generator

• Signal generator for route tracing. Accessories: output line, earth stake

1. Charger for RCI-1200T/M

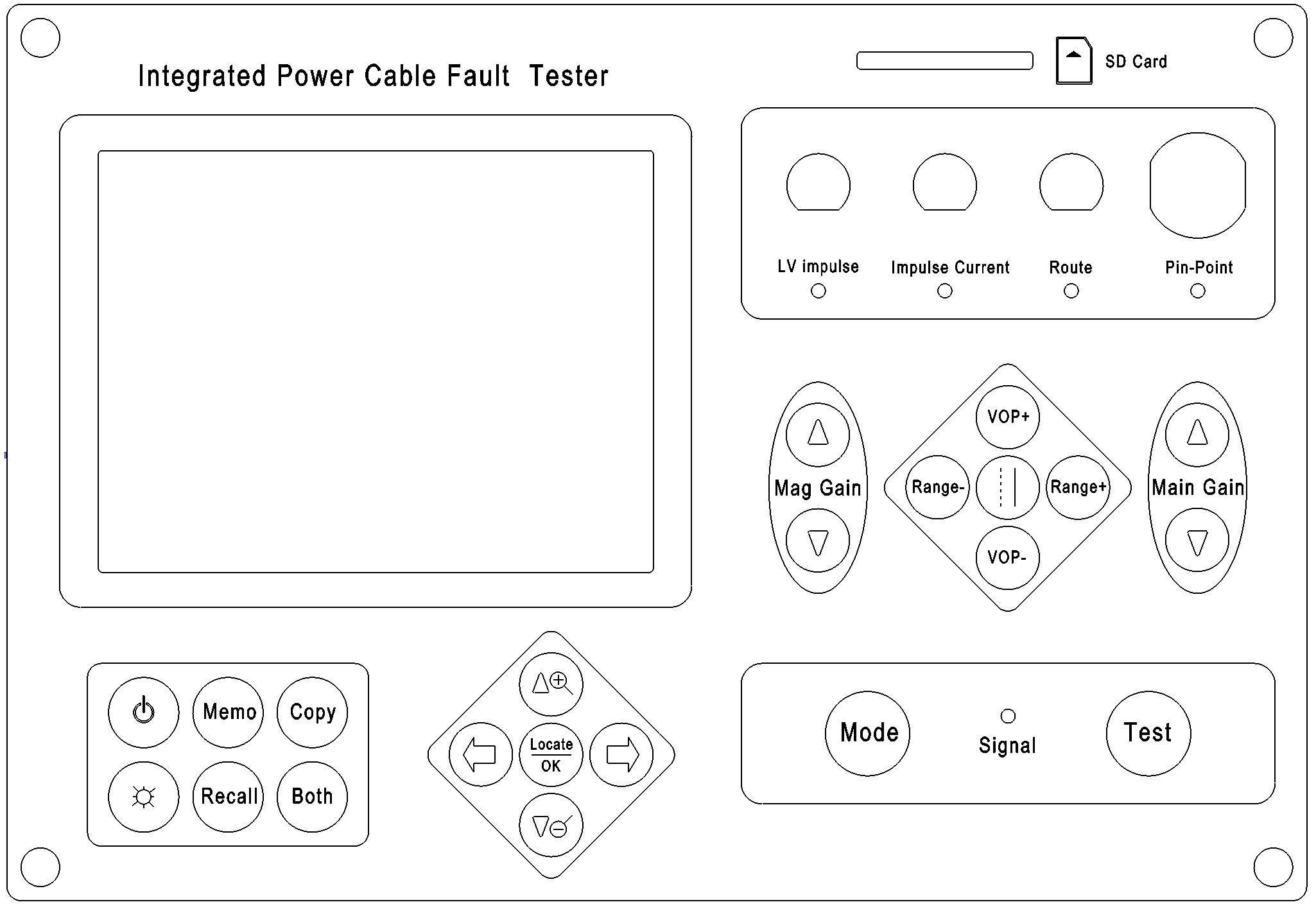

1. Structure:

1. Function introduction:

•     Press 2 sec. to turn on/off device
•     Press to open/close the backlight
• Memo: Save current waveform
• Recall: recall the history waveform from the SD card
• Copy: Copy current waveform for comparing
• Both: Compare the current waveform with the copy waveform
•           Move the cursor
• Locate/OK: Locate: auto cursor moving and fault locating

•           When normal test, waveform zoom out/in

• Mag. gain+/- :Adjust the synchronous magnetic signal gain under the pin-pointing mode
• Range+/-:change the current test range
•      Cursor switch: switch the solid cursor and the dotted cursor
•  VOP+/-:Adjust the cable pulse velocity
•  Main gain+/-: Adjust the gain of distance testing, audio gain of pinpointing and the gain of route signal.
• Mode: Choose working mode
• Indicator light on the right corner: indicate the different working modes including low voltage impulse ,impulse current, route tracing and pin-pointing.
• Test: Under the low voltage mode, press for one testing. Under the impulse current mode, press one time to waiting for triggering. Invalid under the pin-pointing/route tracing modes.
• Signal indicator light: Under the low voltage mode, flash when test. Flash one time when triggering under the impulse current mode. Same as under the pin-pointing mode. Invalid when route tracing mode.

1. Interface:

• Low voltage interface: connect with the low voltage impulse testing line
• Impulse current interface: connect with the impulse current coupler
• Route tracing interface: connect with the route sensor
• Pin-pointing interface: connect with the pin-pointing sensor
• SD card: insert a SD card when need to save the waveforms. Press again to popup
• Earphone: on the side of the main unit, to connect earphone for audio monitoring
• Charge port: on the side of the main unit, to connect the charger for build-in battery

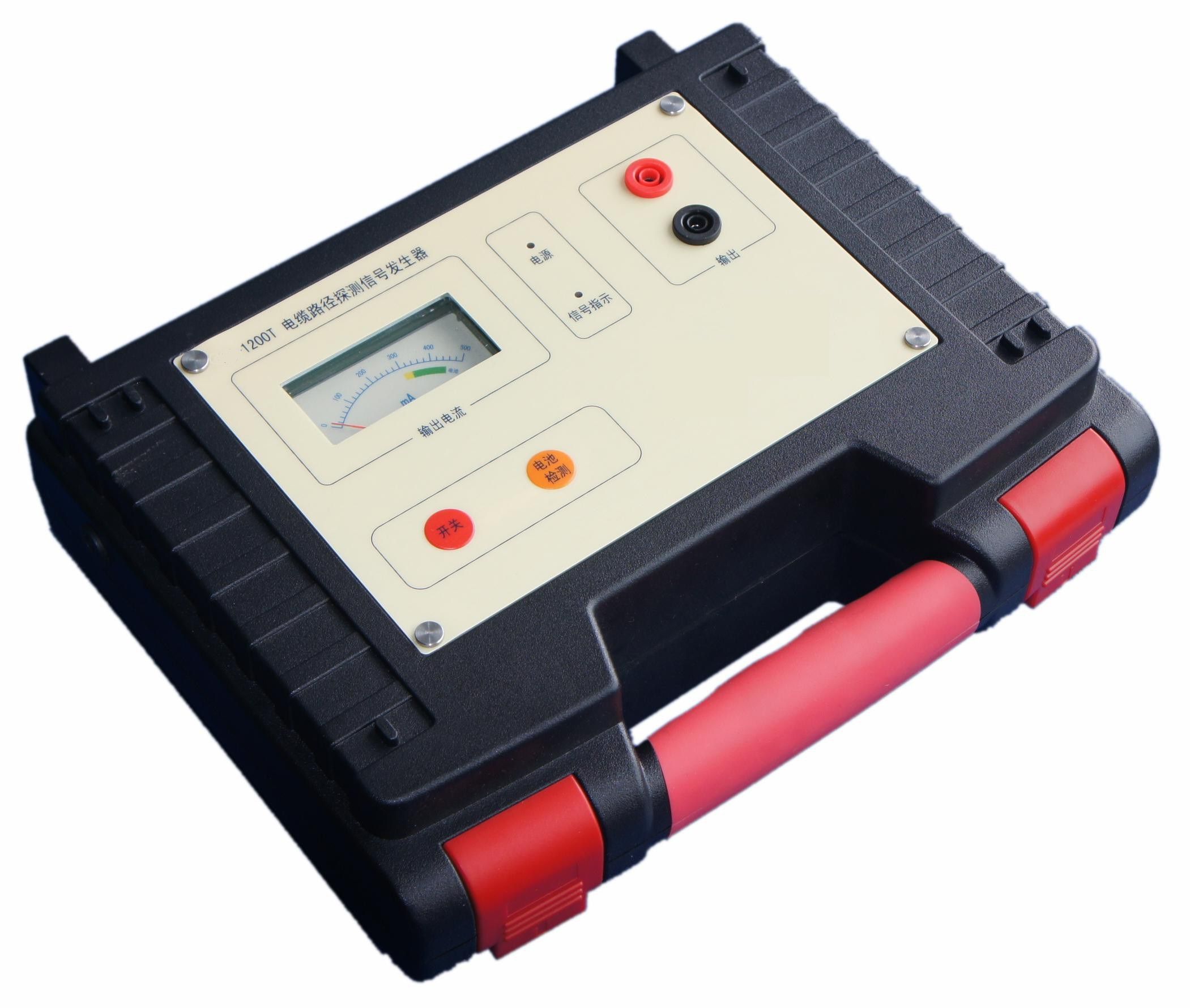

RCI-1200T route tracing signal generator

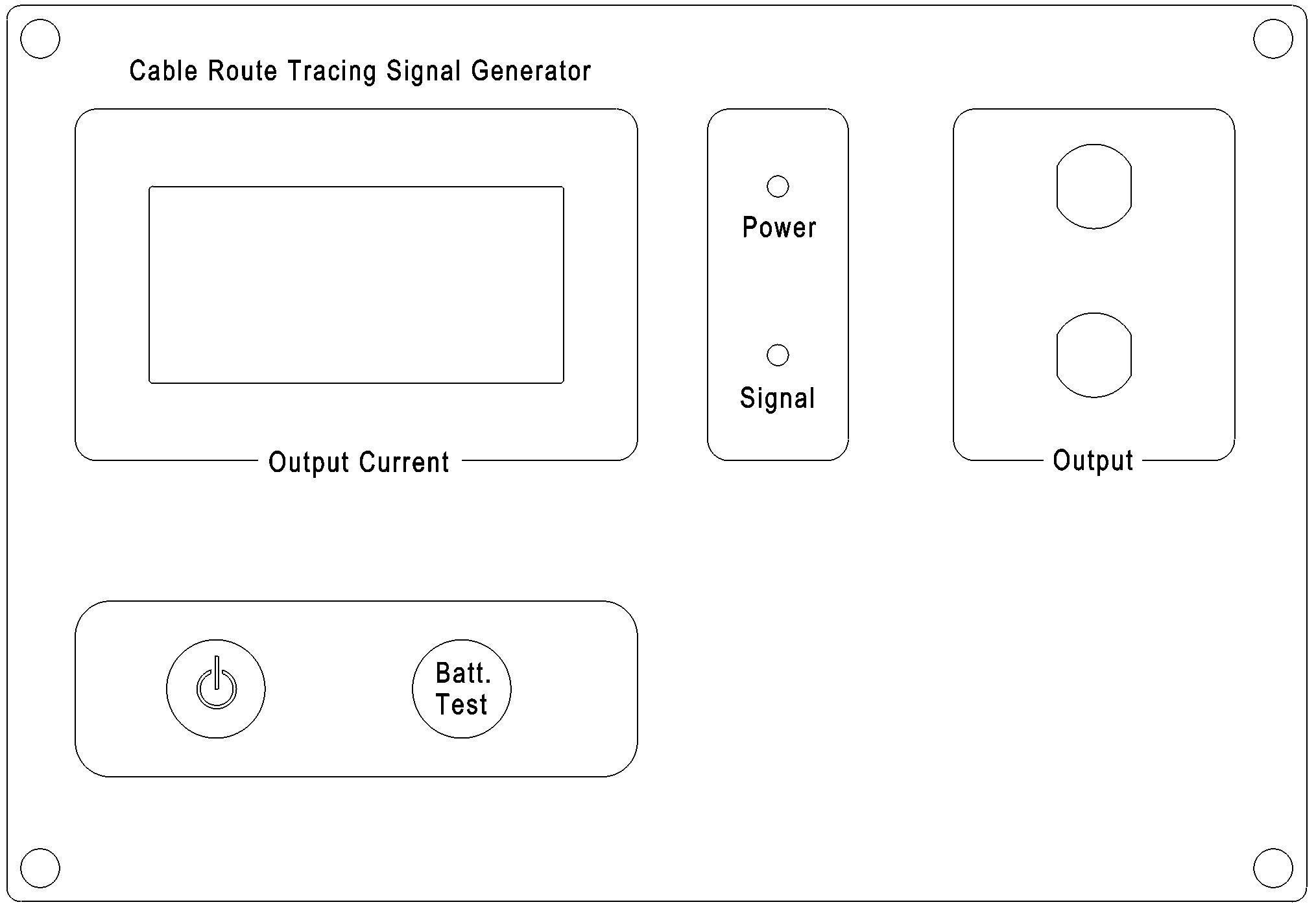

1. Structure:

1. Function introduction:

• Meter: display the output current, the full amplitude is 500mA

•     Press for 2 sec. to turn on/off the device

• Batt.test: Press to test the battery level. Workable both device open or close
• Power indicator: indicate the battery level. Bright when normal, shine when low voltage and off when too low battery.
• Signal indicator: display the signal output condition
• Charge port: on the side of the generator to connect the charger of built-in battery
