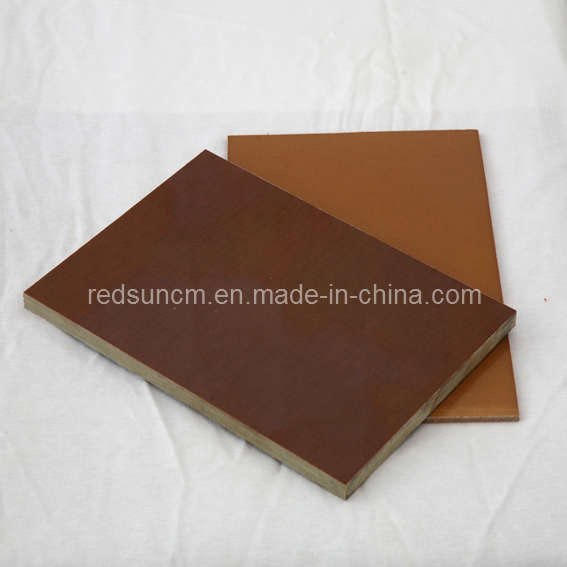

RDS326 Phenolic Cotton Fabric Laminate

Name: RDS326 Phenolic Cotton Fabric Laminate
Brand: all-electronics-online.com
SKU: 670392502
Availability: InStock
Rating: 4.4 (71 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	300/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Temperature classification is E. It is made of greige linen impregnated phenolic resin, through heated and pressed. Mechanical applications (greige linen) and good processing.

Table 1: Nominal thickness, dimension and tolerance
Thickness	Tolerance	Thickness	Tolerance	Thickness	Tolerance
mm	mm	mm	mm	mm	mm
1	± 0.15	5	± 0.48	14	± 1.00
1.2	± 0.18	5.5	± 0.48	16	± 1.30
1.5	± 0.18	6	± 0.58	20	± 1.30
1.8	± 0.23	6.5	± 0.58	25	± 1.50
2	± 0.23	7	± 0.68	30	± 1.50
2.5	± 0.33	8	± 0.68	35	± 2.00
3	± 0.33	9	± 0.80	40	± 2.00
4	± 0.38	10	± 0.80	45	± 2.80
4.5	± 0.38	12	± 1.00	50	± 2.80
Note: 1. The tolerance mentioned above is only used to refer and the actual one is according to the standard.
2. Normal dimension: (960± 15)mm× (1460± 15)mm or negotiated.
Table 2: The technical requirements
No	Property		Unit	Normal value
1	Density		g/cm 3	≥ 1.33
2	Water absorption (Thickness is 3.2mm)		%	≤ 1.60
3	Flexural strength perpendicular to the layer direction	Crosswise	MPa	≥ 104
3	Flexural strength perpendicular to the layer direction	Lengthwise	MPa	≥ 93
4	Impact strength	Crosswise	KJ/m 2	≥ 7.2
4	Impact strength	Lengthwise	KJ/m 2	≥ 5.9
5	Bonding stength		N	≥ 7117
6	Breakdown voltage parallel to the layer direction at room temperature (conical pin electrode, 20s step by step)		kV	≥ 15
Note: Thickness of the sheet is 12.7mm

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
