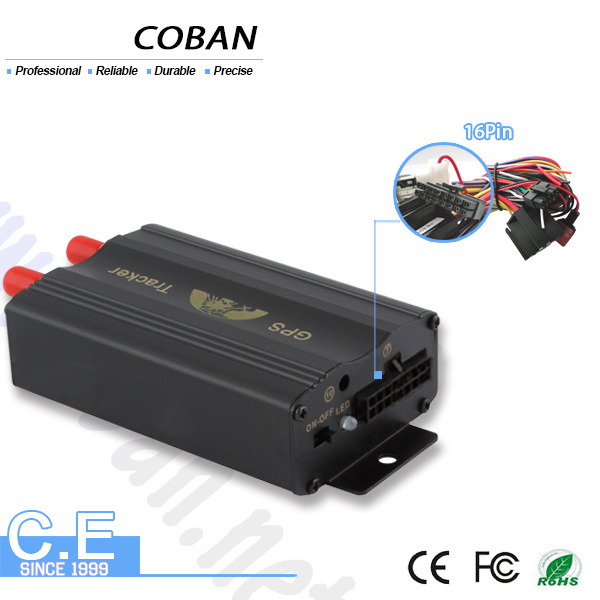

Real Time APP Accurate Vehicle Tracker with Acc Door Shock Alarm Tk103b

Real Time APP Accurate Vehicle Tracker with Acc Door Shock Alarm Tk103b
Price: US $ 31.0/Piece
Trade Terms: CFR,CIF,EXW
Min Order: 10/Piece
Pay Type: T/T,Money Gram,Western Union
Prod Model: TK103B+
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature: Oil Cut and Resume, Real Time Fuel Monitor
Weight: 120g
Tracking Way: SMS, GPRS Web Platform, APP Tracking
Warranty Time: 12 Months
Main Functions: Acc, Door Shock Alarm, Geo Fence, Overspeed Alarm
Voltage Of Car Power System: 12V-24V
Battery: Backup Battery
OEM: GPS Tracker Support Customized Logo/Packing
GSM Quad Band: 850/900/1800/1900MHz
GPS Module: Ns1315
Type: GPS Tracker
Use: Automotive
Carrier Frequency: Dual-Frequency
Chip: SiRF
Model: 103
Screen Size: No Screen
Brand: Coban
Certification: CE, FCC

Product Description

Model: GPS103B+
This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.

Applying directions:
Vehicle fleet/logistics/Vehicle rental (12-24V)

Multiple Tracking Ways:
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Web based online tracking on PC at our server www.gpstrackerxy.com.
* IOS and Android APP

Function Description:
*Dual Sim Card
*Support central lock relay

*Google maps gps car tracking system with remote controller gps tracker
*Support fuel sensor for fuel level monitor
*Get location in real street/address name, send "address+pas Google maps GPS car tracking system
*Location Based Service.
*Remote Engine-stop and Resume.
*Tracking function by timing and frequency
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence
*Door / ACC Alarm
*Movement alert.
*Over speed alarm.
*Power supply disconnection alarm.
*Low battery alarm function
*Check the vehicle status
*Set up DOOR ALARM, ACC ALARM, SENSOR ALARM
*Alarm without GSM network service
*Less GPRS traffic
*Automatic update positions of vehicle turns
*GPS blind area alarm

New Functions:
1. ACC working inform when track with unlimited times upon time interval
2. Decide how many times of alarm message
3. Calibration of fuel sensor
4. Built in Acceleration Sensor Alarm

Optional accessories:
*Central lock relay
*External shock sensor

*Fuel sensor for monitor fuel
*Alarm siren
*SD card



Technical Data:
Contentspecifications
DIM.83*54*26mm
Weight120g
NetworkGSM/GPRS
Band850/900/1800/1900Mhz
GPS Sensitivity-159dBm
GPS Accuracy5m
GPS Start timeCold status  45s
Warm status  35s
 Hot status  1s
Voltage12 V -24V

Backup batteryChargeable 3.7V500mAh Polymer Li-Battery
Storage Temp.-40°C to +85°C
Operation Temp.-20°C to +65°C
Humidity5%--95% non-condensing

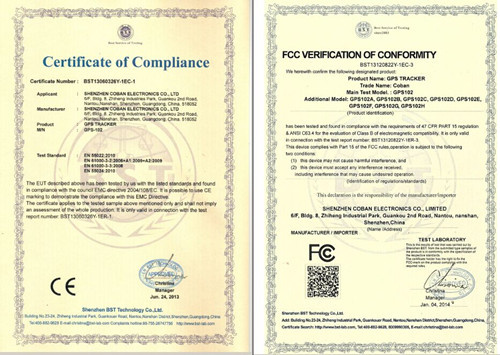

Certification


Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.

As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.

Our company specialized in GPS tracker, car anti-theft alarm system.

Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
