| Prod Model: |
GPS105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Features: |
Cut Car Engine& Camera, Fuel Check&Temperature Sen |
| Weight: |
120g |
| Tracking Solutions: |
SMS, GPRS Platform, Android Ios APP |
| Car Anti-Theft: |
Cut Car Engine Remotely, Arm/Disarm Remotely |
| Arm Alarms: |
Acc, Door Open Alarm, Shock Sensor Alarm |
| GPRS Protocol: |
TCP UDP |
| Applying Directions: |
Vehicle Fleet/Logistics/Vehicle Rental (12 to 24V) |
| Warranty Time: |
12months |
| Certificate: |
FCC CE |
| GPS Module: |
Ns1315 |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |
Coban 105 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE, FCC |
Product Description
School bus gps tracker GPS105 Automotive bus gps tracker with rfid reader1. Storage& Data Load
2. Auto track Continuously
3. Monitoring Surveillance
4. Emergency Alarm
5. Photograph, Fuel Alarm
Function1. Tracking: Single Locating; Auto track continuously; Get location in absolute street address; Location based service (LBS); View photos on cell phone; Monitor; Modes switch between "track" & "monitor"; Storage; Data Load.
2. Alarm Function: Low battery alarm; Power off alarm; SOS; Geo-fence; Movement alarm; Over Speed Alarm; Fuel alarm; Temperature alarm
3. Sleep Function: Sleep can save power to extend the standby time
Main Features:1. Support both GPS / GSM station positioning ways.
2. Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions in CD enclosed).
3. Support GPRS on-line and GPRS re-connected automatically if GPRS drops
4. Compatible with the original vehicle anti-theft alarm, can be synchronized with the events alarm and disarm from original car alarm system.
5. Support SMS / GPRS dual-mode switching
6. Support configure by remote terminal.
7. Support for point-to-point, point to group, group-to-group monitoring.
8. Set multiple functions of security, positioning, monitoring surveillance, photograph, emergency alarms and tracking in its entirety.
Applications
Used widely for positioning and tracking vehicle and other moving objects.
General Description:
It is based on GSM/GPRS (850/900/1, 800/1, 900MHz) wireless telecommunication internet and GPS satellite global position system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms, photograph, fuel detection and tracking in its entirety.
Track by multiple tracking 4 ways:
1)SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2)Absolute street address by SMS
3)Free PC based tracking application
4)Optional web server
| Content | Specifications |
| DIM | 85*71*26mm |
| Weight | 170g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Simcom900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 45s
Warm status 35s
Hot status 1s |
| Applicable vehicle power | 12 V -24V
|
| Backup Battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |

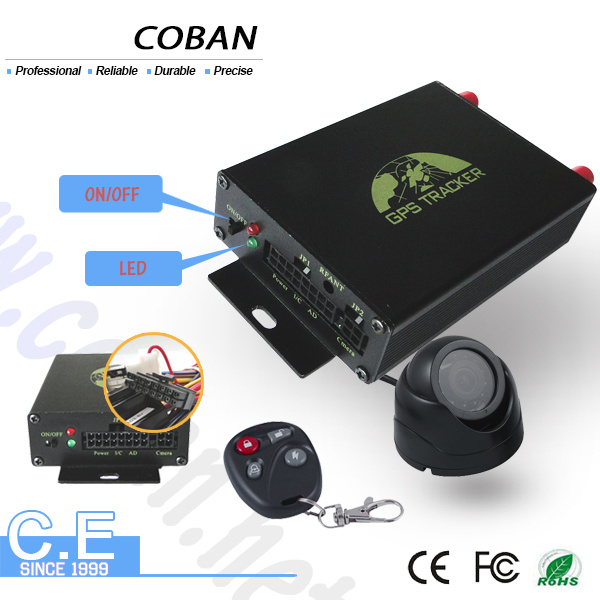

Picture:
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
