| Prod Model: |
TK310 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
+9V - +36V / 1.5A |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
Product Description

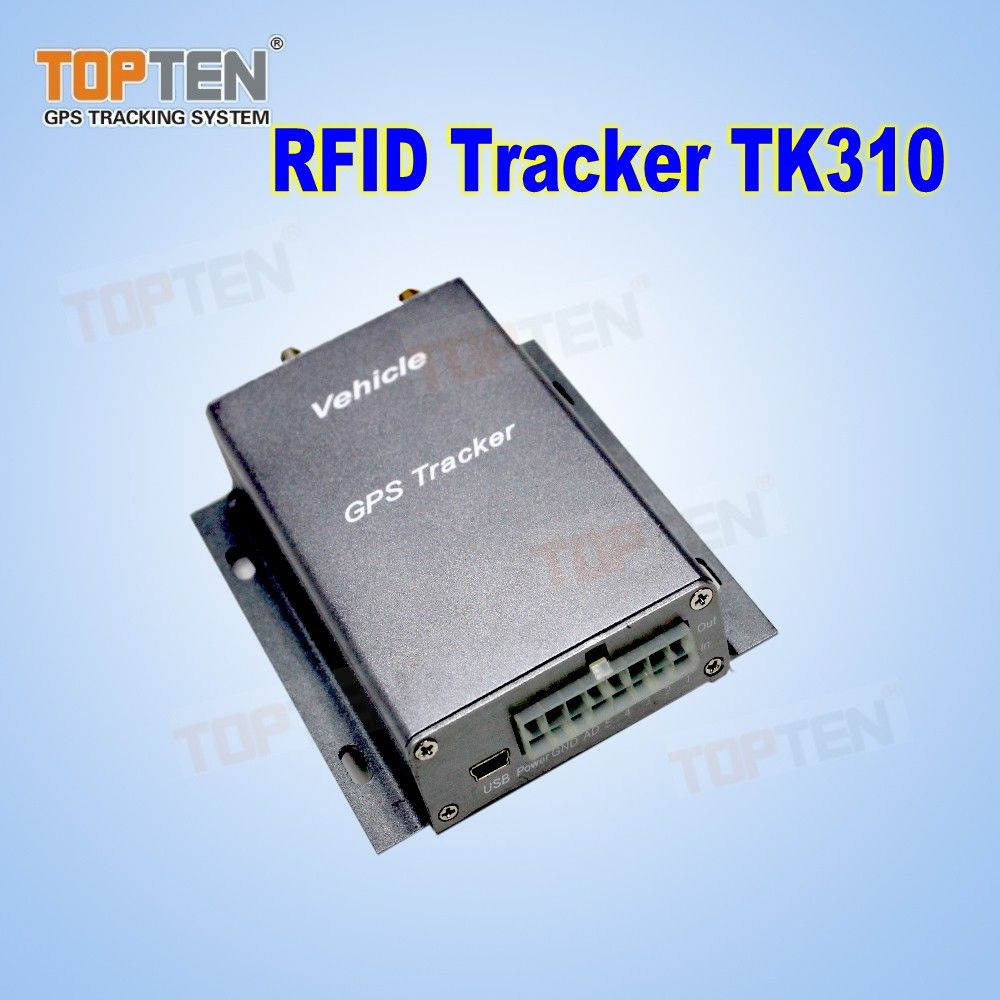

GPS Vehcle Tracker TK310 is a GPS/GPRS based tracking device specially developed and designed for vehicle real-time tracking and fleet management
Unique selling points:
1. Track & check location; Monitor voice; Movement/geo-fence/overspeed alarm; SOS button
2. Cut off engine by phone;
3. Monitor Fuel Level
4. Work with RFID to do fleet mangement
Mini GPS tracker for car;
Real-address track by mobile phone easily(optional),
Easy installation; GPS system
Model: GPs Vehicle Tracker TK310
Features & Functions:
1. Tracking via SMS or GPRS (TCP/UDP)
2. Current location report
3. Tracking by time interval or by distance
4. Data logger function with 4Mb memoray.
5. Built-in motion sensor for power saving
6. SOS panic button
7. Geo-fencing control, Over-Speed alert
8. Internal backup battery, Low battery alert
9. Industrial design with voltage/current overload self-protection.
10. Engine cut-off to stop the car
11. Monitoring or 2-way talking (optional)
12. Alert when TK310 enters/exits GPS blind area
13. Reminder SMS when the TK310 is turned on
14. I/O: 5 digital inputs, 2 analog inputs, and 5 outputs.
15: Locate by SMS with Google map's link
16. Odometer function
17. Inbuilt shock sensor for power saving;
18. Industrial design to work in hard conditions for car/truck, working voltage: 10VDC -36VDC;
Standard Package:
Main unit 1PCS
GSM antenna 1PCS
GPS antenna 1PCS
Relay 1PCS
Wiring 1PCS
Microphone (optional) 1PCS
GSM frequencies: 900/1800/850/1900MHz
How to track:
1. You can track the car by SMS easily;
2. You can track by management software;
Delivery time:
Order <100pcs, delivery is arrange in 3 working days upon receipt of the payment;
Order >100pcs, delivery time is about 3-7 days or according to our production schedule
Payment Term: TT, Western Unin and Paypal
We have no requirement on MOQ, if you do not customize your logo on our device or special function.
Our main products:
Gps Vehicle Tracker, Gps Vehicle Tracking System, Gps Car Tracker, Gps Tracking System, Gps Car Tracker Device, Gps Auto Tracker, Gps Tracker, Auto Gps Tracker, Gps Tracking, Tracker, Car Tracker, Gps, Gps Tracking Device, Car Gps, Gps System
| Power Supply | +9V - +36V / 1.5A |
| Backup Battery | 850mAh |
| Normal power consumption | 85mA/h |
| Dimension | 104mmx 62mm x 24mm |
| Installation Dimension | 104mmx 83mm x 24mm |
| Weight | 190g |
| Operating temperature | -20 ~ 55° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | Quad Band GSM 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | synchronous GPS time |
| Altitude Limit | 18, 000 meters (60, 000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max |
| Flash Memory | 4MB |
| Button | 1 SOS Button |
| Interface | 5 digital inputs (3 negative and 2 positive triggering); 2 analog inputs; 5 outputs |
