| Prod Model: |
M558 |
| GSM Module: |
Quectel M26 |
| GSM Frequency: |
850/900/1800/1900 MHz |
| GPS Chipset: |
U-Blox 7020 |
| Warranty: |
12 Months |
| Tracking Software: |
Free Websited Based Platform and Mobile APP |
| Accuracy: |
5 Meters |
| Server: |
Cloud Server |
| Weight: |
0.2kg |
| Type: |
GPS Tracker |
| Certification: |
Ce ; RoHS ; FCC |
Product Description

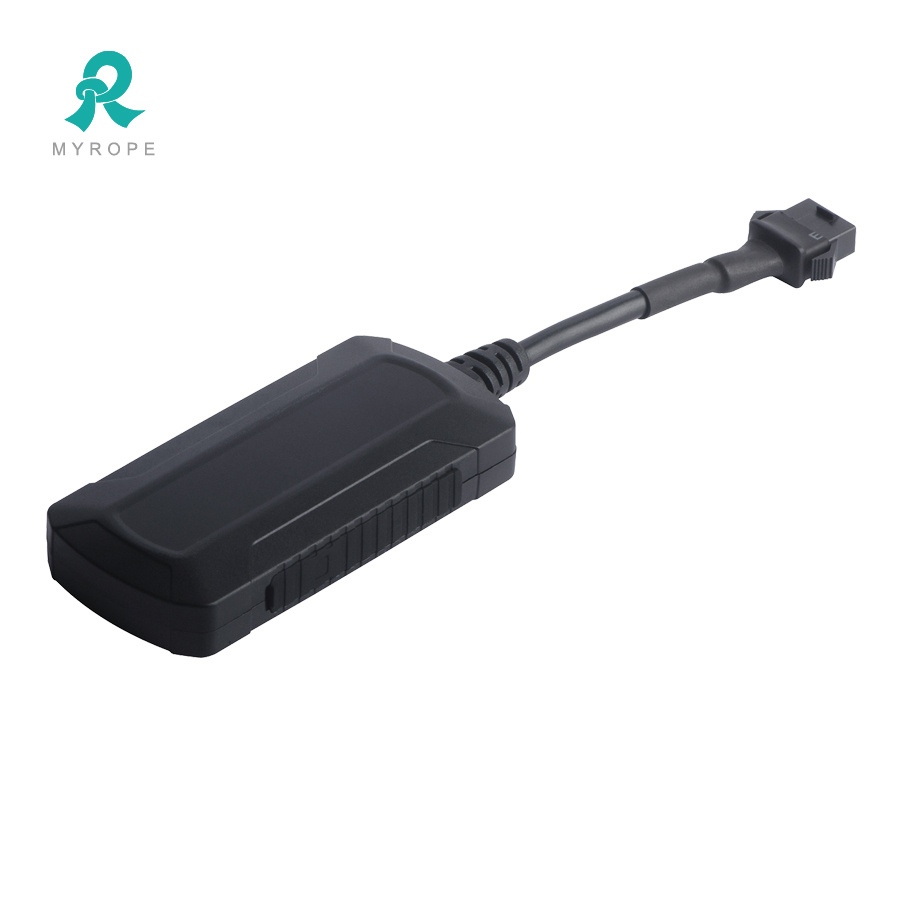

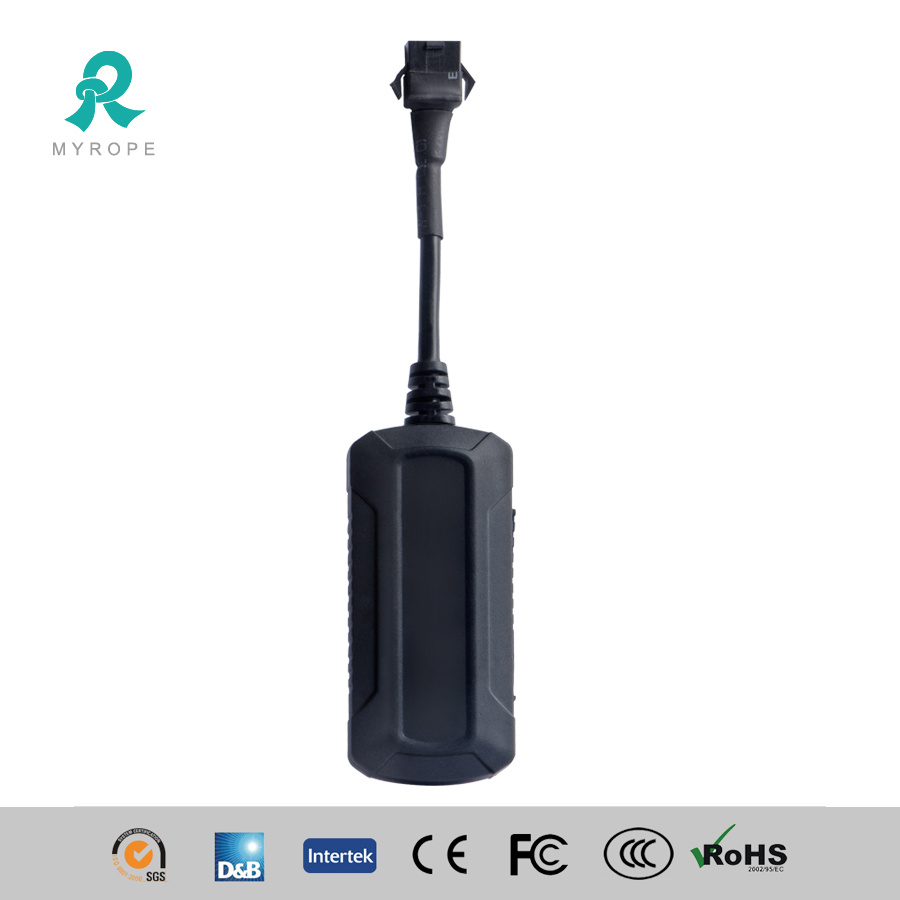

Cheap Mini GPS Tracker for Car, Motorcycle M558
1. Product Overview
M558 GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module is for getting location data from
satellite, and GSM module is for transferring data to server so that people can check the information via PC or mobile phone. Our GPS Tracking
device, with the best quality, stable performance and versatile functions,can be applied to various kind of fleet management like construction
trucks, rental cars, logistics vehicles and public transportation, anti-theft system and security purpose.
2. Functions
| Smallest size, as small as USB dongle | Parking alarm; |
| Built-in antenna; | Tired driving alarm; |
| Track by SMS or GPRS; | History playback; |
| Real time tracking at intervals; | Mileage statistics; |
| Resend data from signal dead zone; | Reports statistics; |
| Low power alarm; | Remotely update firmware. |
| Overspeed alarm; | |
| Geo-fence alarm; | |
3. Specifications
work voltage | 8VDC~100VDC |
work current | 50mA~160mA |
GSM module | Four Band: GSM 850/900/1800/1900Mhz Quectel M26 |
Communication protocol | UDP/TCP(can be customized) |
GPS module | Ublox chipset |
GPS sensitivity | -159dBm |
GPS frequency | L1, 1575.42 MHz |
C/A coding | 1.023 MHz chip rate |
Channels | 20 channels examine track |
Position accuracy | 10 meter, 2D RMS |
Speed accuracy | 0.1 meter/second |
Tine accuracy | GPS time synchronization |
Default data | WGS-84 |
Recover | Average 0.1 second |
Hot start | Average 1 second |
Warm boot | Average 38 second |
Cold boot | Average 42 second |
Height limit | 18,000 meter (60,000 feet) max |
Speed limit | 515 kilometer/second (1000 knots)max |
Acceleration limit | Less than 4g |
Work temperature | -20°~ 70° C |
Storage temperature | -30°~ 85° C |
Humidity | 5% ~ 95% noncondensing |
Terminal size | 55mm × 28mm × 12mm |
Inside battery | Continuous working no less than 4 hours |

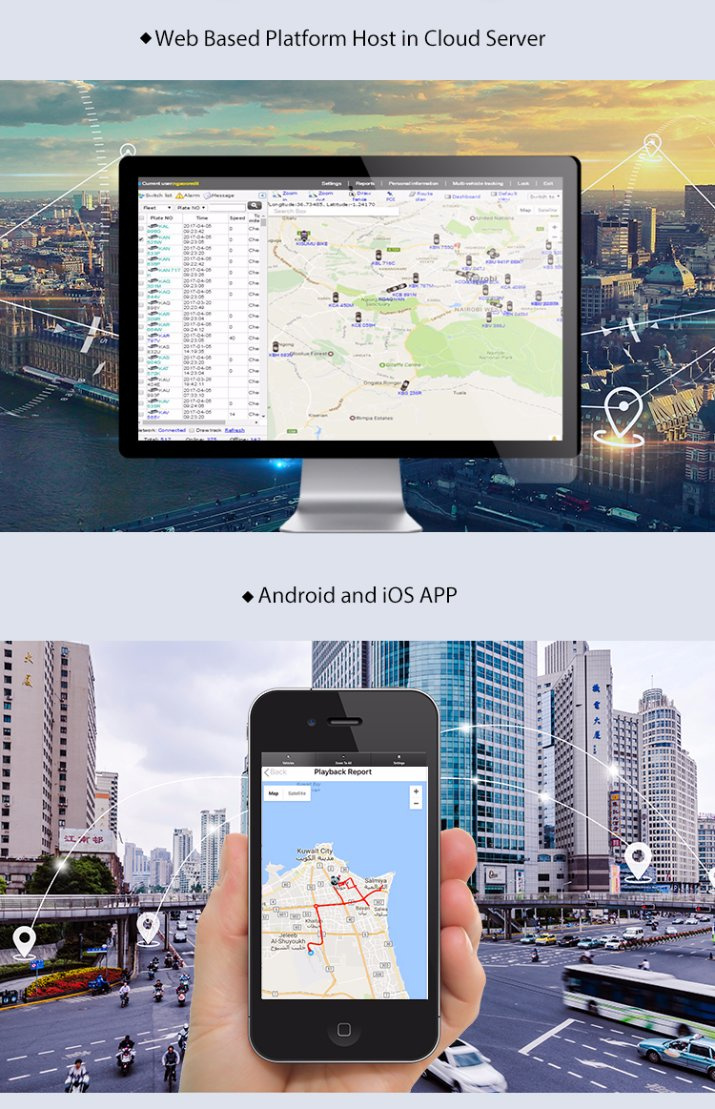

4. Web Platform & APP
1. Stable and fast response.
2. It can support more than 10000 units tracker .
3. Can track in real time.
4. Remote control the vehicle by changing the settings.
5. With full function like take photo, POI, Geo-fence, check alert message and etc.
6. We can customize the software as your requirements
7. Our software support 18 languages: Chinese, English, Russian, Spanish, Portuguese, Norwegian, Vietnamese, Arabic, Polish, Sinhala, Tamil,
farsi, Danish, Serbian, Turkish, greek language, Georgian, Hrvatski.
8. Easy to manage.
9. Support many kinds of reports.
10. PC-based, Web-based and smart-phone based APP .
