| Prod Model: |
GSM GPRS GPS tracking device 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
94mm*60mm*38mm |
| Weight: |
300g |
| Inbuilt Large Battery: |
Long Standby Time of 60 Days |
| Quad Band: |
850/900/1800/1900 MHz |
| Network: |
Container Vehicle GPS Tracker with GSM/GPRS |
| GPS Cargo Tracking Monitoring: |
Waterproof, Magnetic and Internal Antenna |
| Car Security: |
Stop/Resume Car Engine Remotely |
| Tracking Solution: |
SMS, GPRS Platform, Android Ios APP Tracking |
| Certificate: |
Ce FCC |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Get Position, GSM Transmit |
| Port Number: |
20 |
| Model: |
GPS GPRS GSM Tracker 104 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

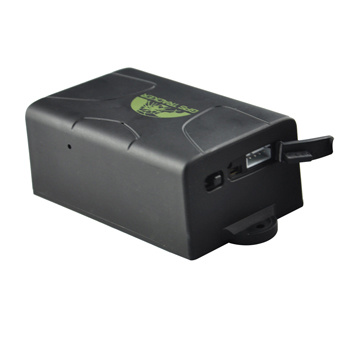

Real Time GSM GPRS GPS tracking device with long standby battery GPS104
how does the GPS Car Tracker work?
All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.
The unit is powered by automotive battery, and should be installed inside a vehicle .
Here is a small list of what it can do for you and your vehicle:
1. Powerful magnetic---With powerful magnetic shell , the tracker device can absorb to car iorn part tightly .
2.6000mAh battery -- TK104 has built-in 6000mAh battery with standby time as long as 80 days .
3.Track on Demand - Replies with a TXT message of current latitude, longitude, speed, and time, as well as an Internet map link to your cellphone to show you exactly where the GPS tracker/your vehicle is.
4.Geo-fencing control - When the vehicle moves in/out the preset scope, it will send an SMS alarm to the authorized phone numbers.
5.Movement and Speed Alert:--The tracker can warn you with SMS message when the vehicle starts to move from a stationary status, or when the vehicle is moving faster than a preset speed.
6.Stop the Engine- You can send an SMS message to the tracker to cut off the gas and battery power, so the engine will remain in an immobilized stated until your remove the alarm status.
7.GPRS- With a GPRS enabled SIM card, you can monitor real-time movement of your vehicle with the supplied software on your computer.
8. Web Platform :--- www.gpstrackerxy.com , demo ID : demo , password : 8888 .
This platform enables you to create management account , subaccount . Hundreds of gps units can be tracked on platform in the meantime .
Advantages of this Tk104 gps tracker :
1.Waterproof ; Power magnets ;
2.built-in GSM/GPS antenna.
3.6000mah battery ,standby 60 days.
4.Geo-fence , movement alarm ;
5.overspeed alarm , low battery alarm .
6.Stop and resume oil/engine remotely by SMS.
7.Sleep mode to save battery.
8. GPS+LBS double tracking .
9. Voice-monitoring function .
10. Authorized number added and deleted function
11. SMS tracking by calling with google map link .
12. Get Absolute street address by sms
13. Free pc based tracking application
14.Optional web server : www.gpstrackerxy.com
Technology parameter:
*Dimension: 83mm*54mm*26mm, 125g in weight
*Network:GSM/GPRS
*GSM Network frenquecy: 850/900/1800/1900Mhz
*channel: Parallel 20 channels
*sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix: Cold status 45s, Hot status 1s

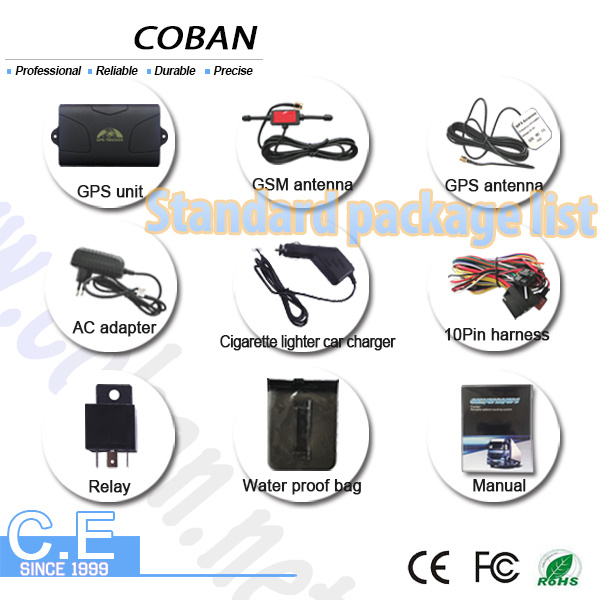

Package contents:
1 x GPS TRACKER
1 x GPS Antenna
1 x GSM Antenna
1 x AC Adapter
1 x Lighter adapter
1 x Harness
1 x CD
1 x Manual
1 x waterproof bag.
GPS104 Specifications
| Content | Specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GPS/GSM/GPRS |
| Band | 850/900/1800/1900Mhz or 900/1800/1900Mhz |
| GSM/GPRS Module | Simcom340z or Simcom300z |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA±1mA |
| GSM operating Current | 54mA±3mA |
| GPRS Current(data transfer) | 60mA±5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A±0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Tracking Solutions
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking
-Web server online tracking. Capable of monitor 10,000 objects
