| Prod Model: |
TK108-ER |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Multi-Language: |
English, Spanish, Arabic, Portuguese |
| Working Voltage: |
+5.3 ~+36VDC |
| Cut Off Engine: |
by SMS or Platform |
| Data Logger: |
8MB |
| Main Unit Size: |
62*50*22mm |
| Sos Panic Button: |
Optional |
| GPS Chipset: |
Ublox 7 |
| GPS Sensitivity: |
-162dBm |
| Antenna: |
External |
| Certification: |
Ce FCC RoHS |
Product Description
Real Time GSM / GPRS / GPS Vehicle Tracker (TK108)
We are manufacturer of GPS tracker, GSM car alarm system, GPS Vehicle tracker, wireless GSM alarm, Mini GPS tracker & other GPS Tracking Device. Our GPS Vehicle tracker acts as a normal & GPS tracking device. It is much better than normal two-way car alarm. It is not only an advanced car alarm, but also a precise GPS tracking system.
This Mini GPS Vehicle Tracker is the most cost-effective tracking device to track your vehicle. It has very small size, so it can be installed in very secret place. The installation & usage is very easy. 1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name..(need support of the TS01 or TS03 center);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;

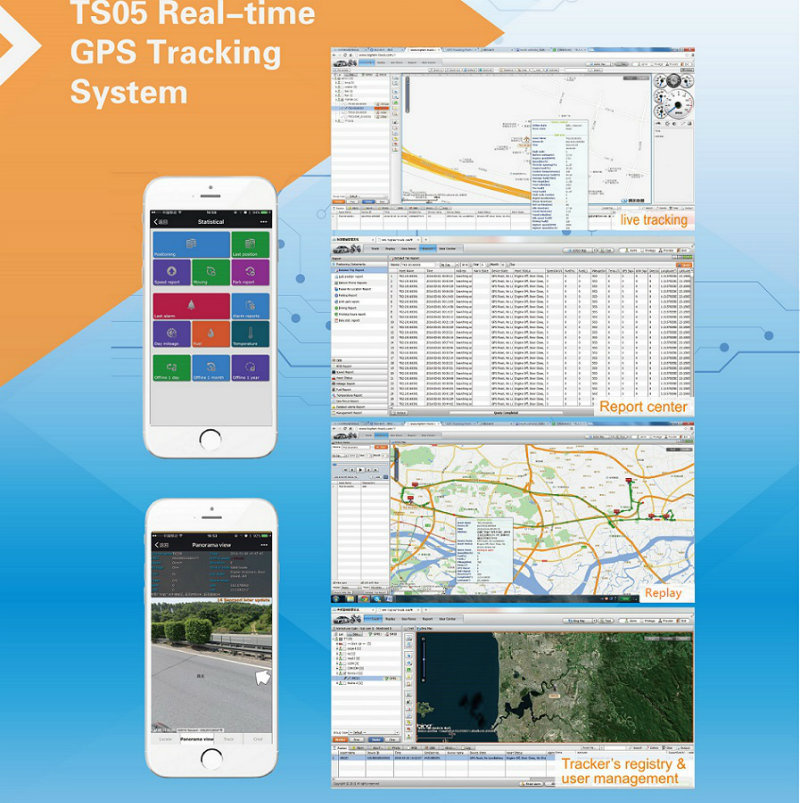

6. Online website tracking by GPRS data network;
7. Odometer function
8. Over-speed alert, Geo-fence alert;
9. Movement alert which can be used as an alarm.
10. Voice monitoring.
11. Cut off engine to stop the car safely by SMS/GPRS;
12. Built-in motion sensor for power saving & triggering alarm
13. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alert immediately.
14. Support firmware upgrade on air remotely.
15. Support SOS button(optional)
16. Support analog input for fuel monitoring

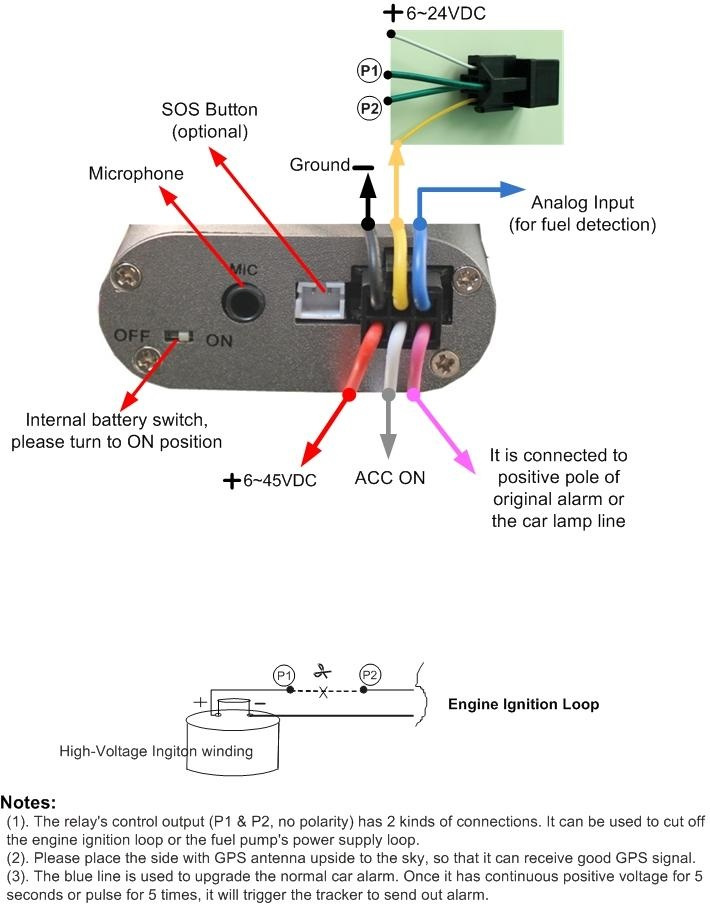

17. I/O: 3 inputs and 1output
18. It can upgrade the normal car alarm with remote alarm function.
19. Compact size with water-proof design
20. Wide working voltage range, from 5V-36VDC, suitable for motorcycle, car or big truck.
21. 8Mb offline data logger, it can store 8192 waypoints.
Topten Electronics Technology Limited is a leading manufacturer which is specialize in GPS tracking system with car alarm functions. We provide good solution for motorcycle, vehicle, truck and ship tracking and security, and have 10 years of experience in selling products to all over the world.

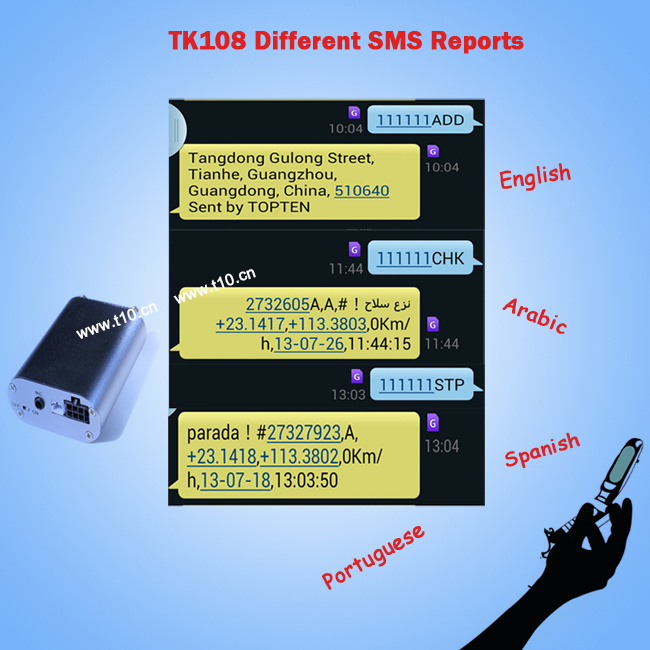

SMS report in different languages:
English, Arabic, Spanish, Portuguese.
Track by SMS in different languages:

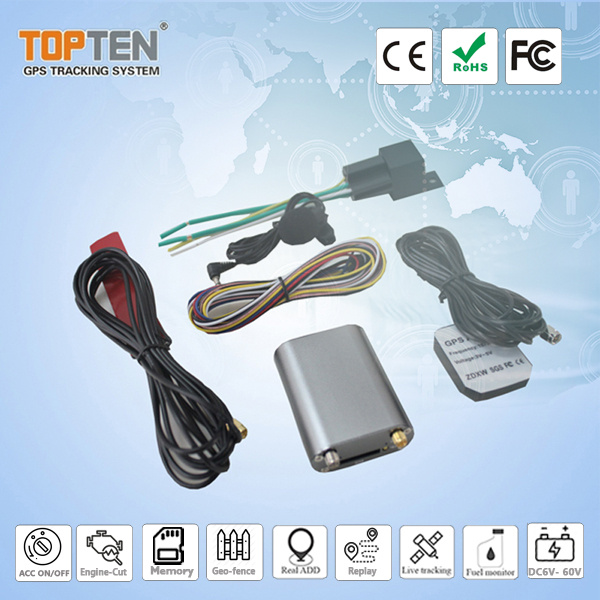

| TK108 Standard Packing Accessories |
| Main unit | 1pc |
| 6pin wiring | 1pc |
| 12VRelay | 1pc |
| Micphone | 1pc |
| GPS antenna | 1pc |
| GSM antenna | 1pc |
| Manual | 1pc |
We have our own R&D team developing 4-5 new models each year.
Products are with CE, RoHS, FCC certificate.
Africa, South America, Southeast Asia and Middle East are our main export market.
We not only provide devices, but also professional technical support and satisfactory after-sales service.
Welcome to meet us!
Fair: Global Sources Consumer Electronics Show
Date: 11-Apr-2018 to 14-Apr-2018
Location: Asia-World Expo , Hong Kong
Both Number: 1J15
Feel free to contact us for more details please.
Tel: +86 020 3835 1400
Guangzhou Topten Electronics Factory is a leading and professional enterprise which specializes in GSM car alarm system, GPS tracking system and other security products in China.
Topten Electronics Technology Limited is the subsidiary company of Guangzhou Topten Electronics Factory.
Our key products are GPS/GSM car alarm system, GPS/GPRS vehicle tracking system, GSM car alarm system.Parts of our products have gained the CE and FCC approval.It is warmly welcomed by customers from more than 95 countries in Africa, Middle East, Europe and Southeast Asia.
We have much experience in security field, especially in car alarm and GPS vehicle tracking, which makes us experts in providing reliable and cost-effective solutions for monitoring and protecting vehicles.We have strong force in continuous research and development, which enables us to be the leading manufacturer in GPS tracking system and GSM car alarm.
We adopt an advanced management system to ensure a qualified working team and the promptness to act to the market.Strict quality control is executed in each link of the whole production process.Every step from materials to semi-finished items to completed products is operated according to the requirements of ISO9001:2000 quality management system.
With the best service, high quality products, competitive price and attractive functions, we are sure that you will be satisfied with our cooperation.We sincerely hope to establish the friendly and mutual-beneficial partnership with you in the coming future.
