| Prod Model: |
mini GPS Tracking device GPS102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Small Or Big: |
Small and Light (Weight 50g) |
| Standby Time: |
80 Hours |
| Warranty Time: |
12 Months |
| Memoery SD Card: |
Yes |
| Waterproof: |
Yes |
| Magnetic: |
Yes |
| Packaging: |
40 Unit /Carton Standard Color Box |
| GPRS Platform: |
with Google Map |
| Delivery Time: |
2-3 Business Days |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit Data |
| Port Number: |
20 |
| Model: |
102 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

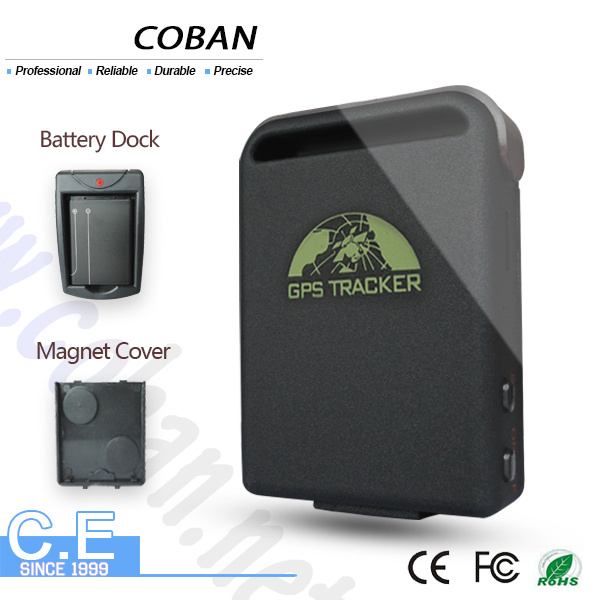

Real Time mini GPS Tracking device with listen in GPS1021. Smallest, magnetic, waterproof, , handheld, memoery, online realtime tracking---Car GPS locator / GPS tracking locator
1). This product can locate accurately and be used in guarding Vehicle against theft, Protecting child / Elderly / disabled / pet, Managing personnel and Tracking criminals secretly.
2). GPS Tracker standby 4 days, track by google earth/real-time track by the monitor software in PC/WAP-track by PDA cell phone.
2. Details:
Working Based on existing GSM/GPRS850/900/1800/1900MHZnetwork and GPS satellites, this product can locate and monitor any remote targets by SMS or Computer or PDA.
3. Advantages of products:
1). Multiple tracking ways; Provide monitor software with the global map freely,
Real-time track by your computer or PDA cell phone or googleEarth.
2).
Standby 80hours.3). Small cubage;
Dimension: 46*64*17mm (1.8*2.5*0.65inch)
Weight: 40g
Integration design(antenna and battery inside); Easy to hide and take along with you
4). Support orientation without orientated server: It can find out Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually, you can find out the real-time information of position.
5). Can support platform:
When using platform, it can track targets in real time on electronic map, or inquire the target's position by mobile phone.
6). If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
7). Tracking function by timing and frequency
8). Authorized number added and deleted function
9). Support hidden alarm and monitor function
10). Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
11). Movement alert: You can set up barriers when the tracker is stopped. Once moved, it can give an alarm to the authorized number.
12). Over speed alarm: You can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
13). Low battery alarm function
4. Applications(Service scope)1). Vehicle rental/Fleet management etc
2). Powerful magnet water proof, adsorbing in the hidden place of car.
3). Protect child /the old/the disabled/pet etc
4). Provide peace-of-mind for businessmen
5). Personnel Management
6). Criminals Tracking
5. Notes# Compact, easy to carry, and comes with a magnetic battery cover to attach to any steel object
# Can send GPS information by SMS on demand or periodically within a time frame
# The unit has a built-in mic and can be used as a "silent listener" without letting the carrier know that his/her conversation or activities are been listened.
# Comes with detailed instructions on how to work with GPRS enabled SIM and setup internet monitoring(fixed IP only), so constant tracking information can be displayed on a detailed map
Package IncludeModel:GPS102-BGPS unitMagneticbattery coverbatteries(two)battery dock AC adapter | USB cablewater proof baguser manual | Package Optional accessories:Hardwired car chargerCigarette lighter car chargerMicrosd memory card
6. Factory informationShenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
Welcome to your OEM and ODM. We will offer you a good price according to your order quantity.
| Brand | Specification |
| Dimension | 46(L)x64(W)x17(H) mm |
| Weight | 50g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM sensitivity | Less than -102dBm |
| GPS chipset | SIRF3 chip set |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | | Cold status 45s | | Warm status 35s | | Hot status 1s |
|
| Humidity | 5%--95% non-condensing |
| Temperature | | Operating Temperature | -20& deg; C to +55& deg; C | | Storage Temperature | -40& deg; C to +85& deg; C |
|
| Car charger | 12-24V input, 5V ouput |
| Wall charger | 110-220V input, 5V output |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Battery Life | About 80 hours |

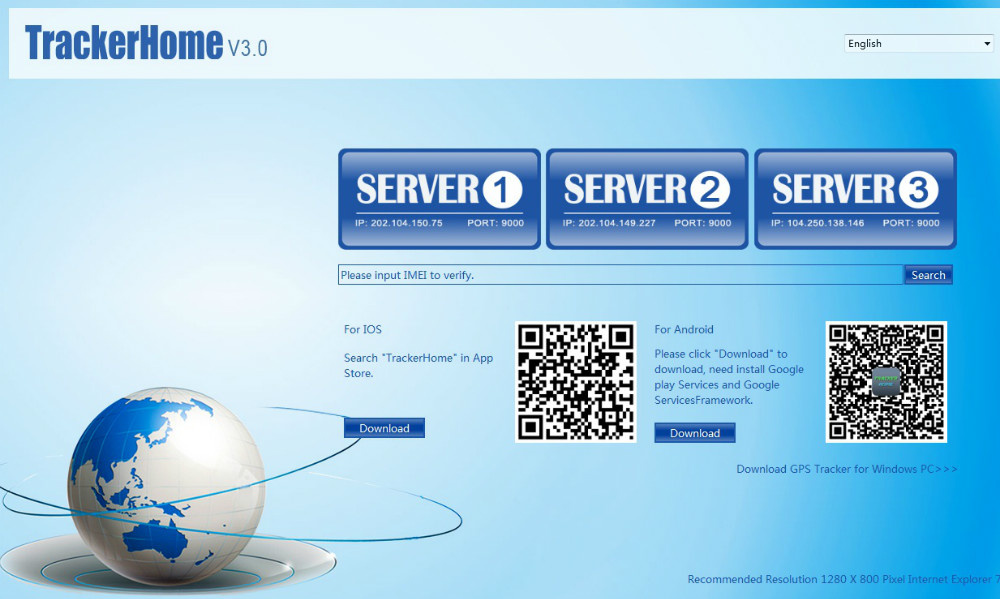

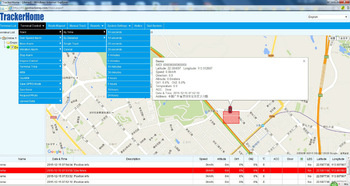

the following Four tracking solutions:SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen. Get absolute address by SMSAndroid IOS app tracking Web server online tracking. Capable of monitor 10,000 objects
