Real Time Tracking GPS Vehicle Tracker with Fuel Sensor
Price: |
US $ 54-60/Set |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
T/T,Western Union,Paypal |
Prod Model: |
VT310N |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
GPS Chip: |
Latest GPS Sirf-Star III Chipset |
Dimension: |
110*80*30mm |
Input Voltage: |
DC 9V~36V/1.5A |
GSM Frequency: |
GSM 850/900/1800/1900MHz |
GPS Sensitivity: |
-159db |
Color: |
Silver, Black, Blue |
Product Description
2018 Real Time Tracking GPS Vehicle Tracker VT310NAbout TopshineTopshine Electronic Technology Co.,Ltd is specialize in R&D innovation manufacturing superior GPS products in terms of GPS Personal Tracker, GPS Vehicle Tracker, GPS Tracking System and Integrated GPS Tracking Solutions. We are real GPS tracker manufacturer who haveworked at gps tracker and car electron since 2005 year, we have our own engineer team,they are good at customize for our clients.Product DescriptionProduct Description
VT310N is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, VT310N has good sensitivity and stable performance. Especially, VT310N is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet. Application 1. Vehicle Real T ime Tracking 2. Car Security/Anti-Hijack 3. Fleet Management Functions1. Industrial design to work in hard conditions for car/truck, working voltage:10VDC -36VDC2. Real time Tracking via SMS or GPRS (TCP/UDP)3. Current location report4. Auto Tracking by time interval or by distance5. Data logger function with 4MB memory6. Built-in motion sensor for power saving7. SOS panic button8. Geo-fencing control / Over-Speed alert / Movement alert9. Remote fuel monitoring / analysis10. Industrial design with voltage/current overload self-protection.11. Engine cut-off to stop the vehicle12. voice monitoring (optional)13. I/O: 5 digital inputs, 2 analog inputs, and 5 outputs.14. Locate by SMS with Google map's link15. Odometer function (Mileage report)16. With 950mAh inbuilt rechargeable battery Specifications Items | Specifications |
Dimension | 117*85*26mm |
Weight | 185g |
Input voltage | DC 9V~36V/1.5A |
Back-up Battery | 950mAh/3.7V |
Power Consumption | 65mA standby current |
Operating Temperature | -20°C~75°C |
Humidity | 5%~95% |
Battery Work Time | 43 hours in power-saving mode and 10 hours in normal mode |
LED | 2 LED lights to show GPS, GSM status |
Button | 1 SOS and 1 power on/off |
Microphone | Optional |
Memory | 4M Byte |
Sensor | Motion sensor |
GSM Frequency | GSM 850/900/1800/1900MHz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -159dB |
Positioning Accuracy | 10meters, 2D RMS |
I/O | 5 Input 5 Output 2 Analog Input |

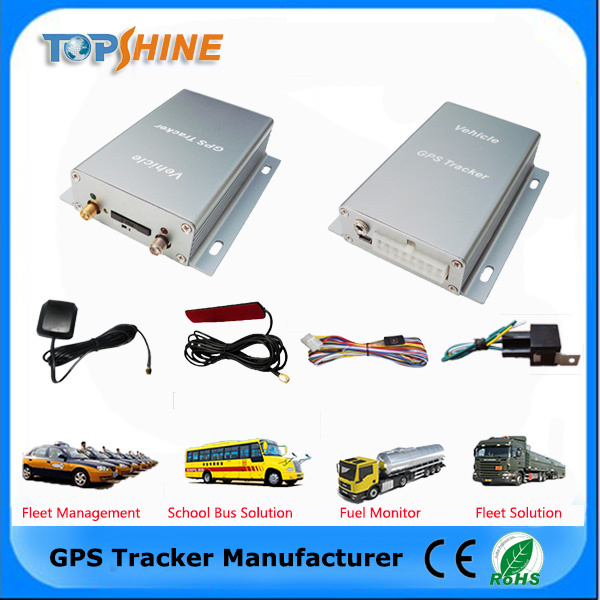

Accessories And Package Gsm antennaGPS antenna WireRelay Optional Accessories Choose different accessories to achieve different functions.Microphone, Siren, Temperature sensor, Fuel sensor , Active RFID kits Shipment TermsWe usaually use DHL, FeDex, EMS express for small orders. You can also assign your special couriers. Unix box: color box or neutral white box / yellow box.Shipment: 3 to 5 days after payment. Our ServiceOur price comes with high quality products, free tracking software in our server, lifetime technical support, lifetime customized support, OEM logo brand services, etc. Not just the devices.Lifetime free tracking software
Certification Our factoryOur factory has experienced continuous expansion since it opened in 2009. The factory is now over 1,000 square meters in size and is filled with professional equipment, such as SMT and machines alike, to better sever our customer base. Why choose us1.100% made of industrial grade components special GSM and GPS module, reject cheaper and unstable MTK solution hardware or second-hand component solution.2.Provide two free tracking platform, one is for PC ,other is for mobliephone. they won't ask for any charge forever. you can try to login with these two link via PC and mobile phone:PC : www.global-track.netMobile : www.global-track.net/login.jspuser name: demoPassword: 13. 100% origin,factory price, best technic and after-sale support,2 years warranty, free to help you to build your own tracking server.4. We are good at customization job, if you have any good idea in gps tracker, we willtry to achieve for you. FAQQ: Why the tracker can't be switched on?A: 1. Check if wiring is correct or not. 2. Charge the tracker.Q: No response to SMS commandA: 1. Wrong password. Please check your password. 2. No GSM mobile signal or weak GSM network. Try later. 3. Out of SIM credit. Please pop up. 4. SIM is damaged. Change a sim card. 5. SIM card is without sending function. Change a SIM or enable SMS sending function. 6. SIM card isn't installed properly.Q: Why there is a "Last" appearing in a positon report SMS?A: There is no GPS signal. Please take the tracker to somewhere open area.Q: How to use tracking platform?A: 1. Set GPRS parameter in Parameter.exe. 2. Set GPRS parameter by SMS. (1) Set tracker ID: W,010,ID (2) Set APN: W,011,APN name (3) Set IP and Port: W,012,210.209.68,9600 (4) Enable GPRS: W,013,1 (5) Set report time interval: W,0.14,00000 (6) Open link www.global-track and create vehicle info in Manage - Vehicle ManageQ: How to connect Relay to cut off engine?A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line. Contact UsIf you have any questions,Welcome to contact me:Contact: WinchellS.kype: topshine.sales3
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
TOPSHINE provides a proprietary system to help clients manage their fleet and asset.

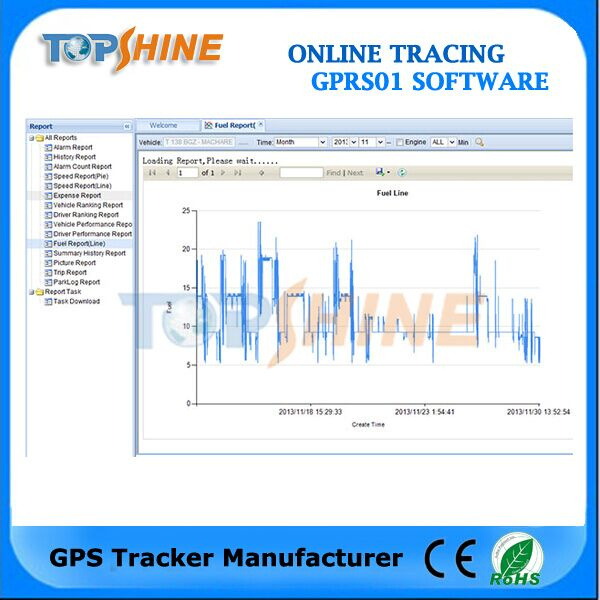

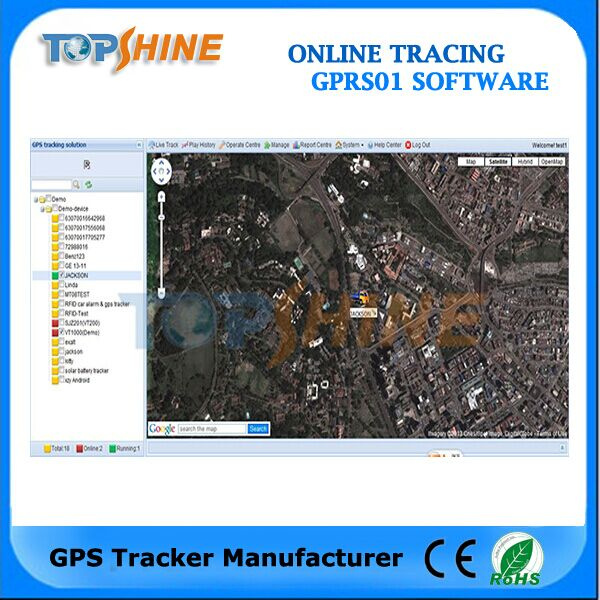

Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of
Vehicles to transport their goods or clients with valuable moveable assets, to monitor
Their assets thus minimizing the risks associated with their investments, increasing
Efficiency and productivity, and minimizing logistics and manpower costs. Real-time
Information can help with effective decision making, thus improving your company's
Performance and reducing overall costs.
We currently serve over 100 major customers and our clients come from various
Industries with unique demands or operational requirements. We can customise our
System to cater to our client's needs. In our ever-growing network of connected
Devices, our fleet can be monitored from anywhere with our mobile applications. Our
Services cover Hong Kong, China and cross border fleets.
Professional Consulting Services
With years of service experience, we have built up a good reputation and a strong
Professional team to provide strategic solutions and technical advice in fleet
Management. We work closely with all our clients to define their problems and
Expectations and tailor the best solution to solve their fleet management problems.
Our role is more than a technology provider who is assisting you to drive your
Business to be more profitable and competitive.
Customer Integration Services
Our team will support you as you work to integrate the GPRS01 system into your
Operations. We provide complete servicing from the installation to the maintenance of
Each tracking unit. A member of our customer support team will help coordinate the
Times and location for unit installation and demo/training times at your convenience,
While you, our client, can concentrate on managing your business.
On-Site Training Services
Once we have installed our units in your fleets, a training session will be arranged to
Familiarize all necessary parties with the software. We also provide a customer service
Help desk to assist you should you have any further questions. Our strong customer
Service team will ensure you understand the system and can put it to good use.
Customer Care Services
Customer satisfaction is a critical element for us. We care about our clients' needs,
Ideas and opinions. We make sure our products and services satisfy or exceed our
Client's expectations.
