| Prod Model: |
Vehicle Rastreador De GPS GPS103B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Vehicle GSM GPRS GPS Tracking Device GPS103 |
| Weight: |
120g |
| Functions: |
Engine Shut, Acc/ Door/ Shock Alert,Speed /Move |
| Tracking Way: |
SMS, Our Web Platform, Android Ios APP |
| Warranty Time: |
12 Months Warranty Coban GPS Tracker |
| GPRS Protocol Communication: |
TCP UDP |
| Alarms Under Arm State: |
Acc, Door, Shock Sensor Alarm |
| OEM&ODM Service: |
Customize Logo and Brand.Firmware Modification |
| GPRS Web Tracking Platform: |
with Google Map |
| Fuel Sensor Length: |
Customized, up to Fuel Tank Height |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Screen Size: |
No Screen |
| Chip: |
No Screen |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description
Real Time tracking Vehicle GSM GPRS Rastreador De GPS (GPS103B)1. fuel level monitor
2.Real time tracking by SMS and Web platform,
3.door alarm, ACC alarm, shock sensor alarm
4.car gps tracking system
5.one year warranty, coban manufacture price
Model: GPS103A/B
Product Description This tracker is based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
Main Function Description1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3.
Remote Engine-stop and Resume.4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Specifications:
Content | specifications |
| DIM. | 54*62*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | Simcom300d or Simcom340d |
| GPS Chip | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Voltage of car power system | 12 V -24V |
| |
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Functions | Tracking;Monitor;Geo-fence;Movement alert;Overspeed alert;SOS Button;Low battery alert; Hidden number tracking; Power off alarm; Send sms cut off/resume the oil and power system, arm, door alarm, sensor alarm,ACC alarm; Supoort 4G SD card; Support TCP and UDP protocol |
| Warranty | 12 months Warranty |
GPS Tracker 103 accessories and packing | Packaging Details: | Model:GPS103-A standard accessory
GPS Unit
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual
package
Optional accessories
Shock sensor
alarm siren
Microsd memory card
Box size: 13cm*19cm* 5.7cm
Gross weight 0.55kg
Carton size 54cm*40cm*31cm
Quatities(pcs) 40pcs/ctn
NW 22kg/ctn
GW 23.5kg/ctn |
|---|
| Delivery Detail: | Shipped in 2 days after payment |
|---|

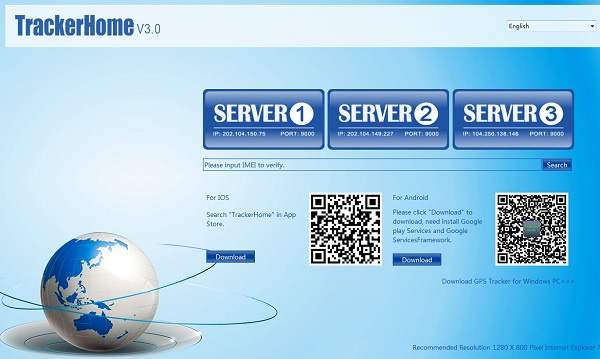

the following Four tracking solutions:SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen. Get absolute address by SMSAndroid IOS app tracking Web server online tracking. Capable of monitor 10,000 objects
www.gpstrackerxy.cm (User ID:DEMO,PASSWORD :8888)

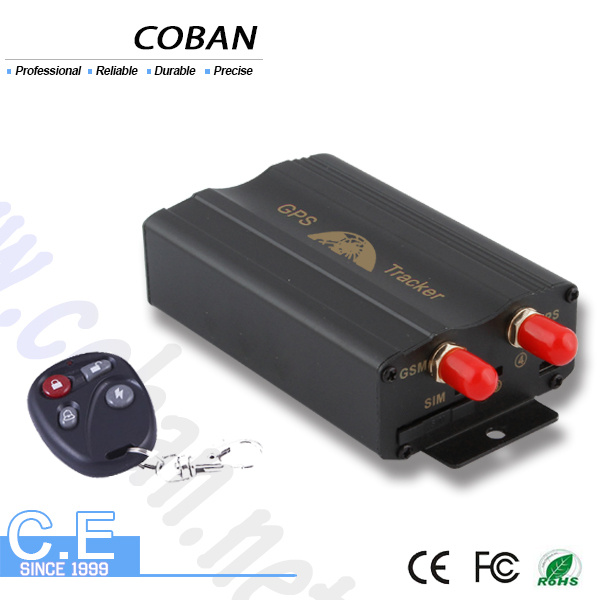

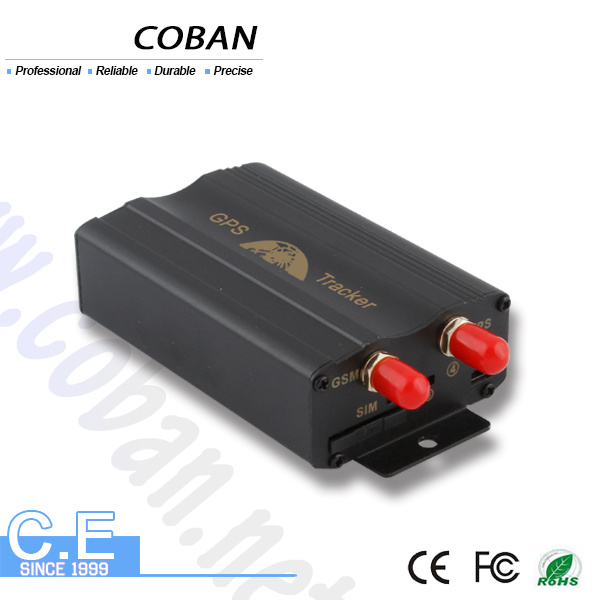

coban gps car tracker TK103 photos
Tracking Solutions
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen. -Get absolute address by SMS-Android IOS app tracking -Web server online tracking. Capable of monitor 10,000 objects

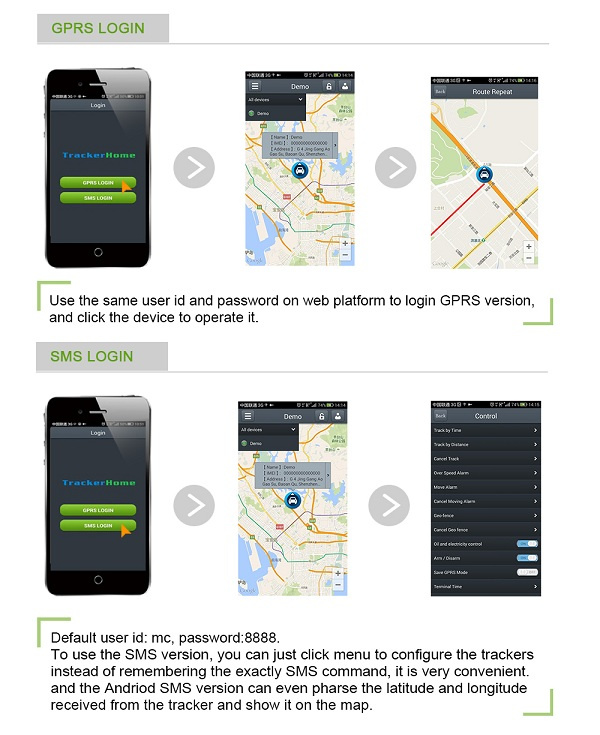

Android IOS app tracking
FAQ - Frequently Asked QuestionsHow do I make sense of the longitude and latitude data this unit provides?Both Google Maps and Google Earth can easily translate the data into usable visual information.The unit does not pick up a GSM signal and the SMS functions aren't working,What's wrong? A number of things could cause this to happen:1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work2) Make sure there is money left on the SIM card and that it has not expired3) Make sure there is no PIN code associated with the SIM card4) Make sure roaming is enabled on your SIM account if you are in a different countryCan I install the software on multiple computers?No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.Ordering from Shenzhen Coban Electronics Co, . Ltd provides you with the following benefits:- Orders processed and shipped within 24-hours- 12 month warranty- In-house QC- Member discounts- Award winning customer support- Quantity order discounts- Worldwide Shipping Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
More details including E-user manual ,photos will be sent after receive your inquiry
