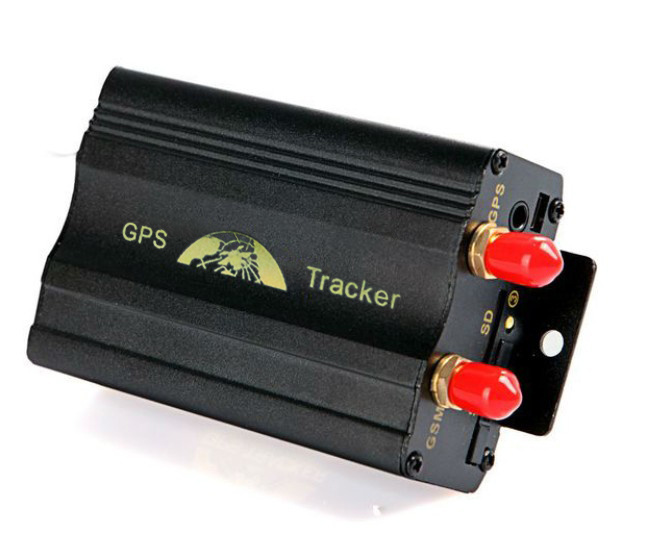

Real-Time Vehicle Car GSM GPRS SMS GPS Tracker 103b +Remote Control+Motion Sensor +Alarm Siren

Product Description

Real-Time Vehicle Car GSM GPRS SMS GPS Tracker 103A +Remote Control+Motion Sensor +Alarm Siren

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.

Features

Support both GPS & LBS (Location based service).

Support SMS/GPRS/Internet Network data transmission

Support GPRS on-line and GPRS re-connected automatically if GPRS drops

Support SMS / GPRS dual-mode switching

Support configuration by remote terminal.

Support for point-to-point, point to group, group-to-group monitoring.

Set multiple functions of anti-theft, positioning, monitoring surveillance, emergency alarms and management in its entirety.

 Application
Used widely for vehicle and other moving objects tracking.

Terminal Installation

Please ask the qualified engineers to install.

Do not install it in an environment which is over GSM performance and please pay attention to fix the antennas in a position with good signals.

Pay attention to make installation location preventing water and dust.

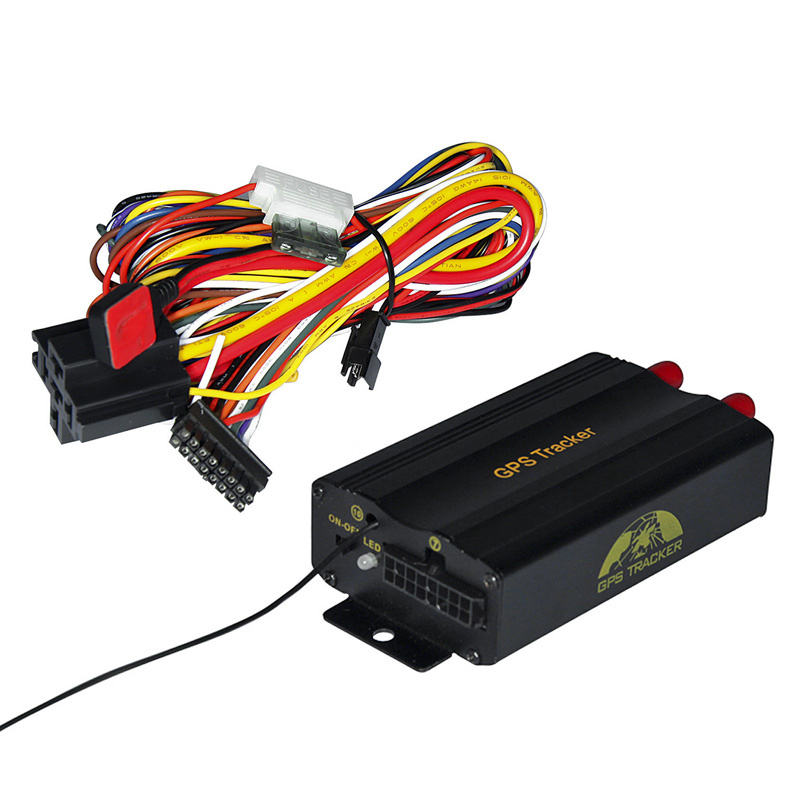

Find the 16 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original car circuit showing below:

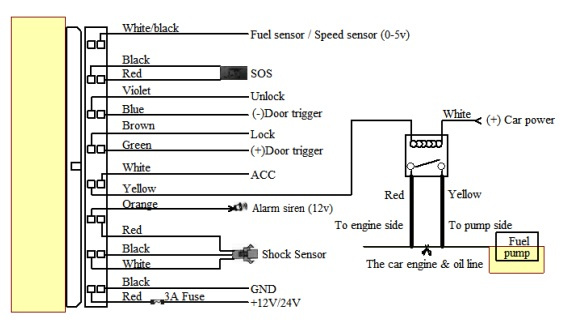

Wiring diagram of main unit

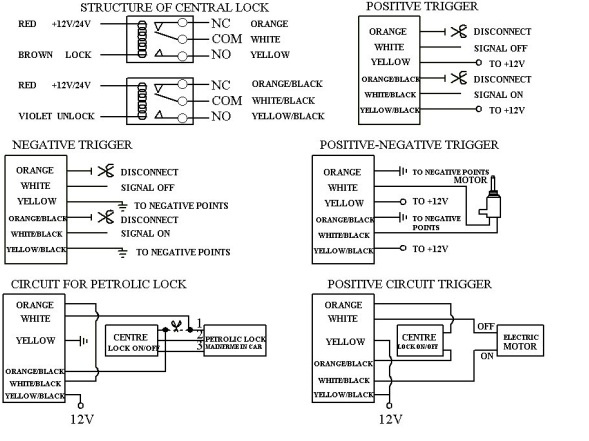

Wiring diagram of central locking system's relay:

Note: The orange wire can be connected to the car original horn; or connected to the siren you buy with the tracker. (Siren is Option)

Knowing about the type of the door trigger is positive or negative trigger. Please connect the green wire to the door control circuit if it is positive, and connect blue wire if it is negative.

Please install the SOS button on the place driver can touch.

When wiring central lock system to control the door lock, the default settings of the device is for electric lock, if the vehicle is air compressor lock, please refers to the switch command described later.

Connect the GPS and GSM antenna to the right connector, and find an appropriate place to fix the antennas for good reception.

Sim Card Installations

Use a tweezers or a sharp thing to touch the SIM CARD popup switch, the SIM CARD slot will pop up, take out the SIM card slot and put SIM card in it. And then put the SIM card slot back to its original position after confirm the SIM card in the right place.

The second SIM card need to open the case to install it.

Please make sure the SIM card is for GSM network and able to execute the function of   incoming calls display, no calls can be diverted and the PIN code is locked. The SMS format must be TXT format, and can't recognize the PDU format

Dual Sim Card

Device supports dual SIM card, but only one of them work with tracker, and switch to the other one automatically when it is broken, no GSM reception or no GPRS.

Basic Functions:

Single Locating

Auto track continuously

Track with limited times upon time interval

Track with unlimited times upon time interval

Smart track upon time and distance interval

Automatic update positions of vehicle turns

GPS drift suppression

Exact street address

Location based service (LBS) / Cell-ID Locating

Monitor

Data logging

Data Load

Forward the third parties' message

SIM card Balance Inquiry

ACC working alarm

Cut off the Oil and Power System

Calibration of fuel sensor

Function of Remote Controller (Option, for model B ONLY)

Electric / Air compressor lock switch

ARM / LOCK

DISARM / UNLOCK

Silent Mode

Decide how many times of alarm message

Alarms

Low battery alarm

Power off alarm

GPS blind Spot alert

SOS

Geo-fence

Multi-area management

Movement alarm

Over speed alarm

Fuel alarm

Alarms under Arm State

Door open alarm

ACC Alarm

External Shock Sensor alarm(Optional)

Built in Acceleration sensor Alarm

Built in Shock sensor sensitivity configuration

Alarm without GSM network service

Sleep Mode

Check the Vehicle State

Check IMEI

Set up Terminal (local) Time

Reset Hardware

Configure parameters by USB

Set up GPRS

Less GPRS traffic

Set up monitor center number

Instructions for web platform and mobile APP

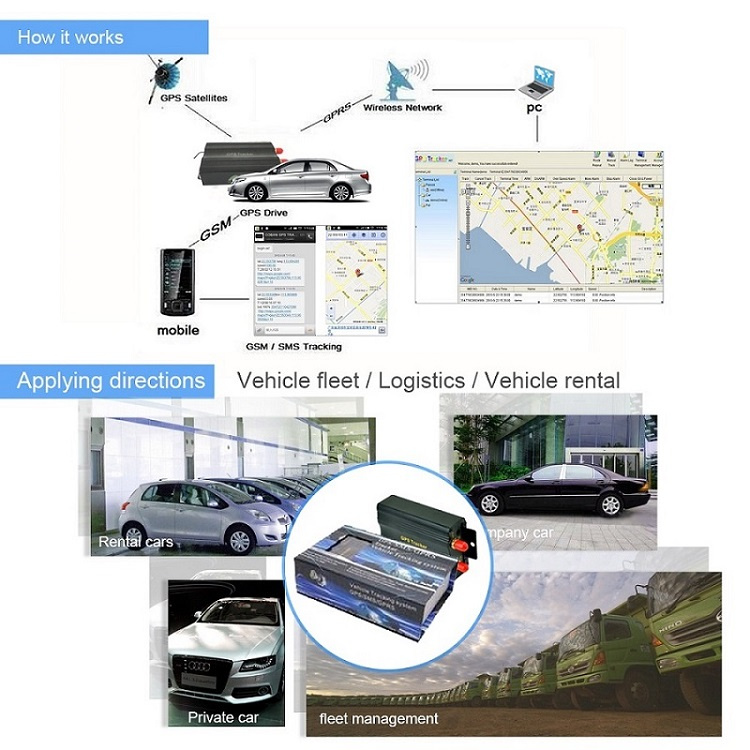

Technology parameters:

Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >:  IOS and Android APP
