| Prod Model: |
car tracker GPS103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120g |
| Remote Controller, Shock Sensor: |
Yes |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Color: |
Black |
| Certificate: |
CE FCC |
| Shipment: |
by Express or by Air |
| Delivery Time: |
1-3 Business Days |
| Work Mode: |
SMS / GPRS |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Car Security: |
Cut Car Engine Remotely, Arm/Disarm Remotely |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Model: |
Integration Type |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Brand: |
Baanool |
| Certification: |
ISO9001 |
Product Description

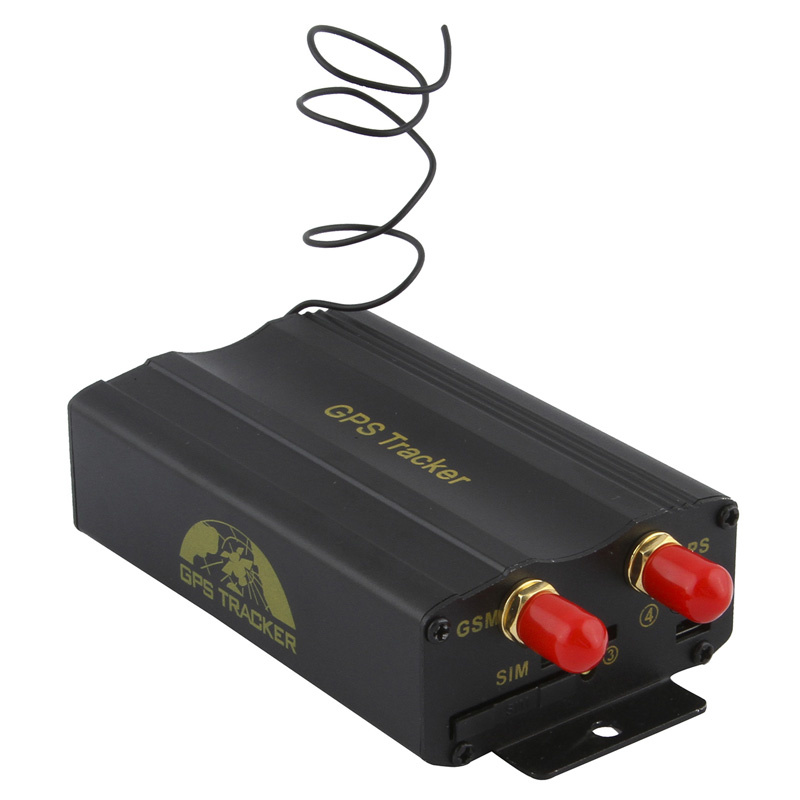

Realtime GPS Car Tracking System with Relay to Stop Car (GPS103 Tracker)
1. Summarize:
Working based on existing GSM/GPRS network and GPS satellites, this product can locate can monitor any remote targets by SMS or internet service platform.
2. Special for car (12V-24V)
1. Support both GPS / GSM station positioning ways
2. Support Siren and Shake sensor connecting
3. Support SMS/GPRS/Internet Network data transfer (GPRS/Internet instructions)
4. Support GPRS on-line and the line re-connected automatically
5. Support work based on existing GSM/GPRS network
6. Support remote terminal
7. Standby current is only 80mA
8. Support for point-to-point, point to group, group-to-group monitoring
9. Set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
3. Features:
1. Support non-Server based location
2. Location memorization
3. Auto location report
4. Authorize/delete the tracking phone number
5. Covert alert& voice surveillance
6. Geo-fence: Alert in case of branching the predefined district
7. Movement alert: Alert in case of movement
8. Speed alert: Alter in case of excess of the predefined speed
9. Power alert
4. Basic functions:
1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or SMS comamnd
4, Show location directly on mobile phone with HTTP Google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS
15, Door, windows alarm get by SMS
16, Movement alert sensor
17, Optional Android IOS app tracking
18. with direction and heading value
19. Optional shock/impact sensor
20. Abosolute street function
5. Applications(Service scope)
1). Vehicle rental/Fleet management etc
2). Provide peace-of-mind for businessmen
3). Personnel Management
4). Criminals Tracking
6. Technology parameter:
*GPS chip: SIRF3chip
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix Cold status 45s, Warm status 35s, Hot status 1s
| Brand | Specification |
| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | | Cold status 45s | | Warm status 35s | | Hot status 1s |
|
| Humidity | 5%--95% non-condensing |
| Temperature | | Operating Temperature | -20& deg; C to +65& deg; C | | Storage Temperature | -40& deg; C to +85& deg; C |
|
| Voltage of Car power system | 12-24V |
|
|
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
| |
