| Prod Model: |
RSEL-204 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Case: |
Aluminium Alloy |
| Battery Capacity: |
10ah |
| Optional Capacity: |
13ah |
| Customer's Logo: |
Acceptable |
| Battery Type: |
Rear Rack |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
36V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Flat Battery |
| Rechargeable: |
Chargeable |
Product Description

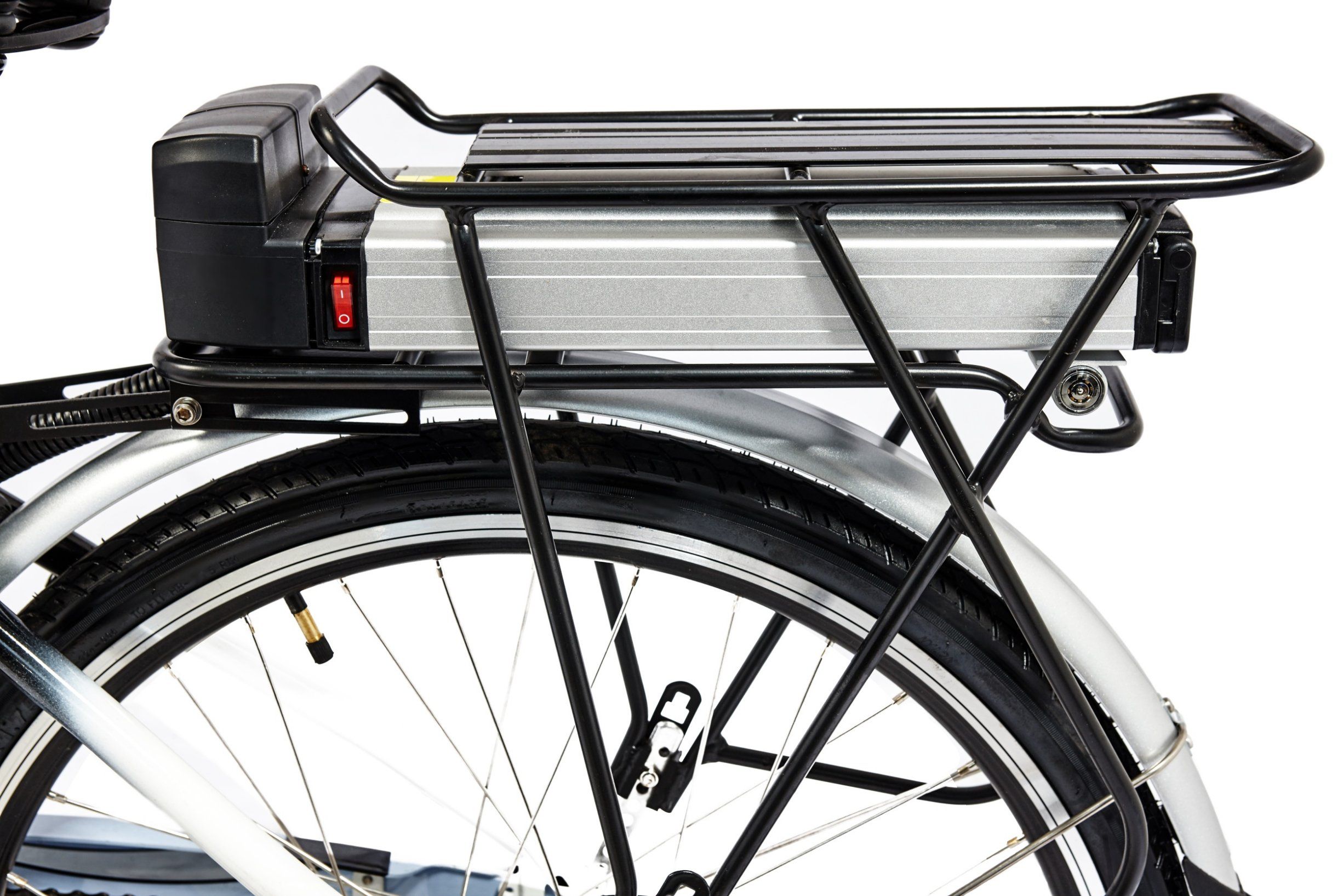

Rear Rack Lithium-ion Battery For E Bike
Spec of rear back battery
| rear rack Battery for electric bikes |
| Basic Spec |
| Nominal Voltage | 25.9V |
| Nominal Capacity | 9.5Ah |
| Internal Resistance | ≤75mΩ |
| Discharge Voltage Limit | 2.7V(any cell) |
| Protected Charge Voltage | 4.25V(any cell) |
| Charge Voltage Limit | 29.4V |
| Max Charge Current | 2A |
| Max. Discharge Current | 20A |
| Nominal Discharge Current | 10A |
| Charge Method | CC/CV(special charger) |
| Weight | <4000g |
| Operating Temp. | Charge | 0-45 |
| Discharge | -20-45 |
| Storage Temp.(60-80%SOC Storage, need to be re-charged every 2 months) | -10-35 |
| Capacity@1C rate | ≥9.5Ah |
| Cycle Life | 500times(Cycle@RT,1C rate,100%DOD) |
| Safety test for the cell |
| The battery has successfully passed the UL US standards testing. |
| Standard: UL1642 FILE NO: MH29933 |
Our advantage:
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own 3 factories located in Changzhou, China
3. Strong professional technical team ensure to produce the top quality E-bike.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on manufacture field with 8 years' export business of electric vehicles.
Where We Are:
We Warmly wel come you to visit us in Changhzou City, Jiangsu Province. You can take a train and cost 1 Hour to our City from Shanghai or Nanjing (We are in middle of the two cities). You can also fly to our city from Beijing, Guangzou, Hongkong... We will pick you up at train station and airport.
Packaging & Shipping
Packaging material:PE bag+foam+carton,to keep products anti-shock.
Shipping by sea,we can cooperate with your freight forwarder,or we can arrange shipping by our freight forwarder.We can inquire the shipping cost for you when your destination port is decided.
Our Services
Warranty: motor 12 months,battery 18 months.
We can offer you some free spare parts of 1% value of order value,for example,if your order value is $50,000 , we can offer you spare parts of $500 value for free,you can choose any spare parts from our list,but generally we advise clients to choose more electric spare parts,because compared to other parts,they have more chances to break down.
We will update and recommend newest products to you to keep you competitive in your market all the time.
FAQ
1.What's the advantage of electric bike?
You can not only ride it as ordinary bike but also choose battery powered mode when you get tired,and you don't need to get a license and pay parking fee.
2.What colors are available?
We have many color options,such as black,red,white,yellow,blue,silver,orange and so on,so we can make the colors based on your request.
3.Can you do our logo or brand on the bikes?
No problem, if you order 1*20' container,we can do it for free,if you order less than that,we charge $100 for it at first,and you don't need to pay for it anymore in future order,when your orders reach 1*20' container,we can refund this $100 to you.
4.Can I order some samples at first to see the quality?
No problem,if your order is less than 30 pcs,we need to charge some extra sample fee(usually 100USD),the amount is based on your specific quantity, when your orders reach 1*20' container,we can refund you the sample fee.
5.Can you deliver samples by DHL or Fedex?
Yes we can do. But the freight by DHL or Fedex is very expensive because our products contain battery, it usually costs more than the electric bike value,so we suggest you choose sea shipping.
6.Can you change configuration for me?
No problem,we can change configuration based on your request.
7.What's your payment term?
Payment term is 30% TT in advance,balance against copy of BL.
