| Prod Model: |
DLR-1111 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Medicine |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Brand: |
HOY |
Product Description
Features1. High speed signal transmission
( 16Mbps, NRZ signal )
2. Input TTL compatible
3. +3~+5V power source
DescriptionsThe light transmitting unit is a standard-package product with connector and
opto-electric component packaged with LED and drive IC. The function of unit changes
the electric signal into light signal and be transmitted by plastic fiber.
The unit is operated at single+3V~ +5V and the input signal is TTL compatible. The
DLT1150A has a maximum operating speed of 16 Mbps. The light signal is coupled into
plastic fiber by connector. The unit has high performance at low dissipation current, steady
light output and efficient light coupling.
Applications1. Audio equipment
2. DVD player
3. PC, Notebook
4. Sound card
Specifications:Absolute Maximum Ratings( Ta = 25ºC)
| Parameter | Symbol | Rating | Unit |
| Supply Voltage | Vcc | -0.5 to 7 | V |
| DC Input Voltage | Vin | -0.5 to Vcc+0.5 | V |
| Power Dissipation | P | 120 | mW |
| Storage Temperature | Tstg | -30 to 80 | ºC |
| Storage Temperature | Topr | -20 to 70 | ºC |
| Soldering Temperature | Tsol | 260* | ºC |
Soldering time ≤ 5s/2times.
Don't touch flux soldering and white Gas

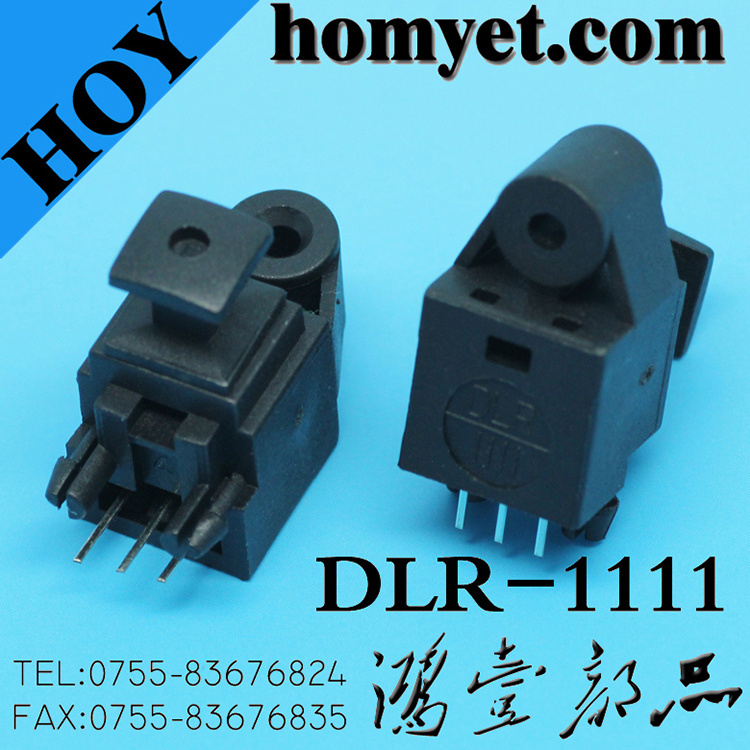

Product Picture & Drawing:
Packaging & Shipping1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery
Why Choose Us?1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.

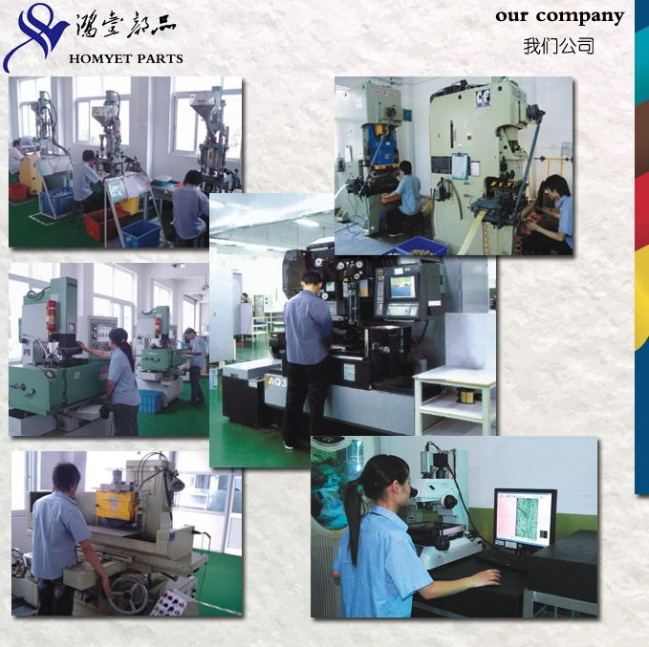

Company Profile:Shenzhen Homyet Parts Electronics Co., Ltd is committed to electronic components parts & some digital products which we do design & production and sales by ourselves . Our company keep with " Faithfulness & Mutual Benefit " as our Philosophy, and "Quality Is The Life, And Integrity Is The Development" as our Mission Statement! Our target is "Create A Word-Class Brand " ,so we stick to innovation and strict quality control. In order to adaptation the requirements of market, we develop a series of new product successful and push in market.
