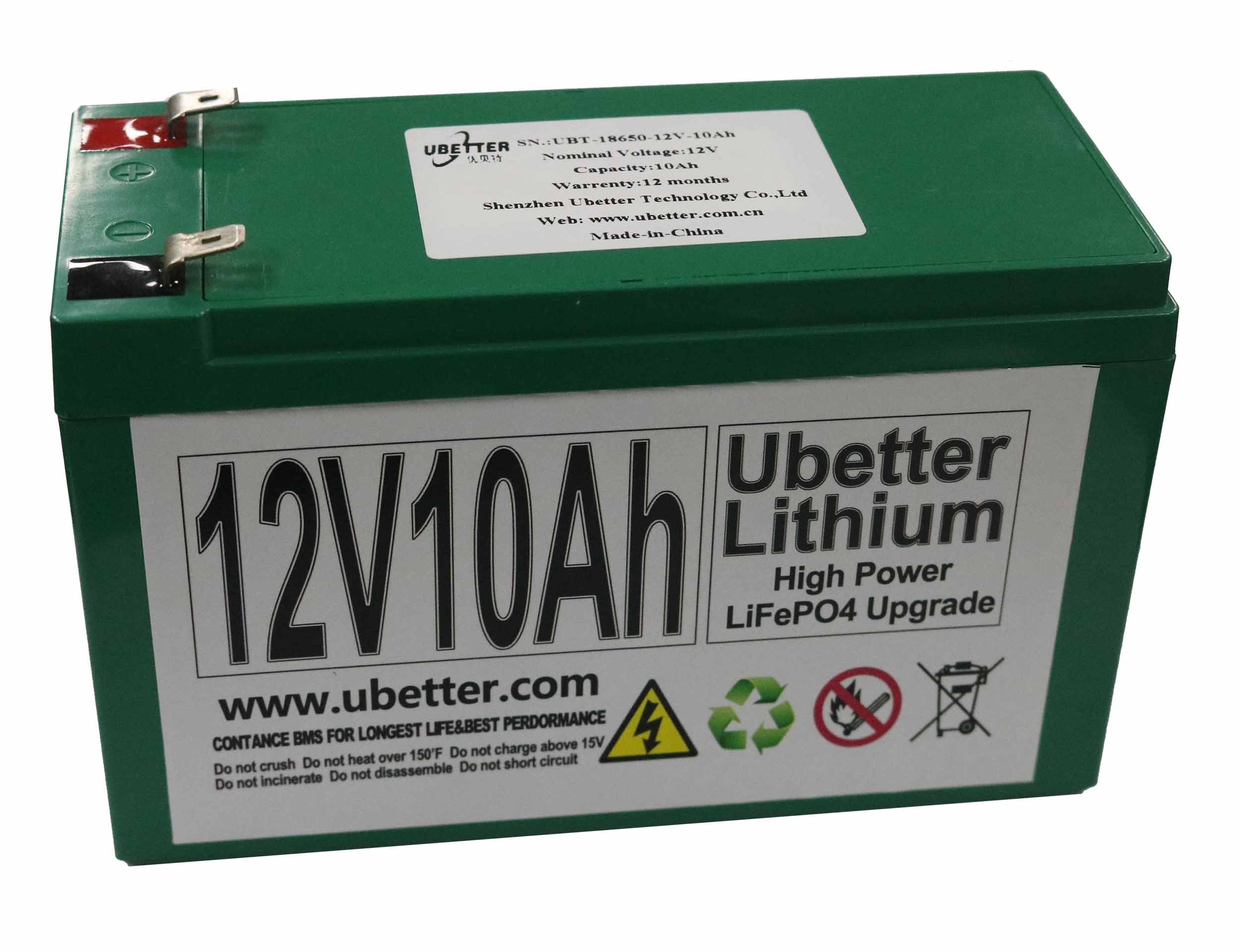

Rechargeable 12V10ah LiFePO4 Start Battery with High Discharge Current

Name: Rechargeable 12V10ah LiFePO4 Start Battery with High Discharge Current
Brand: all-electronics-online.com
SKU: 803026245
Availability: InStock
Rating: 5 (32 reviews)

Price:	US $ 30-38/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UBT-22650-12V-10Ah
Lead Time:	10 Days
Connection Mode:	Series and Parallel
Type:	LiFePO4 Battery
Rated Capacity:	10ah
Standard Voltage:	12V
Usage:	Emergency Battery
Electrolyte:	LiFePO4

Product Description

LiFePO4 Battery Pack 12V 20Ah

Battery Pack Characteristics
Model		-12V-20Ah
Capacity(0.2C5A)		20Ah
Nominal Voltage		12.8V
Max. Charge Voltage		14.6V
Discharge Cut-off Voltage		10V (recommended)
Working Voltage Scope		10V~14.6V
Max. Charge Current		10A
Continuous Discharge current		20A
Max.Discharge current		60A 3Sec
PCM control Discharge current		20A (continuous)
Weight (Approx.)		2.8Kgs
Battery Dimensions		168x80x180mm(HXWXL)
Impedance (Max, at 1000Hz)		Single Cell≤25 mΩ
Cycle Life(80DOD%)		>2000 Times
Self-discharge Rate		≤3%(month)
Charge Method (CC/CV)	Standard	50A×4hrs
	Quick	10A×2hrs
Operating Temperature	Charge	0ºC~45ºC;32oF~113oF
	Discharge	-20ºC~60ºC;-4oF~149oF

Applications:
-Solar system and Wind system
-Emergency lighting equipmen
-Fire alarm and security systems
-Telecommunication equipment
-Electric equipment and telemeter equipment
-Light equipment
-Wireless lawn movers vacuum cleaner and washing machine
-Toys and consumer electronics
-Portable power tools measuring and medical equipment Portable video
cameraportable personal computer
-Garden lighting.
ersonal computer

Benefits:
1. Battery safe and stable, high-cycle life, consistent with low-carbon, environmentally friendly
2. Built-in PCM battery protection system has multiple protection features. The system (PCM / BMS) used the most advanced Japan and the United States chips.
3. Batteries material LiCoO2 (lithium cobalt oxide), LiMn2O4 (lithium manganese oxide), Li-Ni-Co-Mn-O (ternary material), LiFePO4 (lithium iron) are available.
4. All batteries are imported from Sanyo, Sony, Panasonic, Samsung, LG original batteries and domestic famous batteries as a combined unit, ensuring the battery pack consistency, stability, security.
5. The battery can be combined with string and parallel. It's modular is used intelligent design.
6. We can provide customers with OEM / ODM services.

Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

Storage:
1.If the battery need to be stored for a long time, charge the battery for 40%-70% electric quantity.
2.Battery and the charger should be stored in clean, dry and ventilating place, and should not be together with corrosive material, keep the battery away from fire and heat source.
