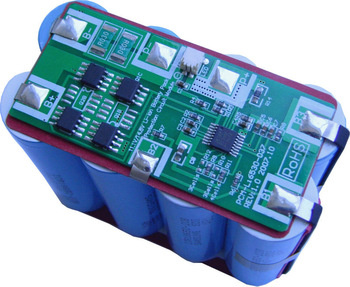

Rechargeable 14.4V Li-ion Battery Pack 4400mAh for Power Tools

Name: Rechargeable 14.4V Li-ion Battery Pack 4400mAh for Power Tools
Brand: all-electronics-online.com
SKU: 786501975
Availability: InStock
Rating: 4.3 (49 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LP0144-4400-L
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel

Product Description

Rechargeable 14.4v Li-ion Battery Pack 4400mAh for power tools/ led lights/medical device/toys and so on.

Specification:

18650/4S2P Li-ion Battery Pack 14.8V/4.4AH
Model:LY-L04S001
Item	Specification		Remark
Nominal capacity	4400mAh		0.5C discharge Cell: 18650
Nominal voltage	14.8V		3.7V / 1Cell
Charging voltage	16.8V±0.05V		4.2V / 1Cell
Charging method	CC/CV		(Constant-current and -Voltage with Limited current
Standard charging time	1000mA/3hour,2000mA/1.5hour		Battery capacity÷charging current×1.5
charging current	2200mA(0.5C)		0 ~ +40°C
Maximum charging current	4400mA(1C)		0 ~ +40°C
Continuous discharge current	4400mA(1C)		-20 ~ +60°C
Discharge cutoff voltage	9.6V		2.4V / 1Cell
Short circuit protection	Exterior short circuit		Automatic recovery
Internal resistance	≤200mΩ		AC Impedance 1kHz
Cycle life	≥1000
Operating temperature	Standard Charge	0 ~ +40°C
	Standard Discharge	-20 ~ +60°C
Outline dimension			Length x wide x height
Pre-wired			Red = Positive,Black = Negative
Protection Circuit Module:PCM-LI6530-037
Maximal continuous charging current	4A
Maximal continuous Discharging current	4A
Over-charge detection voltage	4.35V±0.025V		single cell
Over-charge release voltage	4.15V±0.05V		single cell
Over-charge detection delay time	0.5S-1.5S		single cell
Over-discharge detection voltage	2.40V±0.08V		single cell
Over-discharge release Voltage	3.0±0.10V		single cell
Over-discharge detection delay time	50-150mS		single cell
Over-current detection	10±2A		can adjust
Over-current delay time	5-15mS
