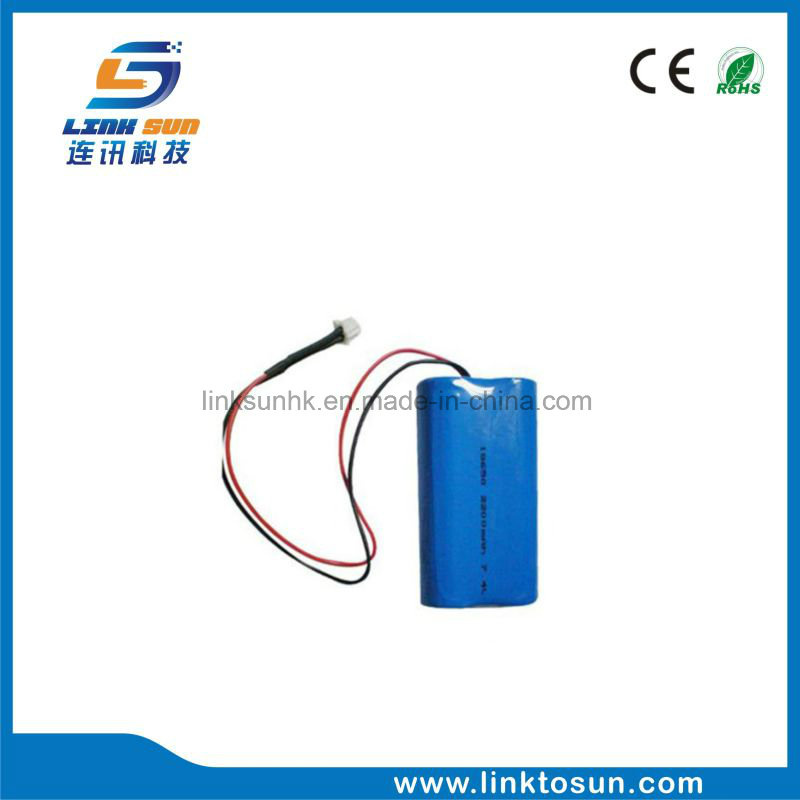

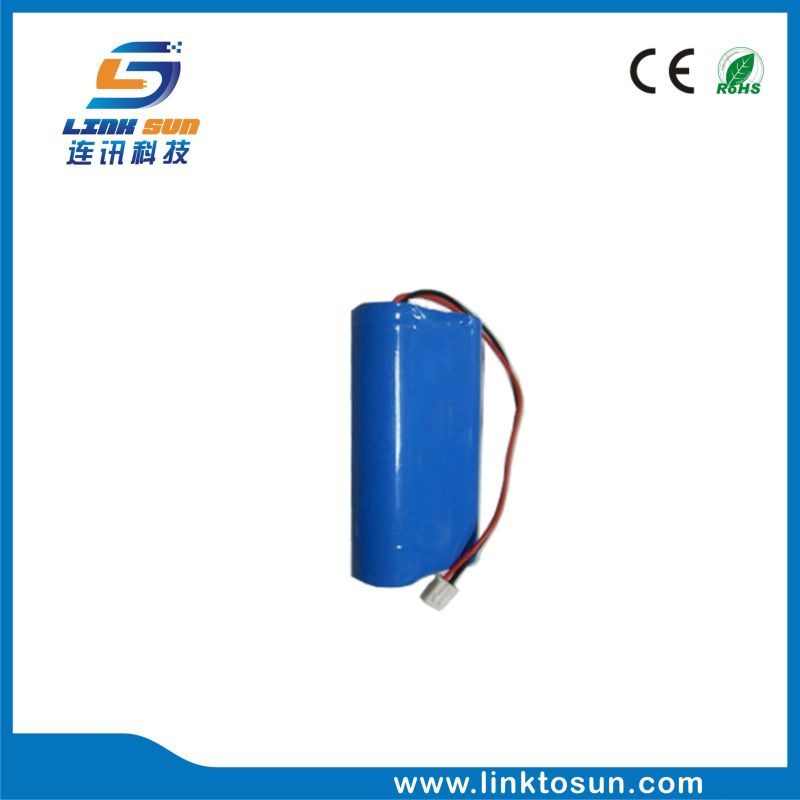

Rechargeable 2s1p 7.4V 2200mAh Li-ion Battery Pack

Name: Rechargeable 2s1p 7.4V 2200mAh Li-ion Battery Pack
Brand: all-electronics-online.com
SKU: 731948712
Availability: InStock
Rating: 4.8 (119 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Combination:	2s1p
Cell:	18650
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel

Product Description

High performance 7.4V 2.2Ah volt lithium ion battery

Nominal Voltage	7.4V
Nominal Capacity	2.2Ah
Cell Material	Li(NiCoMn)O2
Weight	0.09kg
Outside dimension	customized
Working discharge current	Max 2A
Connector	JST XH-3Pinr
Assembly Mode	2S1P
With BMS/PCB	Yes,regular version or customized
Over charge protection	Yes
Over discharge protection	Yes
Over current protection	Yes
Short Circuit protection	Yes
Temperature protection	Yes
UART/CANBus	Optional
Cell balancing function	YES
Deep sleep function	Optional
Pollution-free	Yes
Memory effect	No
Charge Method	CC-CV
Operation Temperature	Charge:0-45^oC
Operation Temperature	Discharge:-20-60^oC

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
