| Prod Model: |
As-3.2V 100Ah |
| Capacity: |
100ah LiFePO4 Battery |
| Battery: |
LiFePO4 |
| MOQ: |
1PC |
| Weight: |
3.2kg |
| Cycle Life: |
2000 Times |
| Dimension: |
64*142*218mm |
| Warranty: |
36 Months |
| Certificate: |
Ce/ISO9001/ISO14001/UL |
| Model Number: |
LiFePO4 As64142218 |
| Type: |
Lithium-Polymer Battery Pack |
| Connection Mode: |
Series and Parallel |
| Rated Capacity: |
100ah |
| Standard Voltage: |
3.2V |
| Usage: |
Solar System |
| Electrolyte: |
Li Ion |
Product Description

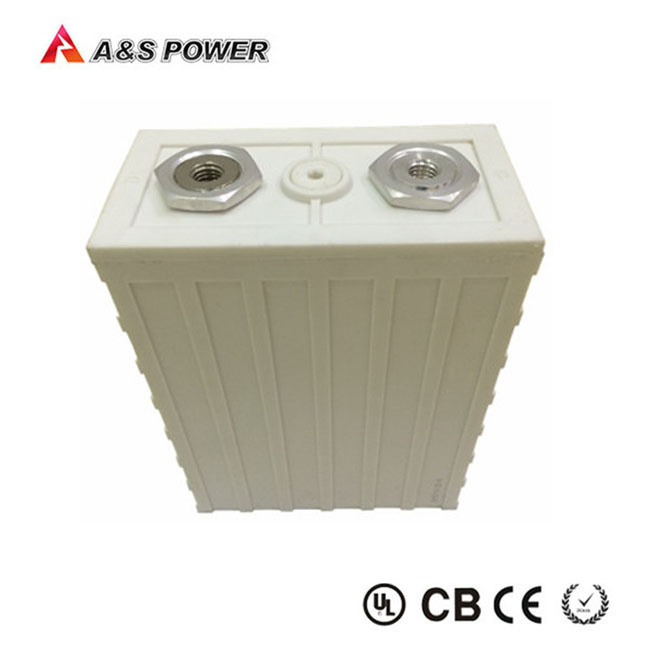

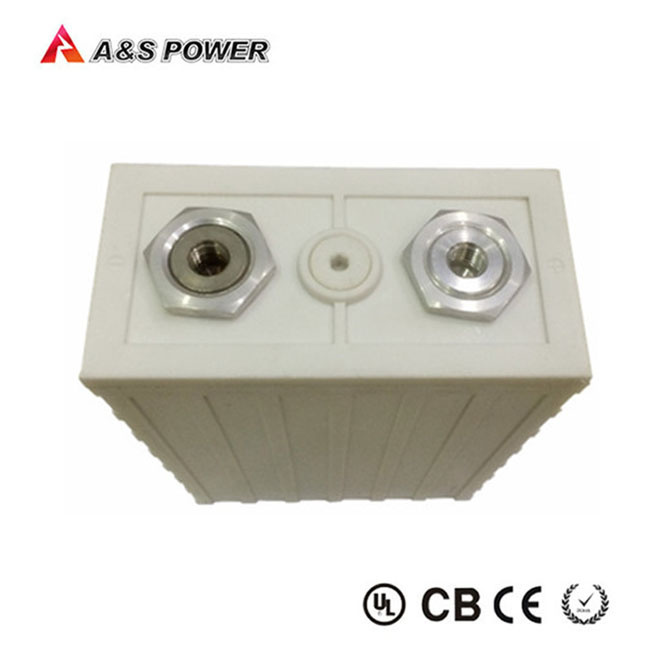

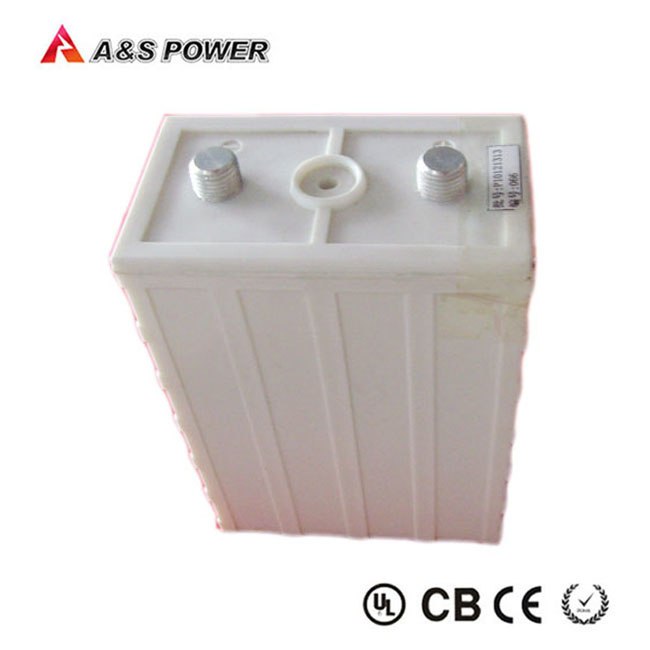

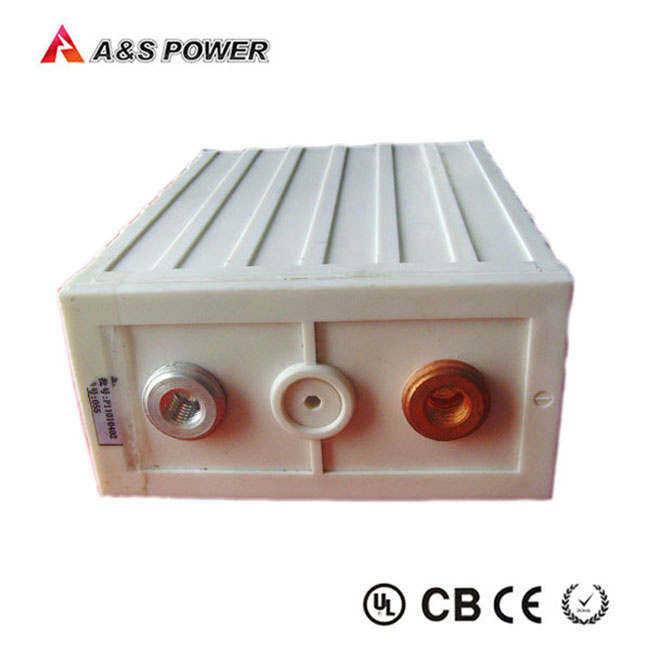

Rechargeable 3.2V 100AH LiFePo4 lithium battery pack for solar system
Product Specification:| NO | Item | Unit | Parameters | Remark |
| 1 | Nominal Capacity | A | 100 | Capacity according to standard discharge, after standard charge |
| 2 | Norminal Voltage | V | 3.2 | Average voltage according to stardard discharge, after standard charge |
| 3 | Charge Type | / | CC/CV | / |
| 4 | Charge Voltage | V | 3.65 | / |
| 5 | Discharge cut-off Voltage | V | 2.5 | / |
| 6 | Charge current | A | 30 |
constant current |
| Max charge current | 100 |
| 7 | Discharge current | A | 60 |
constant current |
| 8 | Max.contimuous discharge current | A | 100 | <15s |
| 9 | Weight | g | 3200 | / |
| 10 | Inner Resistance | mΩ | <2 | / |
| 11 | Dimension(T×W×H) | mm | 71*182*279 | / |
| 12 | Working Temperature | Charging | °C | 0~45 | / |
| Discharging | °C | -20~60 |
13
| Storage Temperature | 1 month | °C | -20~60 | / |
| 2 months | °C | -20~45 |
| 3 months | °C | -20~25 |
| Atmospheric pressure | kPa | 86~106 | / |
| Relative Humidity | RH | 25%~85% | / |
Product Discription :1) Environmental friendly.
2) High density of energy.
3) High capacity.
4) Fast charging.
5) Safety in use.
6) Long cycle life, chargeable up to 2000 times
7) No memory effect.
8) Doesn't contain Mercury, No fire, No explosion, No leakage.
9) High temperature resistance.

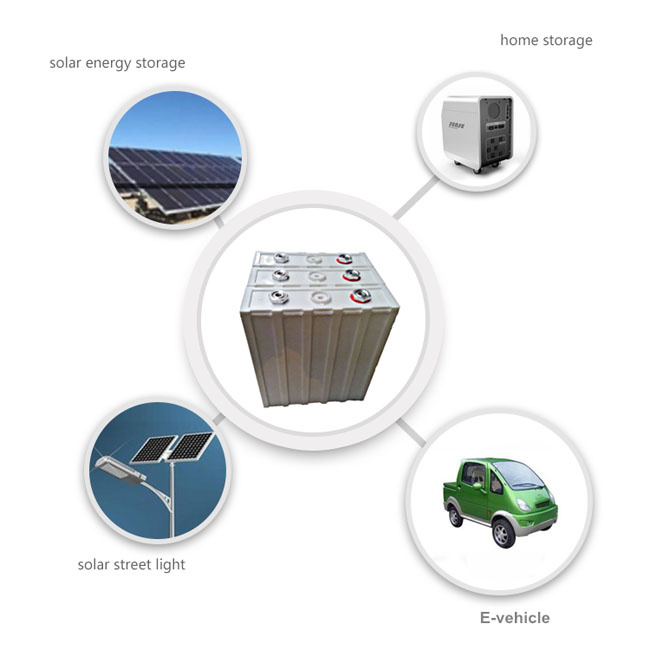

10) Stable discharge platform , it is can support large current and high power to charging and discharging.Welcome to conatct us to advise us your required information about battery and asking for detail specification document for reference.Major Applications:1) Solar energy storage,home storage ,E-vehicle products.2) Widly applied in solar street light,wind energy storage ,UPS and telecommunication power supply, photovoltaic power station etc.
Packing Specification:
Shipping Specification: | Shipping |
| Destination | Normally arrive port time in working days |
| Ship by express | Ship by sea | Ship by air |
| North America | 3-7 days | 15-28 days | 5-7 days |
| South America | 3-7 days | 15-30 days | 5-7 days |
| European | 3-7 days | 20-30 days | 5-7 days |
| Africa | 3-7 days | 45-50 days | 5-7 days |
| The Middle East | 3-7 days | 15-30 days | 3-5days |
| Australia | 3-7 days | 10-20 days | 5-7 days |
Our Services:Low Risk Promise
1) For lithium polymer battery, we can provide 5pcs free samples and buyers pay the shipping cost, for the model in our stock, we can send out within 5 days.
2) For order over 2000pcs, Buyer gets a cash coupon of 50 USD for next order.
3) For order over 10000pcs, Buyer gets a cash coupon of 100 USD for next order.Our Cooperative Policy:1) Making the sample until you are satisfied with it.
2) Offering professional one-on-one service and replying your E-mail within three hours.
3) Shipment sample for checking before shipment.
4) Priority to get the our latest product information after our cooperation.Adavantages:1) Green product.
2) Long standby time.
3) One year warranty.
4) Excellent safety performance.
5) Excellent storage performance and low self-discharge rate.
6) Short circuit testing passed.
7) Overcharge testing passed.
8) Over discharge testing passed.
9) 150C thermal shock test passed.
10) 150C thermal shock test passed.Application:1) MP3/MP4 player, Bluetooth, speakers, car GPS and all possible electronics products.
2) Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.Company Information:A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery, LiFePO4 battery and E-bike batteries.
Company Overview:Established : 2001
Capital:20,000,000.00 RMB
Location: Dongguan,Shenzhen
Employee: >600
Daily output: 100K Li-Poly, 50K LiFePO4, 80K Li-ion 18650
FAQ:1. Q:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: Honestly, it depends on your order quantity and the season you place the order. We suggested t hat you start inquiry two months before the date you would like to get the products at your country.
4. Q: What is your terms of payment?
A: We accept T/T and L/C.THANK YOU FOR WATCHING
Shenzhen A&S Power Technology Co., Ltd, a OEM rechargeable battery manufacturer in China over 10 years. Specialized in LiFePO4 battery, lithium polymer battery and Li-ion Battery pack. Our products are widely used in popular electronic products, such as Bluetooth Headset, Portable Speakers, consumer products, emergency light, GPS, digital player, solar & wind energy storage, electronic auto and E-bus.

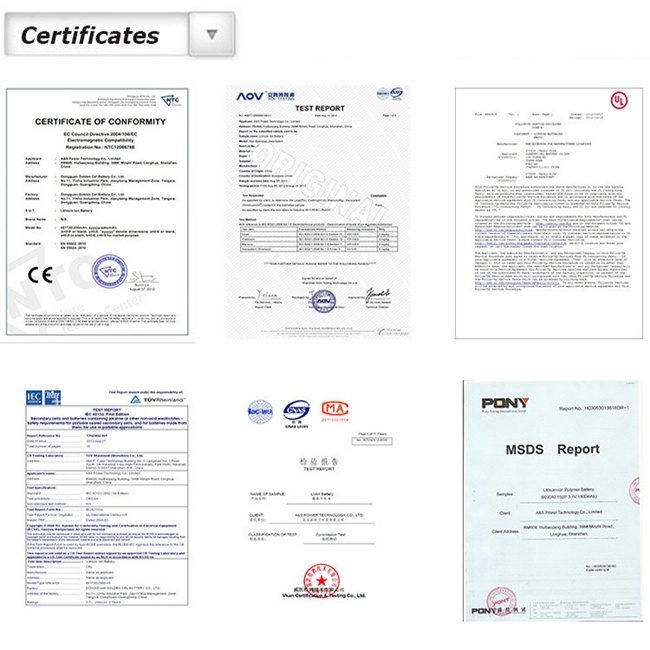

A&S Power has well presence in international fairs each year, such as CEBIT, HK Electronic Fair. We strictly implement the international management standards and have established a complete quality assurance system. So it's no wonder that our products got CE, UL, IEC62133, RoHS certification. We have succeeded in selling our batteries to the international markets of America, Canada, Europe, Africa, middle-east and South Asia. As responsibility and experienced manufacturer, A&S Power is officially recognized by Philips, Mitel. We use "People oriented, Quality first, Keeping improving" as our mission statement, which makes us improve quality, reduce cost and enhance services constantly. We pay more attention to the market change, client needs, safety & environmental protection and take the responsibility of the society. A&S Power dedicates to creating the life stage of employees and supplying lithium batteries welcomed by customers in the world. With passion and faithfulness, we dedicated to establish win-win business and striding forward to create a bright future for your esteemed company.
