| Prod Model: |
3.2v 10Ah lifepo4 battery |
| Application: |
Electric Car/Solar Energy Storage |
| Certification: |
Ce/UL/Un etc |
| Cycle Life: |
>2000times |
| Warranty: |
3 -5years |
| Service: |
OEM/ODM |
| Weight: |
2.2kg |
| PCB: |
Over-Charge,Over-Discharge,Short Circuit etc |
| PVC: |
Added by Customer's Enquirements |
| Connector: |
Customer's Pointed, Melex, Jst etc |
| Samples For Testing: |
Available |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Solar System etc |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
3.2V |
| Electrolyte: |
LiFePO4 |
Product Description
Rechargeable 3.2V 10Ah Lifepo4 Battery for Home Power Storage
Product Description1.Model: AS-3.2V-10Ah
2:Voltage:3.2V
3:Capacity:10Ah
4.For Electric Car and Solar energy storage
Parameter Table
| Item | Rating | Note |
3.1 Capacity | Typical | 10Ah | Discharge: 0.2CmA |
| Minimum | 9.8Ah |
| 3.2 Nominal Voltage | | Average 3.2V | |
| 3.3 AC Impedance Resistance≤3mΩ | | ≤15mΩ | |
| 3.4 Discharge Cut-off Voltage | | 2.5V | |
| 3.5 Charge Current | | 2A | Standard Charge |
| 3.6 Charge Voltage | | 3.65V | |
| 3.7 Charge time | | Approx 6h | Charge: 0.2CmA |
| 3.8 Max. Charge Current | | 10A | |
| 3.9 Continuous Discharge Current | | 20A | |
| 3.10. Max discharge current | | 30A | |
| 3.11 Weight | | Approx 300g | |
3.12 Operating Temperature
| Charge | 0~+45ºC | |
| Discharge | -20~60ºC |
3.13 Storage Temperature
| less than1 month | -20~45ºC | Recommended storage
temperature: 20ºC,at the
shipment state
|
| less than 6 months | -20~25ºC |
| 3.2V 10AH 15AH 20AH 50AH 100AH 180AH 200AH LFP LiFePO4 Battery Cells |
| Model | Voltage / Capacity | Dimension | Weight | Type |
| 1868117 | 3.2V / 10Ah | 18*68*117mm | 0.3KG | LiFePO4 Battery Cell |
| 27070130 | 3.2V / 15Ah | 27*70*130mm | 0.48KG | LiFePO4 Battery Cell |
| 27070165 | 3.2V / 20Ah | 27*70*165mm | 0.6KG | LiFePO4 Battery Cell |
| 36115185 | 3.2V / 50Ah | 36*115*186mm | 1.5KG | LiFePO4 Battery Cell |
| 67142218 | 3.2V / 100Ah | 70*150*225mm | 3.2KG | LiFePO4 Battery Cell |
| 71182279 | 3.2V / 180Ah | 71*182*279mm | 5.6KG | LiFePO4 Battery Cell |
| 71182279 | 3.2V / 200Ah | 71*182*279mm | 5.8KG | LiFePO4 Battery Cell |

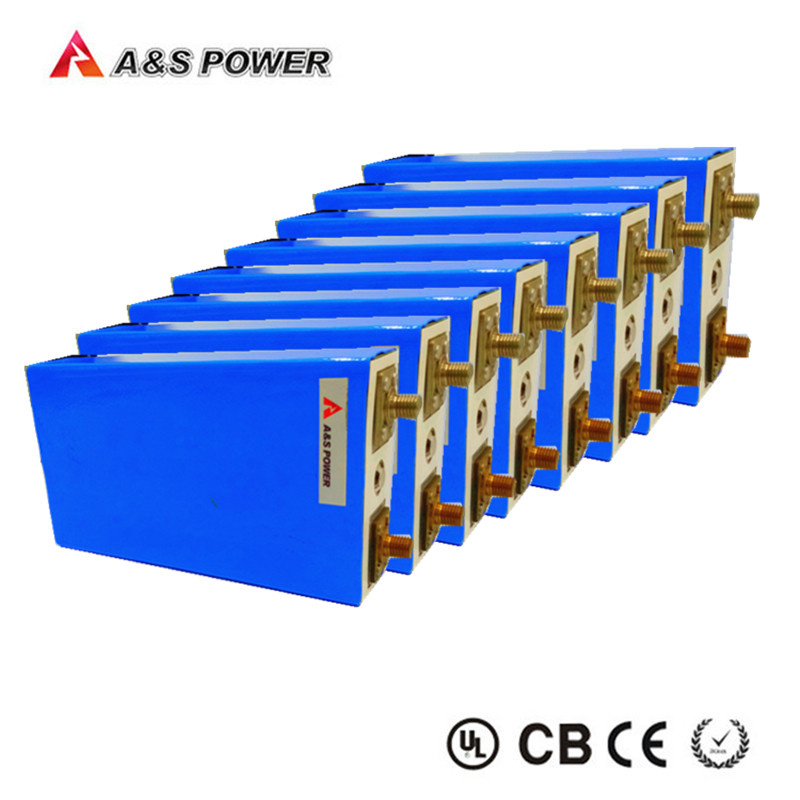

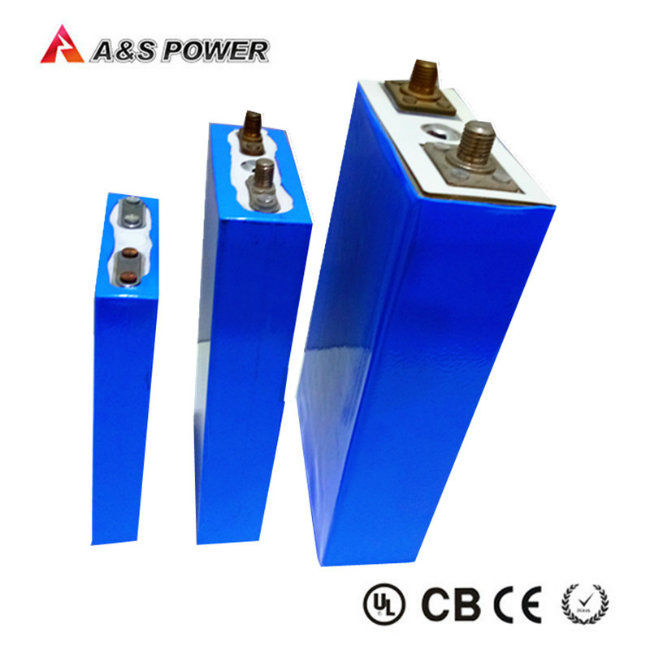

Product Pictures
Main applications:
* Communication: back-up electric supply, interphone
* Eletric vehicles: electric bicycle (E-bike), golf cart , electric wheelchair, E-car and E-bus
* Power tools: electric cropper, electric drill, electric saw, electric hammer
* Illuminate devices: solar battery, miner lamp, solar power lamp, emergency light, electric torch.
* Portable office devices: Laptop, PDA, portable electrograph, portable printer
* Video devices: Portable DVD , portable television
* Others: R/C model, toy, small home appliance
Company Information
A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery, LiFePO4 battery and E-bike batteries.
Company Overview
- Established : 2001
- Capital: 20,000,000.00 RMB
- Location: Dongguan,Shenzhen
- Employee: > 600
- Daily output: 100K Li-Poly, 50K LiFePO4, 80K Li-ion 18650
Company Profile
Low Risk Promise
1.For lithium polymer battery, we can provide 5pcs free samples and buyers pay the shipping cost, for the model in our stock, we can send out within 5 days.
2.For order over 2000pcs, Buyer gets a cash coupon of 50 USD for next order
3.For order over 10000pcs, Buyer gets a cash coupon of 100 USD for next order
Our cooperative policy
1. Making the sample until you are satisfied with it.
3. Offering professional one-on-one service and replying your E-mail within three hours
4. Shipment sample for checking before shipment.
5. Priority to get the our latest product information after our cooperation
Advantage
1. Environmental friendly
2. High density of energy
3. Light weight
4. Low self-discharge
5. Low internal resistance
6.Long cycle life, chargeable up to 2000 times
7. No memory effect
8.Doesn't contain Mercury, No fire, No explosion, No leakage
