| Prod Model: |
LP0037-2200-L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery Type: |
18650 Cell |
| Voltage: |
3.7V |
| Capacity: |
2200mAh |
| Warranty: |
One Year |
| Delivery Date: |
15days |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Singel |
Product Description

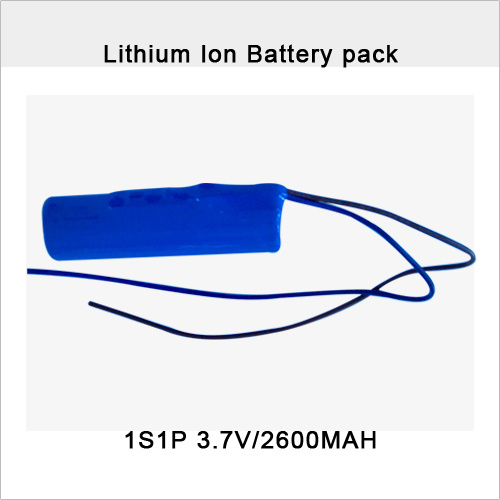

Rechargeable 3.7V 2.2AH Lithium-ion battery pack1)Safe & reliable
2)12 months warranty
3) import cell
AdvantagesHigh energy density
Potential for yet higher capacities.
Relatively low self-discharge
Self-discharge is less than half that of nickel-based batteries.
Low Maintenance
No periodic discharge is needed; There is no memory.
· Very low profile
Batteries resembling the profile of a credit card are feasible.
· Flexible form factor
Manufacturers are not bound by standard cell formats. With high volume, any reasonable size can be produced economically.
· Lightweight
Gelled electrolytes enable simplified packaging by eliminating the metal shell.
· Improved safety
More resistant to overcharge; Less chance for electrolyte leakage.
Application:Lithium ion provide long lasting energy for portable equipment and other devices such as:
1. Portable equipment: Laptop, camcorder, PDA, Digital camera, portable DVD etc.
2. Home appliances: Two-way radio, Walkie-talkie, Electric toys, Electric bicycles, Emergency lighting
3. Military equipment: IR telescope
4. Telephone switchboard, electric equipments, power instruments and meters
5. Uninterrupted power source (UPS) for computer, Emergency Application, Medical devices
6. Power transmission and transformer station, switch-control, and accident lighting
7. Fire fighting, safety device, and alarm monitoring
8. Automatic office system
9. Radio communication system
10. Emergency lighting and car/ship starting system
11. Portable electric appliances and mining system
12. Traffic and navigation signal lamp
13. Solar Energy: Solar Street lights, Solar Led Lights
Storage:1. Use at temperature below 40° C, charge fully prior to long storage periods or if it has been stored for more than three months
2. If you find any single battery voltage is under 2V at room temperature, the battery has been over-discharged or is self-discharging due to some defect/parasitic load. Discontinue use until the fault can be corrected and the battery be recharged
3. Store in an open, well ventilated, dry, clean area, between -20° C to 40° C for maximum life. Self-discharge will accelerated at higher temperature
4. Don't expose the battery to extremes of temperature over 60° C, directly to sources of heat, direct sunlight or moisture and/or rain
Other:1, OEM orders are welcome
2, Tags, plugs and connectors are available.
3, Superior quality and cost-performance ratio
4, We could design and develop Li-ion battery per customer's product working
Performance & structural appearance| Rechargeable 3.7V 2.2AH Lithium-ion battery pack |
| Product name | 3.7V 2200mAh li-ion battery pack |
| Model | |
| Cell assembled mode | Samsung 18650 3.7V/2200mAh |
| Chemistry | Li-ion |
| Configuration | 1S1P |
| Norm voltage | 3.7V |
| Max charge voltage | 4.2V |
| Storage conditions | Temperature: -20~60 deg. C |
| Humidity: 45 ± 10%R. H |
| Over charge detection voltage | 4.25V/cell |
| Over discharge detection voltage | 2.5V/cell |
| Over current protection | According to customer requests |
| Max continuous charge current | 2A |
| Max continuous discharge current | 2A |
| Cycle life | ≥ 500times |
| Dimension | Flexible |
| Weight | 80g |
Quality is our priority, win by quality" which is the origin of the our company name --Quawin.
We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.
As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.
We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.
We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.
To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
