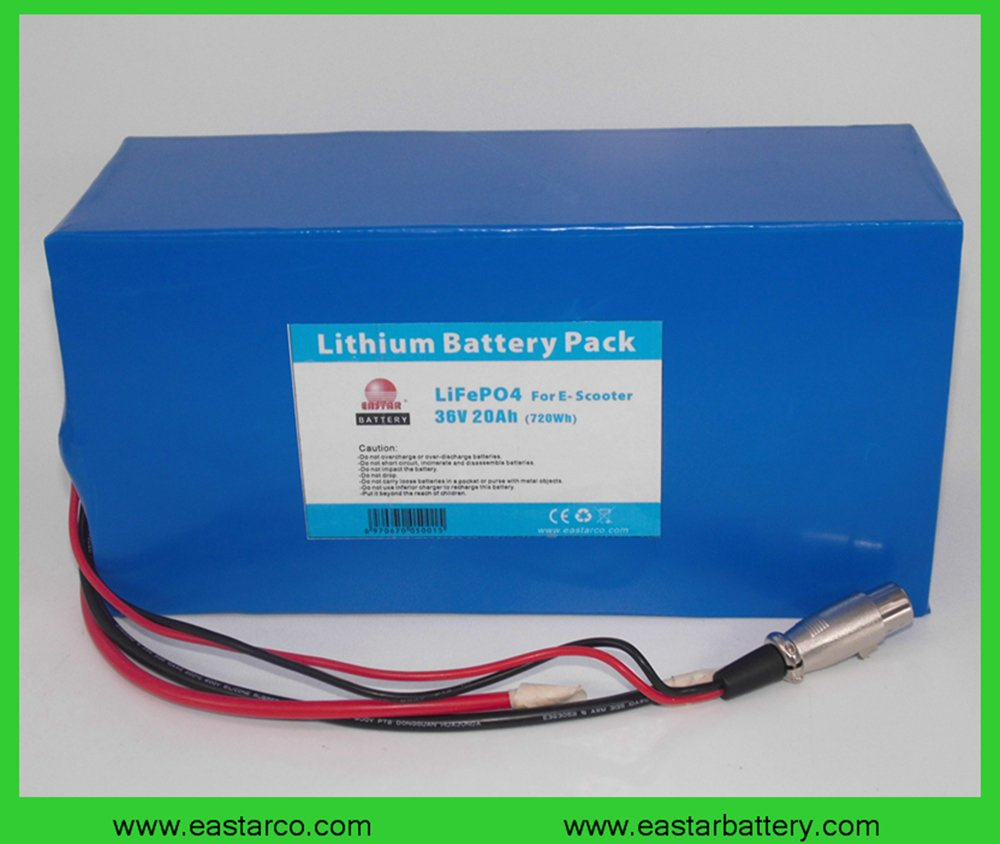

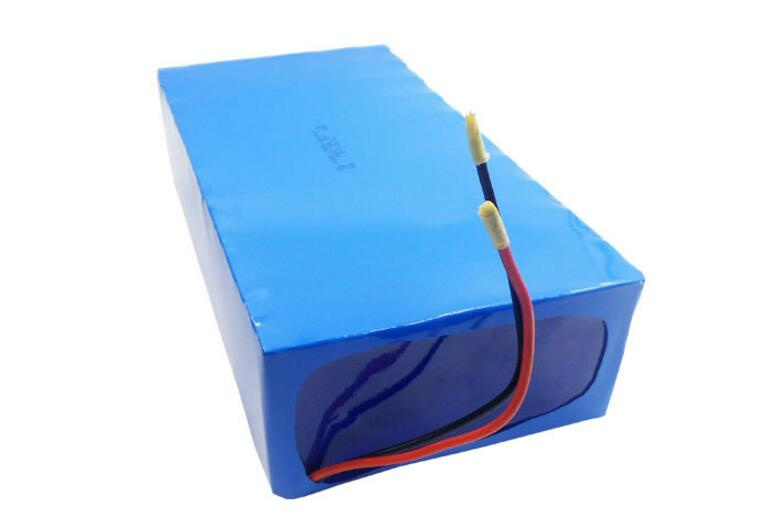

Rechargeable 36V 20ah Lithium LiFePO4 Battery Pack with Ce Approved

Name: Rechargeable 36V 20ah Lithium LiFePO4 Battery Pack with Ce Approved
Brand: all-electronics-online.com
SKU: 833743205
Availability: InStock
Rating: 4.4 (58 reviews)

Price:	US $ 189.99/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	lifePo4
Voltage:	36V
Capacity:	20ah
Warranty:	1 Year
Certificate:	Ce, UL, ISO9001, ISO14001)
Cycle Life:	Over 2000times
Connection Mode:	Series and Parallel
Type:	LiFePO4 Battery
Discharge Rate:	Available
Size:	Customize
Rated Capacity:	20ah
Standard Voltage:	36V
Usage:	Electric Scooter
Electrolyte:	Organic Electrolyte

Product Description

rechargeable 36V 20ah lithium LiFePO4 Battery Pack with Ce Approved

Advantages:
1. High discharge rate.
2. Light weight, smaller size.
3. High power.
4. High-temperature working capability.
5. Steady discharge and charge performance.
6. Low self discharge, Longer life, High safety. No memory effect.
7. Green products, non explosive, environmental friendly.

Packing	36V 20Ah LiFePO4 rechargeable battery Module is made of 72pcs LiFePo4 3300mAh cylindrical 26650 cell in 12S6P configuration. Protected by 1pc PCM located on the top.
Voltage	Voltage: 36 V (working) 38.4 V (peak)
Capacity	20Ah (768 Wh)
Cycle life	> 2000 cycles (80% of initial capacity @ 0.2C rate, IEC Standard)
Protection	One PCM installed with the battery pack and protects the battery from Overcharge Over discharge Over drain Short circuits Must wait min of 30 minutes after battery is fully charged to allow the PCM to perform balance function on all the cells within the pack.
Charge Mode	CC, CV
Discharge rate	15A Max
Max. Discharging Rate	70A limited by PCM
Dimensions (LxWxH)	300mm x 175mm x 105mm or customize
Weight	6500g
Smart Tips	You may choose our Smart Charger (4.0 A) for 36V LiFePO4 Battery Packs . The estimated charging time is 4-6 hours
Applications	Replace 36V NiMH or Lead acid battery pack with lighter weight and longer cycle life Considering 2000 cycle life, LFP battery is much cheaper than NiMH and Lead acid battery

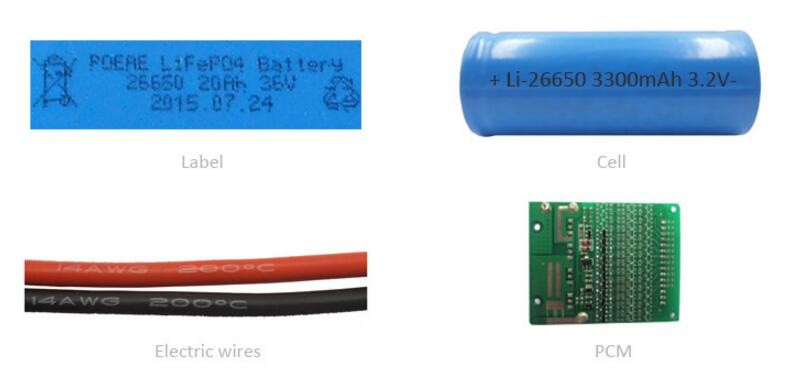

Detail Photo

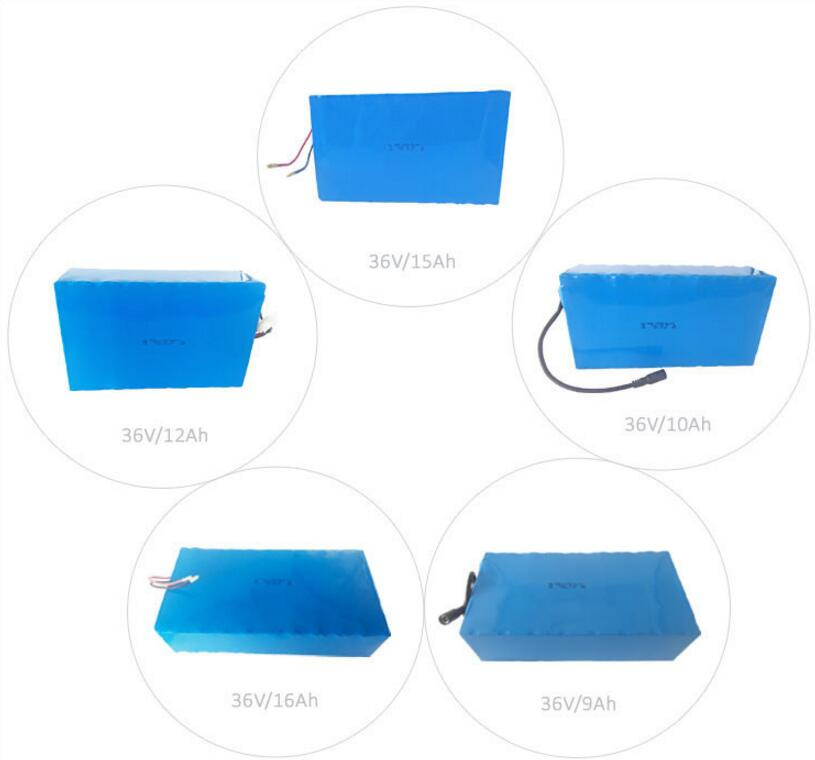

Related Products

Application

This series of above lithium batteries can be widely used in:

Military flashlights, electrical equipment, color changing light for the stage, pipline construction machine, X-ray machine, electric tools, industrial weighing machinery, fire-fighting equipment, electric vehicles, portable test instruments, …
