Rechargeable 48V 200ah Battery Pack with BMS

Name: Rechargeable 48V 200ah Battery Pack with BMS
Brand: all-electronics-online.com
SKU: 780397815
Availability: InStock
Rating: 4.5 (99 reviews)

Price:	US $ 2823.53-3325.2/Piece
Trade Terms:	FOB,EXW,others
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-48-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cycle Life(1c/80%):	More Than 2000times
Certification:	CE, UL, RoHS, Tlc, PSE, Ts16949
Working Temperature Range:	-20--60degrees Celsius
Weight:	About 125kg
Battery Type:	48V 200ah LiFePO4 Battery
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Size:	Customized
Rated Capacity:	50ah
Standard Voltage:	48V
Usage:	Energy Storage Battery
Electrolyte:	LiFePO4

Product Description

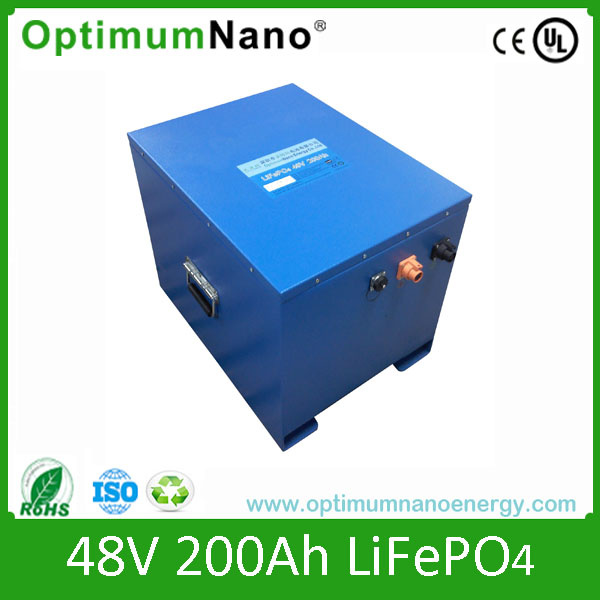

Deep cycle 48V 200Ah rechargeable battery

The LiFePO4 battery advantages:
A. Safety
The chemical structure of LiFePO4 is very stable

B. Long life cycles
>2000 times cycle life at 0.1C-1C discharge/charge rate

C. High energy density
Energy density: 135 Wh/kg
Weight: 1/3 of lead acid, 2/3 of Ni-MH
Volume: 2/3 of lead acid

D. Wide range Temperature Adaptability
Working temperature range: -20° C--60° C

E. Fast charge
1C standard charge and discharge, above 93% of the capacity during 3.3~3.2V platform

F. Low self-discharge
Self-discharge<3%(month), while the monthly self discharge of sealed lead acid battery is 10%.

G. Environment friendly
Optimum LiFePO4 battery has great efficiency for energy conservation and emission reduction,
Without any hazardous and noxious substances

Main datasheet:

Basic Specification of 48V 200Ah Battery PACK
Nominal Capacity	200Ah	Cell Configuration	16S4P
Rated Voltage	48V	Total Cell Quality	64pcs
Discharge Cut-off Voltage	40V	BMS	YES
Charge Cut-off Voltage	58.4V	Dimensions(mm)	677±1412±1268±1
Charge Current	70A	Weight (including case)	about 115kg
Continuous Discharge Current	100A	Charge Temperature Range	0°C~45°C
Peak Discharge current	200A	Discharge Temperature Range	-20°C~60°C
Cycle Life (100% DOD)	2000 cycles	Charge Method	CC/CV

------Packaging & Delivery

Packing case: wooden case
Delivery Detail: 15-25days
Warranty: 2years

Shipping & Payments

Shipping and handling:
Item location: Shenzhen, Guangdong, China (Mainland)
Shipping to: Worldwide
Payments: T/T in advanced

-----Why do you choose us?
Quick response to clients' enquiries within 24hrs
Tailor-made solution provided by our experienced team and professional engineers.
More than 12 years experience in producing battery products for various application.
Value quality and long-term cooperation to reach win-win relationship.

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
