| Prod Model: |
TL630 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
70*47*101/107(Mm) |
| Weight: |
0.59kg |
| Color: |
Black/ White/ Grey |
| Company Type: |
Factory |
| Container Material: |
ABS |
| Configuration: |
F1.3b2+/2- |
| Internal Resistance: |
40m Ohm |
| Max Discharge Current: |
45A(5s) |
| Norminal Voltage: |
6V3ah |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
6V |
Product Description

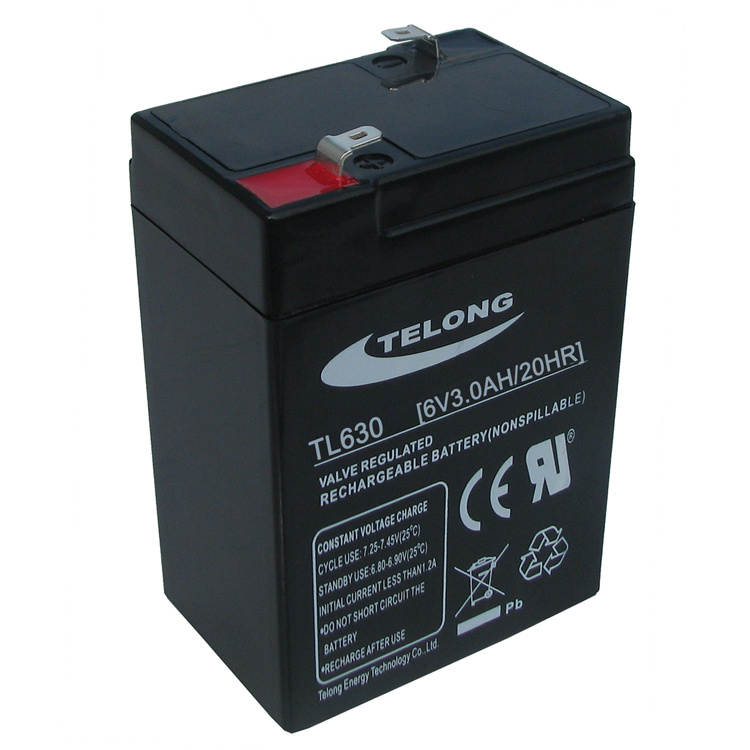

6v3ah 6v4ah 6v4.5ah battery for emergency lighting battery Sealed Maintenance Free Rechargeable Battery
Model Number: TL630
Product Description
1. General features
-Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
-Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
-UL-recognized component.
-Can be mounted in any orientation.
-Computer designed lead, calcium tin alloy grid for high power density.
-Long service life, float or cyclic applications.
-Maintenance-free operation.
-Low self discharge.
-Inside the battery is equipped with 25 amp fuse
2. Applications
Our VRLA Battery are widely used telecommunication equipment, solar panel, wind power system, UPS, Emergency lights, security equipments, baby carrier etc.
3. Notice
- Don't put the battery exposed or lost in the fire.
- Don't connect wrong terminals when charging.
- Avoid shorting the battery circuit.
- Avoid excessive physical shock or vibration.
- Don't disassemble or deform the battery.
- Keep out of the reach of children.
- Never use a modified or damaged charger.
- Store the battery in a cool, dry and well-ventilated area.
- Regulations vary in different countries, dispose of in accordance with local regulations.
4. More information, pls visit our website or contact me
http://www.sztlg.com/
http://tlgbattery.en.made-in-china.com/
| No. | Model No. | Rated Voltage
(V) | Rated Capacity
(AH) | Form Factor(mm) | Terminal | Weight
±4%(Kg) |
| L | W | H |
| mm | mm | mm | Type | Kg |
| 1 | TL430 | 4 | 3 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 2 | TL435 | 4 | 3.5 | 90 | 34 | 66 | F1/F2 | 0.45 |
| 3 | TL445 | 4 | 4.5 | 47 | 47 | 100 | F1/F2 | 0.5 |
| 4 | TL460 | 4 | 6 | 47 | 47 | 100 | F1/F2 | 0.55 |
| 5 | TL612 | 6 | 1.2 | 98 | 25 | 56 | F1 | 0.3 |
| 6 | TL623 | 6 | 2.3 | 43 | 37 | 76 | F1 | 0.33 |
| 7 | TL628 | 6 | 2.8 | 66 | 33 | 100 | T1 | 0.55 |
| 8 | TL632 | 6 | 3.2 | 134 | 34 | 67 | T1 | 0.65 |
| 9 | TL630 | 6 | 3 | 70 | 47 | 100 | T1 | 0.63 |
| 10 | TL635 | 6 | 3.5 | 70 | 47 | 100 | T1 | 0.67 |
| 11 | TL640 | 6 | 4 | 70 | 47 | 100 | T1/T8 | 0.67 |
| 12 | TL645 | 6 | 4.5 | 70 | 47 | 100 | F1 | 0.73 |
| 13 | TL650 | 6 | 5 | 70 | 47 | 100 | F1/F2 | 0.73 |
| 14 | TL660 | 6 | 6 | 70 | 47 | 100 | F1/F2 | 0.82 |
| 15 | TL670 | 6 | 7 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 16 | TL680 | 6 | 8 | 151 | 34 | 100 | F1/F2 | 1.16 |
| 17 | TL6100 | 6 | 10 | 151 | 50 | 100 | F1/F2 | 1.55 |
| 18 | TL6120 | 6 | 12 | 151 | 50 | 100 | F1/F2 | 1.65 |
| 19 | TL1208 | 12 | .8 | 96 | 25 | 62 | T9 | .58 |
| 20 | TL1212 | 12 | 1.2 | 98 | 45 | 56 | F1 | .55 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
